CRANKSHAFT (MODEL H)
RM125 1986 (G) USA (E03)

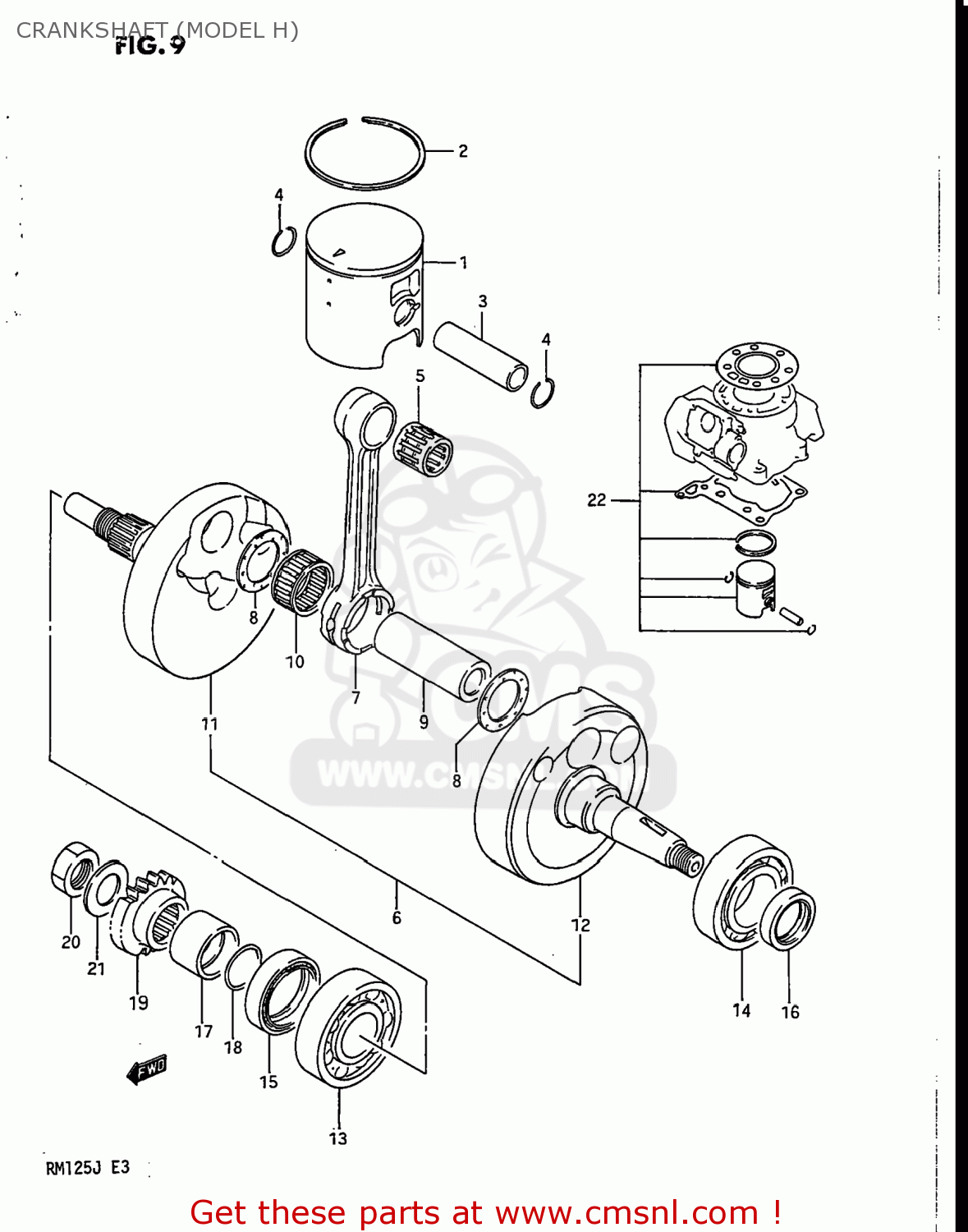

Crankshaft (model h) diagram RM125 1986 (G) USA (E03)
CRANKSHAFT (MODEL H) RM125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211001B360F0
ref: 1-1
12110-01B38-0F0
PISTON
€ 134.50
1-2
1211001B36025
ref: 1-2
12103-01820-025
PISTON
€ 100.00
1-3
1211001B36050
ref: 1-3
12103-01820-050
PISTON
€ 77.50
2-1
1214101B10
ref: 2-1
12141-01B11
RING,PISTON
€ 35.50
2-2
1214101B10025
ref: 2-2
12141-01B11-025
RING,PISTON (OS:0.25)
€ 13.00
2-3
1214101B10050
ref: 2-3
12141-01B11-050
RING,PISTON (OS:0.5)
€ 17.50
3
1215101B00
ref: 3
PIN,PISTON
€ 11.50
4
0938114001
ref: 4
RING,SNAP 14MM
€ 1.50
5
0926314024
ref: 5
BEARING(14X18X20)
€ 19.00
6
1220001B21
ref: 6
12200-01B22
CRANKSHAFT ASSEMBLY
€ 536.50
7
1216101B21
ref: 7
12161-12B01
CONNECTING ROD
€ 47.50
8
0916022010
ref: 8
WASHER(22X35X1)
€ 6.50
9
1221101B00
ref: 9
12211-27C00
PIN,CRANK
€ 30.50
10
09263220480C0
ref: 10
09263-22060
BEARING
€ 64.00
11
1222101B20
ref: 11
CRANKSHAFT,RIGHT
€ 134.50
12
1226101B20
ref: 12
CRANKSHAFT,LEFT
€ 132.00
13
0926222020
ref: 13
09262-22025
BEARING
€ 63.50
14
09262250700A0
ref: 14
BEARING(25X52X15)
€ 31.50
15
0928928007
ref: 15
SEAL,OIL(28X40X8)
€ 9.50
16
0928318005
ref: 16
09283-18006
OIL SEAL
€ 13.50
17
1235914500
ref: 17
SPACER,PRIMARY DRIVE GEAR
€ 14.50
18
0928020004
ref: 18
O RING(D:2.4,ID:19.8)
€ 3.00
19
2111140202
ref: 19
GEAR,PRIMARY DRIVE
€ 29.00
20
0914016019
ref: 20
NUT
€ 4.00
21
0916416002
ref: 21
WASHER
€ 3.00
22-1
1210001830
ref: 22-1
12100-01832
PISTON KIT (STD)
€ 134.50
22-2
1210001830025
ref: 22-2
12100-01832-025
PISTON KIT (OS:0.25)
€ 69.50
22-2
1210001830025
ref: 22-2
12100-01832-025
PISTON KIT (OS:0.25)
€ 69.50
