EXHAUST VALVE (MODEL H/J)
RM125 1986 (G) USA (E03)

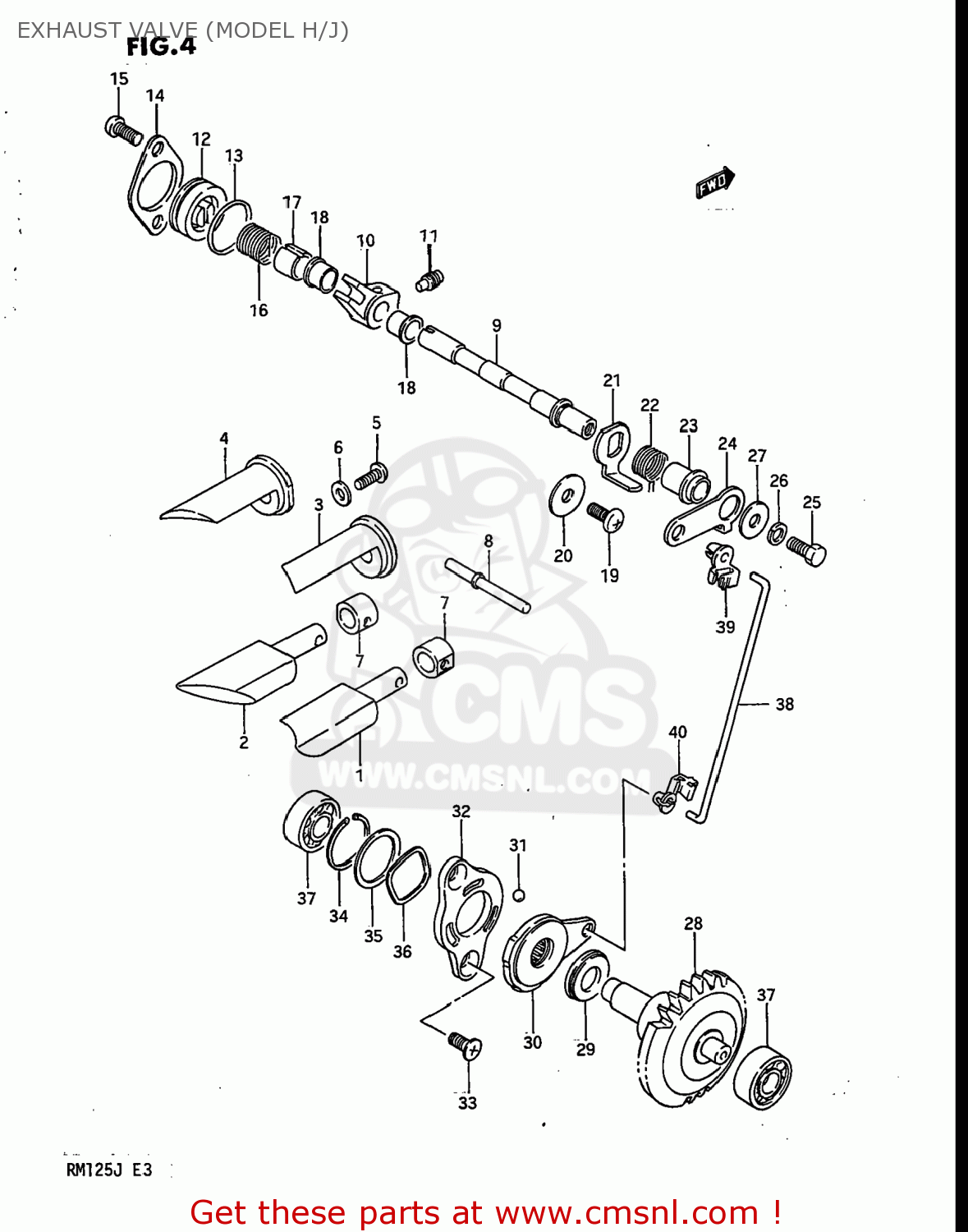

Exhaust valve (model h/j) diagram RM125 1986 (G) USA (E03)
EXHAUST VALVE (MODEL H/J) RM125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1125401B33
ref: 1-1
VALVE,EXHAUST,R
€ 123.50
1-2
1125401B40
ref: 1-2
VALVE,EXHAUST,R
€ 149.50
2-1
1125501B33
ref: 2-1
VALVE,EXHAUST,L
€ 122.50
2-2
1125501B40
ref: 2-2
VALVE,EXHAUST,LEFT
€ 139.50
3-1
1126101B32
ref: 3-1
11261-01B33
GUIDE,EXHAUST VALVE
€ 126.00
3-2
1126101B41
ref: 3-2
GUIDE,EXHAUST VALVE,R
€ 125.00
4-1
1126201B32
ref: 4-1
11262-01B33
GUIDE,EXHAUST VALVE LH
€ 105.00
4-2
1126201B41
ref: 4-2
GUIDE,EXHAUST VALVE,LEFT
€ 136.50
5
0211205128
ref: 5
02112-05127
SCREW
€ 2.50
6
0832221057
ref: 6
08322-01057
WASHER
€ 2.50
7-1
1126301B30
ref: 7-1
SPACER,EXHAUST VALVE
€ 14.00
7-2
1126300B20
ref: 7-2
11263-01B30
HOLDER,EXHAUST VALVE
€ 14.00
8
1125301B30
ref: 8
11253-01B32
PIN,EXHAUST VALVE. 43.6MM
€ 20.50
9
1125901B31
ref: 9
SHAFT,EXHAUST VALVE
€ 55.50
10
1126400B21
ref: 10
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
11
0913406011
ref: 11
09134-06013
SCREW
€ 4.50
12
1125801B00
ref: 12
11258-27C01
CAP,EXHAUST VALVE
€ 52.00
13
0928023002
ref: 13
O RING(D:1.9,ID:22.6)
€ 2.50
14
1126500B21
ref: 14
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
15
0211205128
ref: 15
02112-05127
SCREW
€ 2.50
16
0944416003
ref: 16
09444-16006
SPRING
€ 7.50
17
1126900B20
ref: 17
SPACER,EXHAUST VALVE SPRING
€ 19.00
18
0930108008
ref: 18
BUSH
€ 15.50
19-1
0211206108
ref: 19-1
02112-06107
SCREW
€ 1.50
19-2
0211206087
ref: 19-2
SCREW
€ 2.00
20
0821206201
ref: 20
WASHER
€ 1.50
21
1126700B20
ref: 21
11267-00B21
LEVER,EXHAUST VALVE NO
€ 5.50
22
0944415008
ref: 22
SPRING
€ 6.00
23
1126801B00
ref: 23
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
24
1126600B20
ref: 24
11266-00B21
LEVER,EXHAUST VALVE NO
€ 3.50
25
0110405126
ref: 25
01500-0512B
BOLT
€ 1.50
26
0832121056
ref: 26
08321-0105A
LOCK WASHER
€ 3.00
27
0916005017
ref: 27
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
28-1
1267001B10
ref: 28-1
12670-01B11
GOVERNOR ASSEMBLY,EXHAUST
€ 87.00
28-2
1267001B20
ref: 28-2
12670-27C00
GOVERNOR ASSEMBLY,EXHAUST
€ 87.00
29
0926310002
ref: 29
BEARING(10X22X2.8)
€ 8.50
30
1268001820
ref: 30
ACTUATOR,EXHAUST VALVE
€ 47.50
31
0611106003
ref: 31
BALL
€ 1.50
32
1268201B02
ref: 32
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
33
0212205128
ref: 33
09126-05003
SCREW 5X12
€ 2.50
34
0938019003
ref: 34
CIRCLIP
€ 2.50
35
0918119004
ref: 35
SHIM(19.1X25X0.3)
€ 4.00
36
0916419001
ref: 36
WASHER
€ 7.00
37
0926208005
ref: 37
BEARING(8X22X7)
€ 12.50
38
1268501B20
ref: 38
ROD,EXHAUST VALVE
€ 2.00
39
1268601B00
ref: 39
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
40
1268701B00
ref: 40
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
