CLUTCH
RM125 1988 (J) USA (E03)

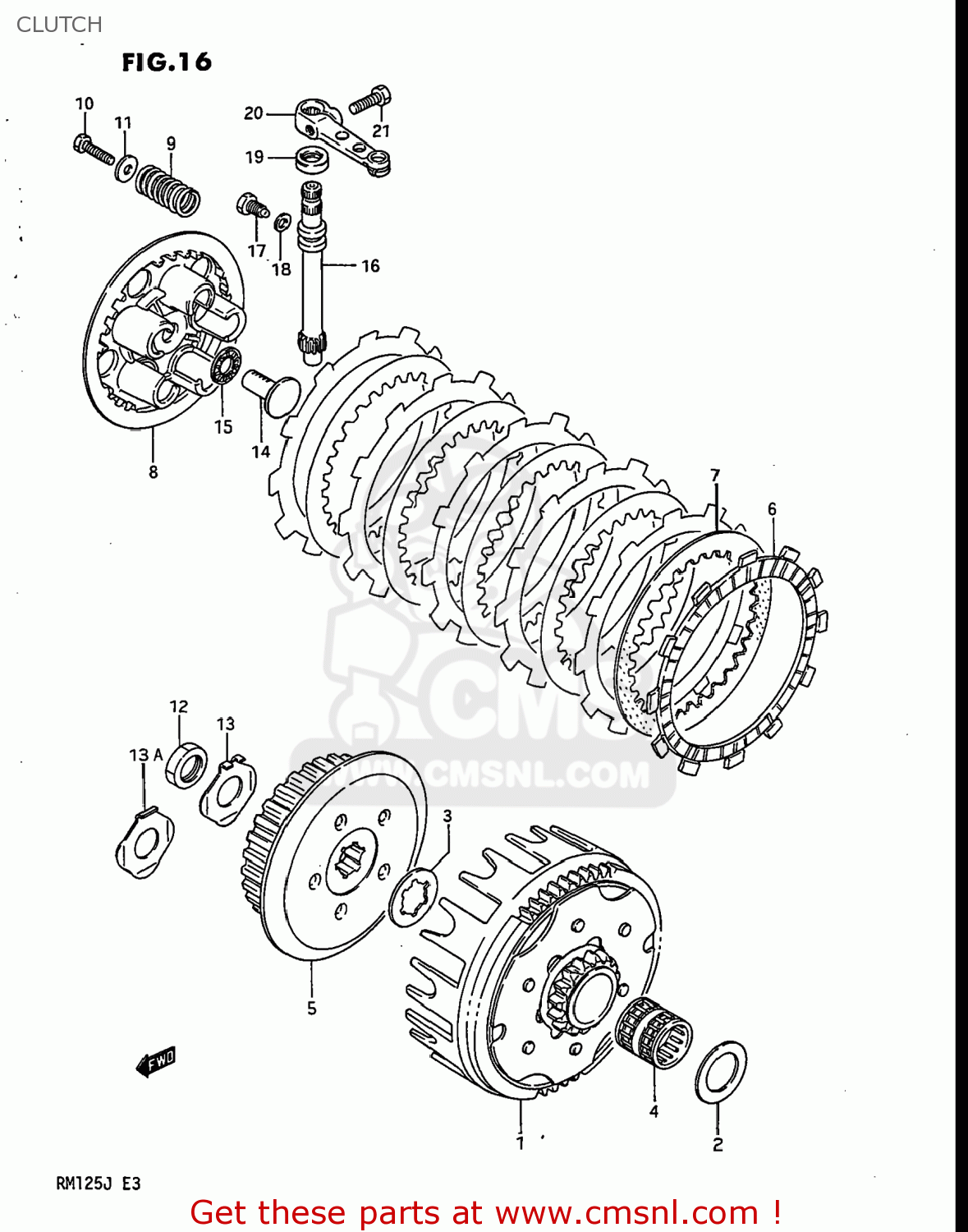

Clutch diagram RM125 1988 (J) USA (E03)
CLUTCH RM125 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120001B00
ref: 1-1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 202.00
1-2
2120001B40
ref: 1-2
GEAR ASSEMBLY,PRIMARY DRIVE
€ 195.50
2
0821120321
ref: 2
09181-20223
WASHER,THRUST
€ 3.00
3
0916720024
ref: 3
WASHER,LOCK
€ 3.50
4
0926320023
ref: 4
BEARING(20X25X26)
€ 15.00
5-1
2141001B00
ref: 5-1
21410-01B01
HUB COMP,CLUTCH SLEEVE
€ 52.50
5-2
2141001B40
ref: 5-2
21410-03D00
HUB,CLUTCH SLEEVE
€ 44.00
6-1
2144113A00
ref: 6-1
21441-13A01
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
6-2
2144101B00
ref: 6-2
21441-22A01
PLATE,CLUTCH DRIVE (MCA)
€ 11.00
7-1
2145128000
ref: 7-1
21451-19A00
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
7-2
2145101B40
ref: 7-2
PLATE,DRIVEN(T:1.4)
€ 4.50
8-1
2146201B00
ref: 8-1
DISC,CLUTCH PRESSURE
€ 17.00
8-2
2146201B40
ref: 8-2
DISC,CLUTCH PRESSURE
€ 47.50
9-1
0944015022
ref: 9-1
SPRING
€ 4.00
9-2
0944016009
ref: 9-2
SPRING
€ 5.00
10
0910005002
ref: 10
BOLT(5X16)
€ 2.00
11
0916005017
ref: 11
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
12
0914016027
ref: 12
NUT
€ 5.50
13
0916916005
ref: 13
WASHER
€ 2.50
13A
0916916006
ref: 13A
WASHER
€ 19.50
14-1
2316502B00
ref: 14-1
23165-44B01
RACK,CLUTCH RELEASE
€ 17.00
14-2
2316500B00
ref: 14-2
23165-44B01
RACK,CLUTCH RELEASE
€ 17.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2326120A00
ref: 16
23261-20A01
PINION,CLUTCH RELEASE
€ 35.00
17
0913506002
ref: 17
09135-06501
BOLT
€ 2.50
18
0916806004
ref: 18
GASKET(6.2X11X1).2 (NAS)
€ 1.50
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20-1
2327101B01
ref: 20-1
ARM,CLUTCH RELEASE
€ 21.00
20-2
2327120900
ref: 20-2
23271-20902
ARM,CLUTCH RELEASE
€ 20.50
21
0110706166
ref: 21
01500-0616A
BOLT
€ 2.00
