FRONT CALIPER (MODEL G)

RM125 1988 (J) USA (E03)

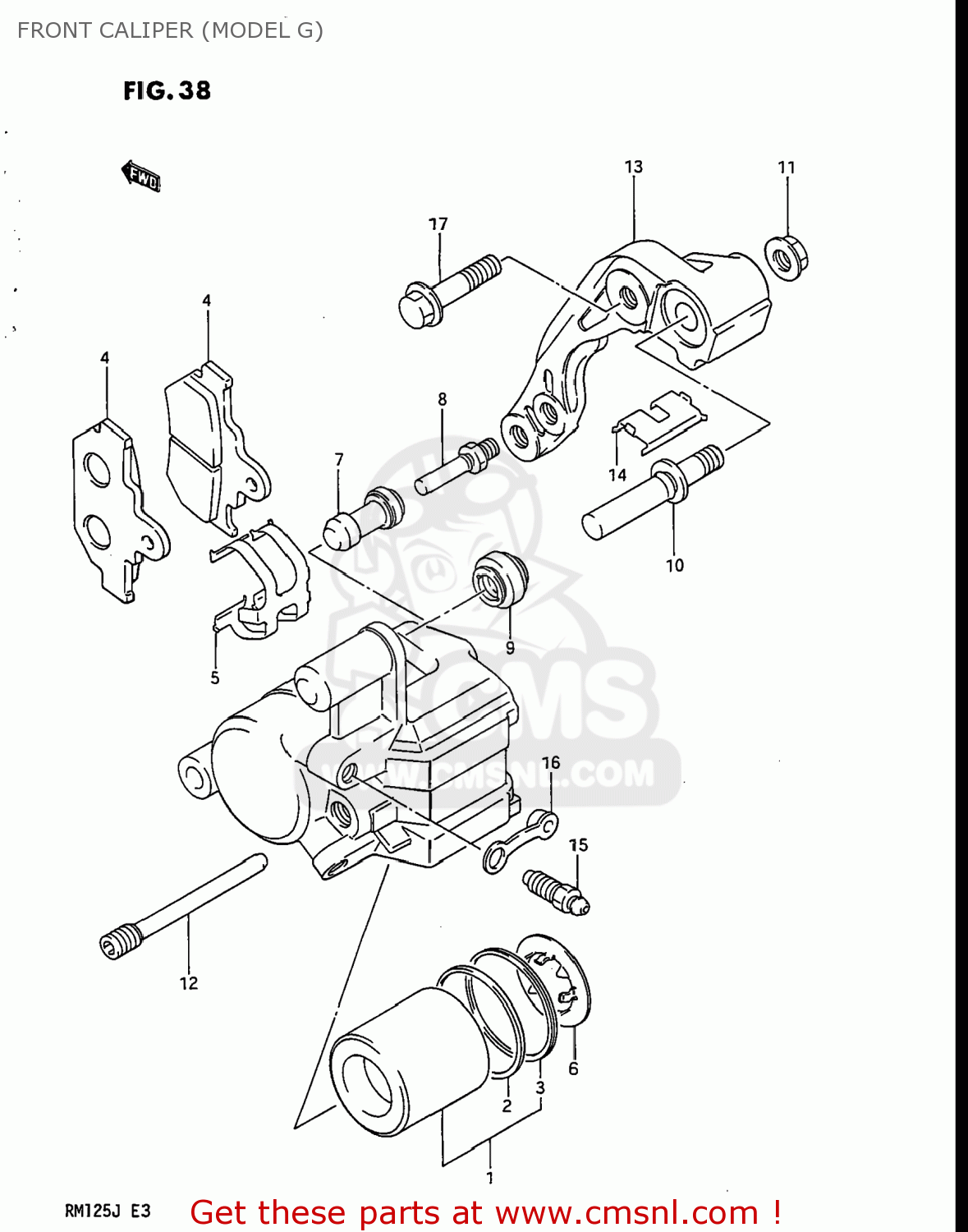

Front caliper (model g) diagram RM125 1988 (J) USA (E03)

FRONT CALIPER (MODEL G) RM125 1988 (J) USA (E03)

FRONT CALIPER (MODEL G) RM125 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity



5930014600
ref:
59300-14510

CALIPER ASSY,LH

€ 413.00

1

5930014820
ref: 1

PISTON SET,CALIPERS

€ 39.00

2

5910714500
ref: 2
69100-04820

SEAL,PISTON

€ 12.50

3

5910814500
ref: 3

DUST SEAL,PISTON

€ 6.00

4

5934014600
ref: 4
59300-14840

PAD

€ 29.00

5

5931514600
ref: 5

SPRING

€ 6.50

6

5937114500
ref: 6

SHIM

€ 8.00

7

5938613A00
ref: 7

BOOT

€ 6.50

8

5938214500
ref: 8

PIN,BOLT

€ 7.50

9

5930314500
ref: 9

BOOT

€ 5.50

10

5930514500
ref: 10

PIN,SLIDE

€ 12.50

11

5930614500
ref: 11

NUT,SLIDE PIN

€ 2.50

12

5934514600
ref: 12

PIN,HANGER

€ 10.50

13

5935114600
ref: 13

BRACKET

€ 56.50

14

5931614600
ref: 14

RETAINER

€ 3.50

15

5912101A00
ref: 15

BLEEDER

€ 8.50

16

5912201A00
ref: 16

CAP,BLEEDER

€ 4.50

17

0910308156
ref: 17
09103-08409

BOLT

€ 3.50

17

0910308156
ref: 17
09103-08409

BOLT

€ 3.50
