STAND - FOOTREST
RM125 1988 (J) USA (E03)

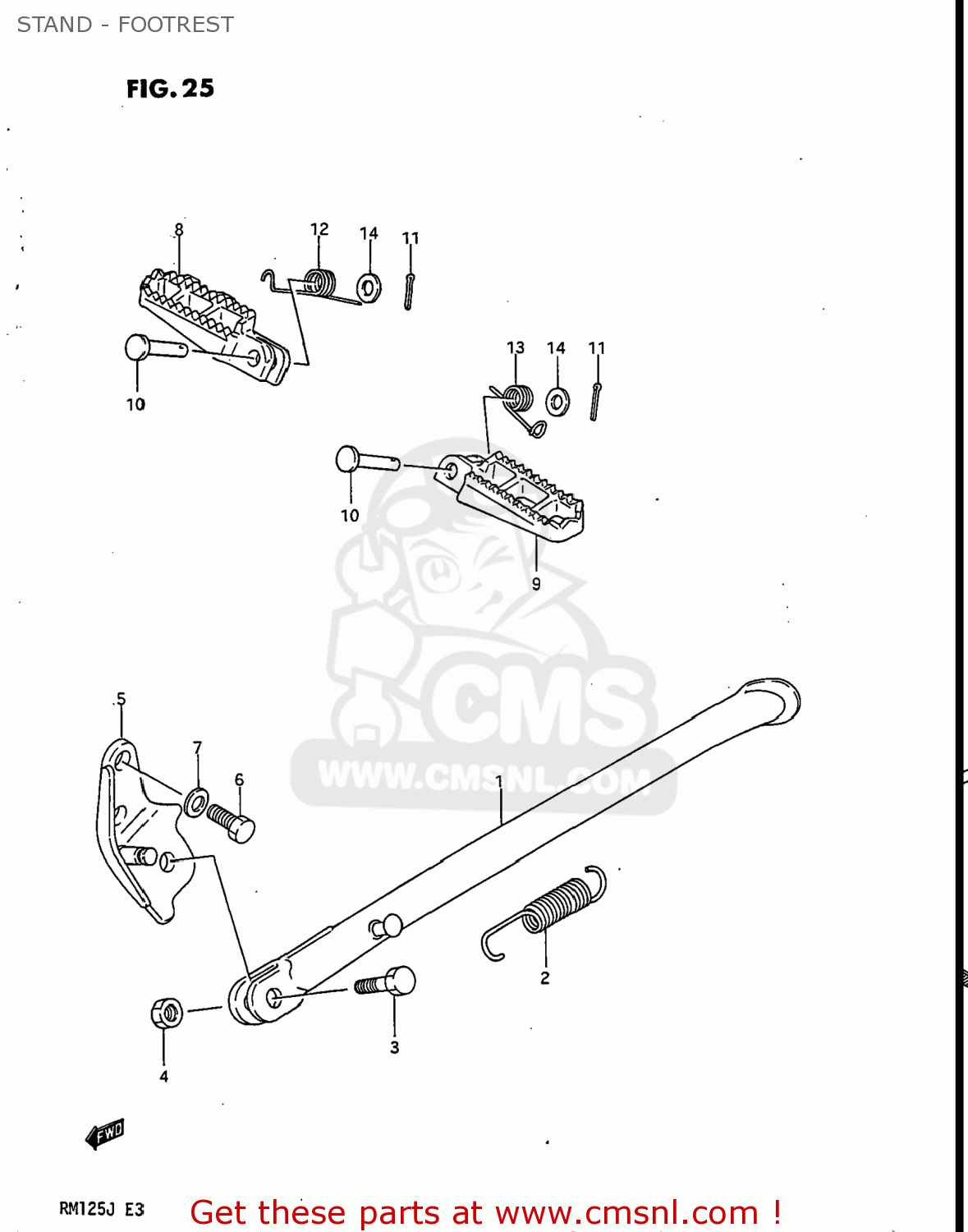

Stand - footrest diagram RM125 1988 (J) USA (E03)
STAND - FOOTREST RM125 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231001B0019F
ref: 1
42310-14400-019
STAND,SIDE
€ 79.00
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022107
ref: 4
08310-00107
NUT
€ 2.50
5-1
423301440019F
ref: 5-1
42330-14400-019
BRACKET,SIDE STAND
€ 97.50
5-2
423301410019F
ref: 5-2
BRACKET,PROP STAND
€ 21.00
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121107
ref: 7
08321-01107
WASHER,LOCK,10
€ 2.00
8-1
435511460019F
ref: 8-1
43551-37202-019
FOOTREST
€ 31.00
8-2
4355001B3019F
ref: 8-2
43550-29E01
FOOTREST,FRONT,RIGHT
€ 46.50
9-1
435614040119F
ref: 9-1
43561-40401-019
FOOTREST
€ 24.50
9-2
4356001B3019F
ref: 9-2
43560-29E01
FOOTREST
€ 46.50
10-1
0920008035
ref: 10-1
09200-08064
PIN
€ 6.50
10-2
0920008064
ref: 10-2
PIN
€ 6.50
11-1
0411120208
ref: 11-1
04111-2020A
PIN 20X20
€ 1.50
11-2
0411125208
ref: 11-2
04111-2520A
PIN 25X20
€ 2.00
12
0944814040
ref: 12
09448-14040-XC0
SPRING
€ 2.50
13
0944814038
ref: 13
SPRING
€ 2.50
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
