EXHAUST VALVE (MODEL T/V/W/X)
RM125 1998 (W) USA (E03)

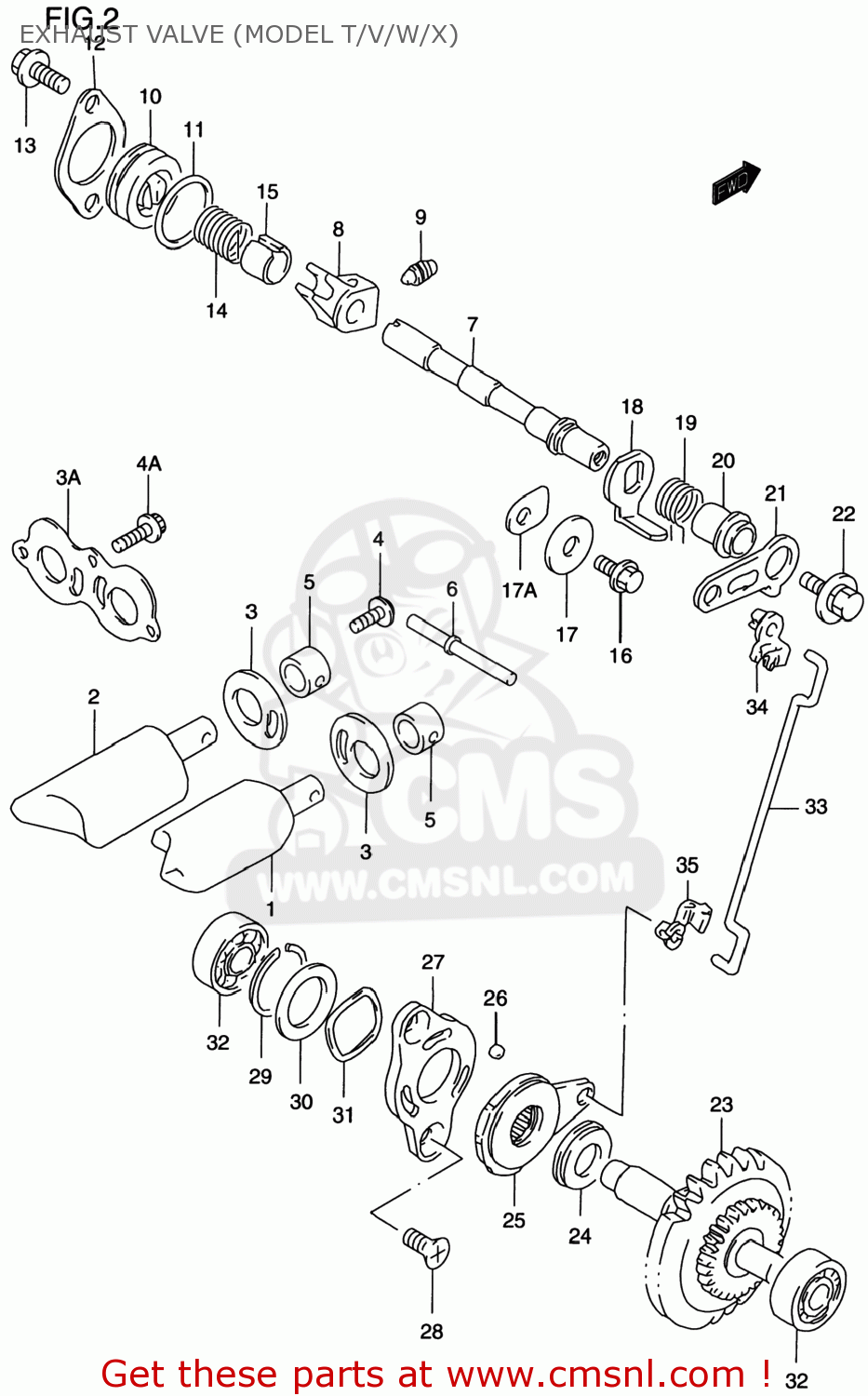

Exhaust valve (model t/v/w/x) diagram RM125 1998 (W) USA (E03)
EXHAUST VALVE (MODEL T/V/W/X) RM125 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1125436E00
ref: 1-1
11254-36E10
VALVE,EXHAUST,RIGHT
€ 151.00
1-2
1125436E10
ref: 1-2
VALVE,EXHAUST,R
€ 151.00
1-3
1125436E20
ref: 1-3
VALVE,EXHAUST,R
€ 151.00
2-1
1125536E00
ref: 2-1
11255-36E10
VALVE,EXHAUST,LEFT
€ 151.00
2-2
1125536E10
ref: 2-2
VALVE,EXHAUST,L
€ 151.00
2-3
1125536E20
ref: 2-3
VALVE,EXHAUST,L
€ 151.00
3
1126136E00
ref: 3
PLATE,EXHAUST VALVE
€ 5.50
3A
1126136E10
ref: 3A
PLATE,EXHAUST VALVE
€ 12.50
4
0211215123
ref: 4
02142-0512A
SCREW 5X12
€ 1.50
4A
0713005123
ref: 4A
07130-0512B
BOLT
€ 2.50
5
1126308D11
ref: 5
SPACER,EXHAUST VALVE
€ 13.00
6
1125319D80
ref: 6
PIN,EXHAUST VALVE
€ 29.50
7-1
1125927C30
ref: 7-1
SHAFT,EXHAUST VALVE
€ 60.00
7-2
1125936E00
ref: 7-2
SHAFT,EXHAUST VALVE
€ 72.50
8-1
1126400B23
ref: 8-1
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
8-2
1126400B24
ref: 8-2
ARM,EXHAUST VALVE SHAFT
€ 17.00
9
0913406013
ref: 9
SCREW(6X10)
€ 4.50
10
1125827C01
ref: 10
CAP,EXHAUST VALVE
€ 52.00
11
0928023002
ref: 11
O RING(D:1.9,ID:22.6)
€ 2.50
12
1126500B21
ref: 12
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
13
0216205123
ref: 13
02162-0512A
BOLT
€ 2.00
14-1
0944416008
ref: 14-1
SPRING
€ 7.00
14-2
1125736E00
ref: 14-2
SPRING,EXHAUST VALVE
€ 6.00
15
1126900B20
ref: 15
SPACER,EXHAUST VALVE SPRING
€ 19.00
16
0154706103
ref: 16
01547-0610B
BOLT
€ 3.00
17
0821206201
ref: 17
WASHER
€ 1.50
17A
2474121A00
ref: 17A
RETAINER
€ 2.00
18
1126700B21
ref: 18
LEVER,EXHAUST VALVE NO.2
€ 5.50
19-1
0944415010
ref: 19-1
SPRING
€ 5.50
19-2
0944416010
ref: 19-2
SPRING
€ 9.00
20
1126801B00
ref: 20
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
21
1126600B21
ref: 21
LEVER,EXHAUST VALVE NO.1
€ 3.50
22
0911805003
ref: 22
BOLT(5X12)
€ 4.00
23-1
1267027C10
ref: 23-1
GOVERNOR ASSY,EXHAUST VALVE
€ 86.00
23-2
1267036E00
ref: 23-2
GOVERNOR ASSEMBLY,EXHAUST
€ 90.00
23-3
1267036E11
ref: 23-3
GOVERNOR ASSY,EXHAUST VALVE
€ 90.00
24
0926310002
ref: 24
BEARING(10X22X2.8)
€ 8.50
25
1268001820
ref: 25
ACTUATOR,EXHAUST VALVE
€ 47.50
26
0611106003
ref: 26
BALL
€ 1.50
27
1268201B02
ref: 27
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
28
0912005003
ref: 28
SCREW(5X10)
€ 2.00
29
0938019003
ref: 29
CIRCLIP
€ 2.50
30
0918119004
ref: 30
SHIM(19.1X25X0.3)
€ 4.00
31
0916419001
ref: 31
WASHER
€ 7.00
32
0926208005
ref: 32
BEARING(8X22X7)
€ 12.50
33-1
1268527C00
ref: 33-1
ROD,EXHAUST VALVE
€ 7.50
33-2
1268536E00
ref: 33-2
ROD,EXHAUST VALVE
€ 6.50
33-3
1268536E10
ref: 33-3
12685-36E11
ROD,EXHAUST VALVE
€ 4.00
34-1
1268601B00
ref: 34-1
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
34-2
1268636E00
ref: 34-2
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
35
1268701B00
ref: 35
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
