KICK STARTER
RM125 1998 (W) USA (E03)

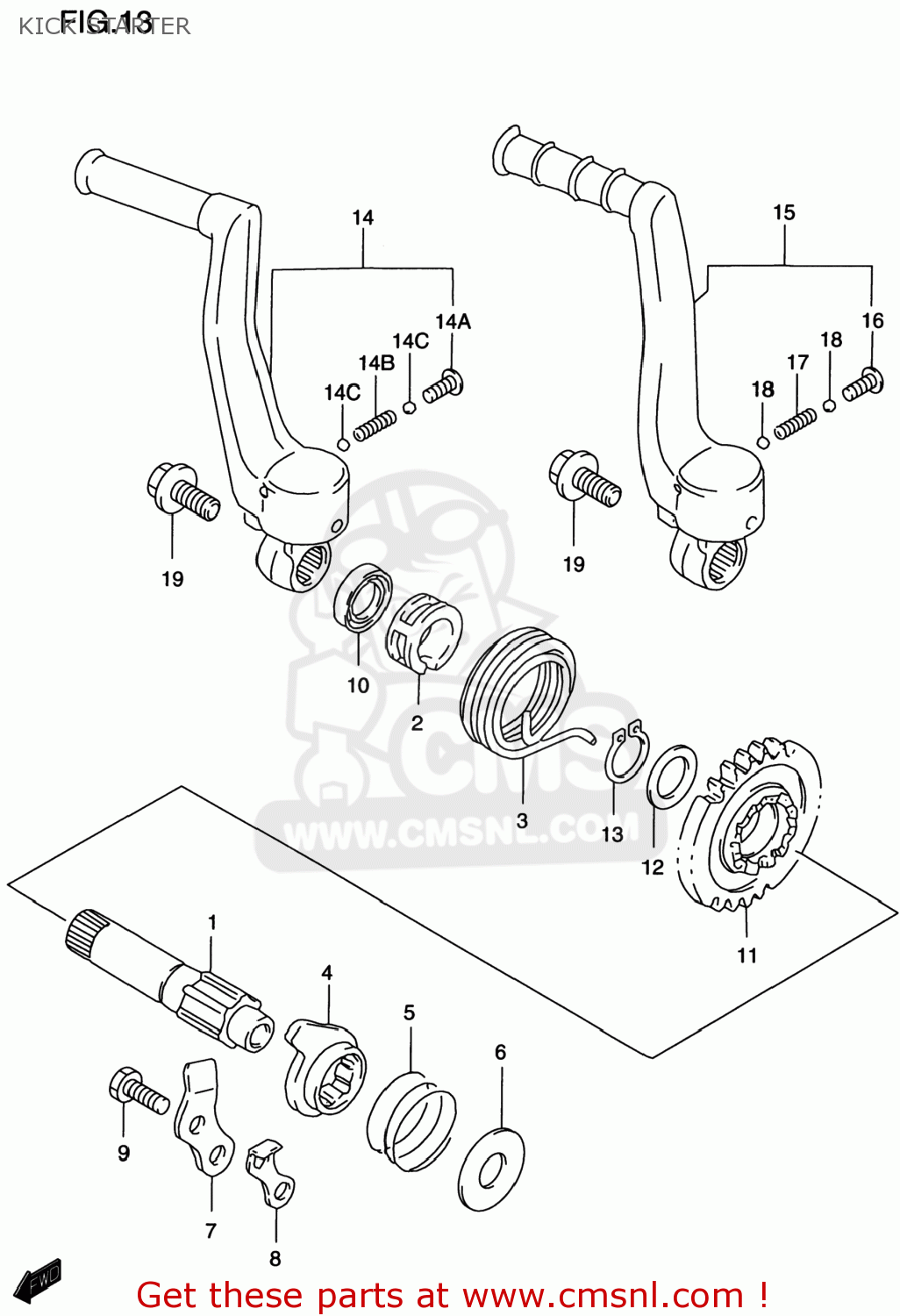

Kick starter diagram RM125 1998 (W) USA (E03)
KICK STARTER RM125 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2621127C00
ref: 1-1
26211-27C02
SHAFT,KICK STARTER
€ 113.50
1-2
2621127C01
ref: 1-2
26211-27C02
SHAFT,KICK STARTER
€ 113.50
2
2622127C00
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 3.50
3
0944845013
ref: 3
SPRING
€ 11.00
4-1
2623102B00
ref: 4-1
26231-02B02
STARTER,KICK
€ 15.50
4-2
2623102B01
ref: 4-2
26231-02B02
STARTER,KICK
€ 15.50
5
0944031002
ref: 5
SPRING
€ 2.00
6
0821112301
ref: 6
WASHER
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
€ 3.00
8-1
2623340200
ref: 8-1
26233-40201
STOPPER,KICK STARTER
€ 2.50
8-2
2623340201
ref: 8-2
STOPPER,KICK STARTER
€ 2.50
9
0150006123
ref: 9
01500-0612A
BOLT
€ 2.00
10
0928316004
ref: 10
SEAL,OIL(15.8X24X5)
€ 6.00
11-1
2624143D00
ref: 11-1
26241-43D01
GEAR,KICK STARTER DRIVE
€ 85.00
11-2
2624143D01
ref: 11-2
GEAR,KICK STARTER DRIIVE
€ 85.00
12-1
0822116245
ref: 12-1
09181-16158
WASHER
€ 3.50
12-2
0918116158
ref: 12-2
SHIM(16X24X0.5)
€ 3.50
13
0833131166
ref: 13
08331-3116A
CIRCLIP 16MM
€ 2.00
14A
0912706016
ref: 14A
SCREW(6X27.5)
€ 3.00
14B
0944005031
ref: 14B
SPRING
€ 1.50
14C
0611107004
ref: 14C
BALL
€ 1.50
14-1
2630027C34
ref: 14-1
26300-36E10
LEVER ASSEMBLY,KICK STARTER
€ 286.00
14-2
2630027C35
ref: 14-2
26300-36E10
LEVER ASSEMBLY,KICK STARTER
€ 286.00
15
2630036E10
ref: 15
LEVER ASSY,KICK STARTER
€ 286.00
16
0912706016
ref: 16
SCREW(6X27.5)
€ 3.00
17
0944005031
ref: 17
SPRING
€ 1.50
18
0611107004
ref: 18
BALL
€ 1.50
19
0910308253
ref: 19
BOLT(8X14)
€ 4.00
