REAR SWINGING ARM (MODEL X)
RM125 1998 (W) USA (E03)

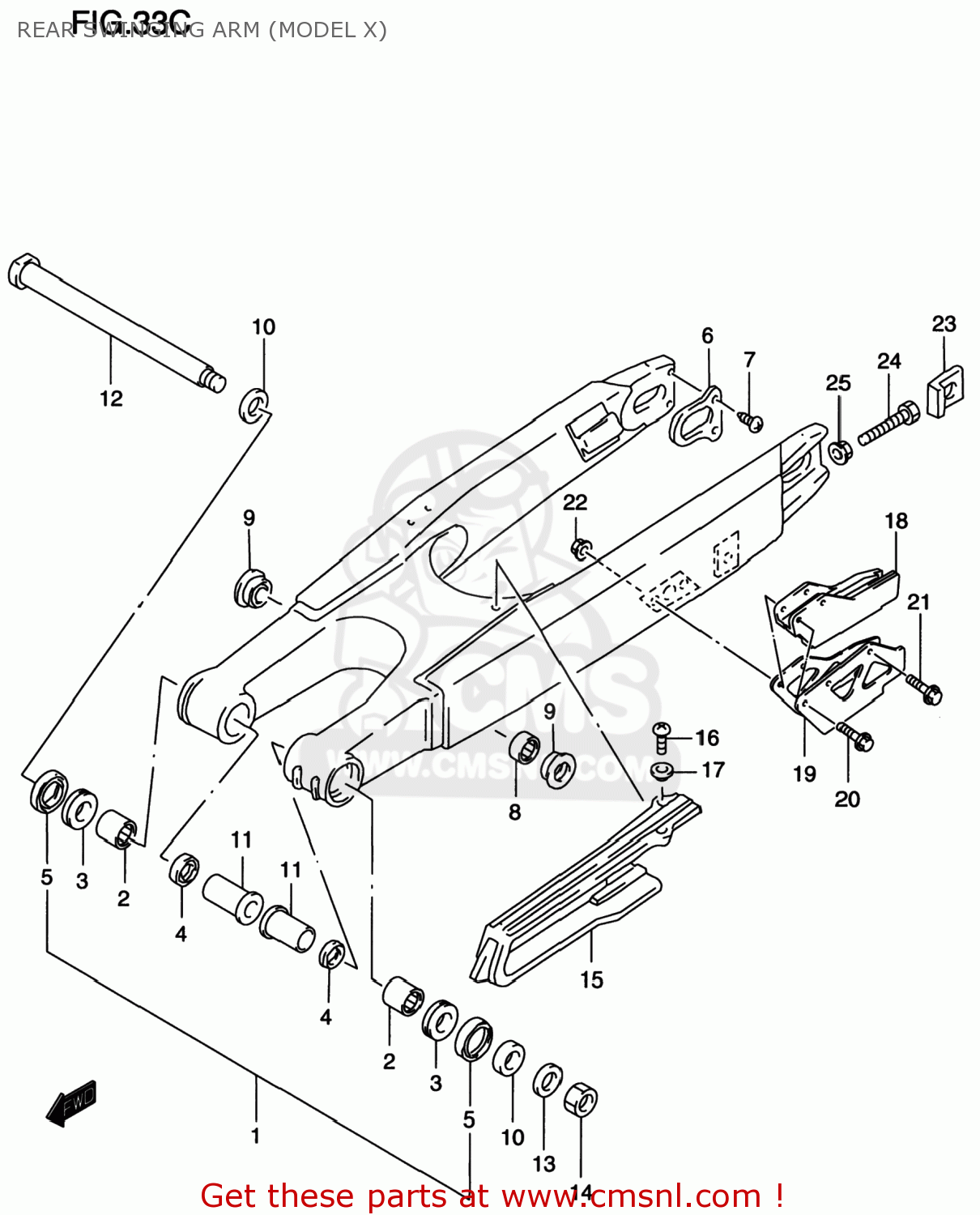

Rear swinging arm (model x) diagram RM125 1998 (W) USA (E03)
REAR SWINGING ARM (MODEL X) RM125 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100037E10
ref: 1
SWINGINGARM ASSY,RR
€ 1,018.50
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
€ 3.50
6
6112837E00
ref: 6
PLATE,SWING ARM RR
€ 14.00
7
0212204103
ref: 7
02122-0410A
SCREW,UPPER
€ 2.50
8
0926322066
ref: 8
BEARING(22X28X16)
€ 14.50
9
6262437E00
ref: 9
SEAL,SWINGING ARM RR
€ 7.00
10
6125136E01
ref: 10
SPACER,RR SWGARM PIVOT OUTER
€ 6.00
11
6125236E00
ref: 11
SPACER,SWGARM PIVOT INNER
€ 20.00
12
6121128C00
ref: 12
SHAFT,RR SWINGINGARM PIVOT
€ 46.50
13
0832201163
ref: 13
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
14
0915916007
ref: 14
NUT
€ 10.50
15
6127336E10
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
€ 39.50
16
0211205123
ref: 16
02112-0512A
SCREW
€ 1.50
17
0916905022
ref: 17
WASHER
€ 3.50
18
6134136E30
ref: 18
61341-37F00
GUIDE,CHAIN
€ 43.00
19
6134236E30
ref: 19
PLATE,CHAIN GUIDE
€ 31.00
20
0154706503
ref: 20
01547-0650B
BOLT
€ 3.50
21
0154706123
ref: 21
01547-0612B
BOLT
€ 2.00
22
0831931063
ref: 22
08319-3106A
NUT
€ 2.50
23
6144528E10
ref: 23
WASHER,CHAIN ADJUSTER
€ 23.00
24
0910008287
ref: 24
BOLT(8X50)
€ 3.00
25
0915908034
ref: 25
NUT
€ 2.00
