TRANSMISSION (MODEL T/V)
RM125 1998 (W) USA (E03)

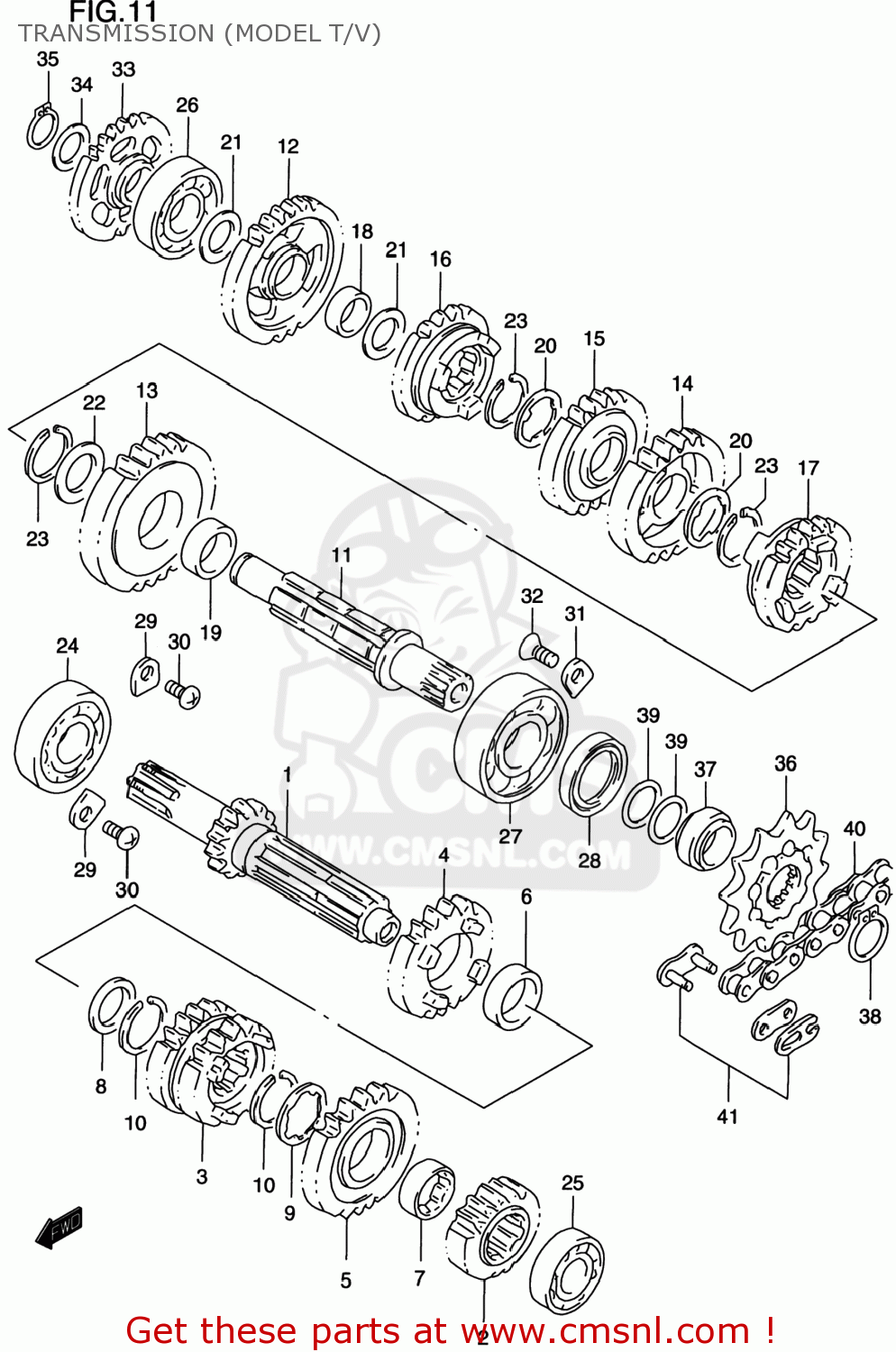

Transmission (model t/v) diagram RM125 1998 (W) USA (E03)
TRANSMISSION (MODEL T/V) RM125 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412143D00
ref: 1
SHAFT,COUNTER(NT:14)
€ 136.00
2
2422143D00
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 94.50
3
2423143D10
ref: 3
24231-43D21
GEAR,THIRD & FOURTH DRIVE
€ 114.50
4
2425143D00
ref: 4
24251-43D20
GEAR,FIFTH DRIVE (NT:19)
€ 74.50
5
2426143D00
ref: 5
24261-43D01
GEAR,SIXTH DRIVE (NT:20)
€ 74.00
6
0930022008
ref: 6
BUSH(22X26X9)
€ 10.50
7
2426243D00
ref: 7
BUSH,6TH DRIVE GEAR
€ 23.50
8-1
0821122281
ref: 8-1
09181-22139
SHIM
€ 4.00
8-2
0918122139
ref: 8-2
SHIM(22X28X1)
€ 4.00
9
0916722014
ref: 9
WASHER,LOCK
€ 4.00
10
0938022006
ref: 10
CIRCLIP
€ 3.00
11
2413143D01
ref: 11
SHAFT,DRIVE
€ 119.00
12
2431143D02
ref: 12
GEAR,1ST DRIVEN(NT:30)
€ 81.00
13
2432143D00
ref: 13
GEAR,2ND DRIVEN(NT:28)
€ 81.00
14
2433143D11
ref: 14
GEAR,3RD DRIVEN(NT:26)
€ 258.00
15
2434143D01
ref: 15
GEAR,4TH DRIVEN(NT:24)
€ 248.00
16
2435143D00
ref: 16
GEAR,5TH DRIVEN(NT:20)
€ 71.50
17
2436143D01
ref: 17
GEAR,6TH DRIVEN(NT:19)
€ 67.50
18
0930017012
ref: 18
BUSH(17X20X9)
€ 22.50
19
0930022008
ref: 19
BUSH(22X26X9)
€ 10.50
20
0916722022
ref: 20
WASHER
€ 3.50
21-1
0821117261
ref: 21-1
09181-17167
WASHER,THRUST
€ 3.00
21-2
0918117167
ref: 21-2
SHIM(17X26X1)
€ 3.00
22-1
0821122301
ref: 22-1
09181-22167
WASHER,THRUST
€ 3.00
22-2
0918122167
ref: 22-2
SHIM(22X30X1)
€ 3.00
23
0938022006
ref: 23
CIRCLIP
€ 3.00
24
0926220122
ref: 24
BEARING(20X47X12)
€ 27.00
25
0811362027
ref: 25
BEARING
€ 14.50
26
0926217040
ref: 26
BEARING(17X40X9.5)
€ 17.50
27
0926220110
ref: 27
BEARING(20X52X12.5)
€ 33.50
28
0928328020
ref: 28
SEAL,OIL(28X38X6)
€ 11.50
29
2474121A00
ref: 29
RETAINER
€ 2.00
30
0211206103
ref: 30
02112-0610B
SCREW
€ 1.50
31
2474120A00
ref: 31
RETAINER,COUNTER BEARING,R
€ 2.00
32
0212206123
ref: 32
02122-0612A
SCREW
€ 3.00
33
2626043D00
ref: 33
26260-43D01
GEAR,KICK STARTER IDLE
€ 67.50
34-1
0822117245
ref: 34-1
09181-17130
SHIM
€ 3.00
34-2
0918117130
ref: 34-2
SHIM(17X24X0.5)
€ 3.00
35
0833131176
ref: 35
08331-3117A
CIRCLIP,17MM
€ 2.00
36-1
2751114111
ref: 36-1
SPROCKET,ENGINE
€ 19.00
36-2
2751114101
ref: 36-2
SPROCKET,ENGINE
€ 23.50
36-3
2751114121
ref: 36-3
SPROCKET,ENGINE
€ 27.50
37
2753143D00
ref: 37
SPACER,ENGINE SPROCKET
€ 20.00
38
0938020007
ref: 38
CIRCLIP
€ 3.00
39
0928020006
ref: 39
O RING(D:1.9,ID:19.8)
€ 2.50
40
2760043D00114
ref: 40
27600-43D02-114
CHAIN ASSEMBLY DID520DM.11
€ 72.50
41
2762043D00
ref: 41
JOINT SET,CHAIN
€ 5.00
