FRAME - SEAT
RM250 1984 (E)

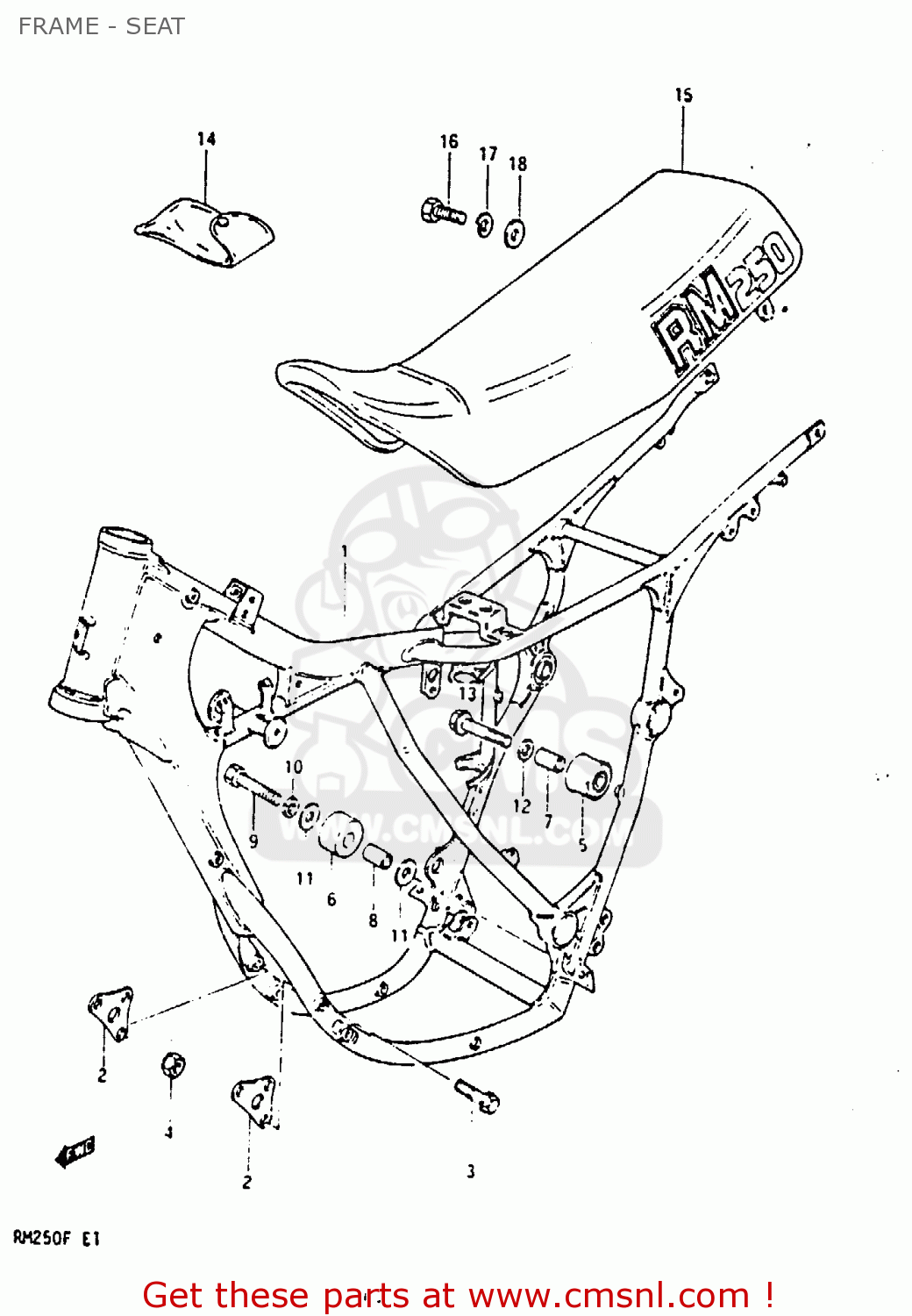

Frame - seat diagram RM250 1984 (E)
FRAME - SEAT RM250 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1-1
411001460019F
ref: 1-1
MODEL E
FRAME
€ 920.50
1-2
411001460119F
ref: 1-2
MODEL F
FRAME
€ 920.50
2
4199114600
ref: 2
PLATE,ENGINE MOUNTING
€ 17.00
3
0910308027
ref: 3
BOLT 8X55
€ 3.50
4
0831921088
ref: 4
NUT
€ 1.50
5
4391014500
ref: 5
ROLLER,CHAIN
€ 36.50
6
4391114200
ref: 6
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
7
4391340400
ref: 7
SPACER,CHAIN LENGTH ROLLER
€ 8.00
8
0918008119
ref: 8
SPACER(8.6X12X25.5)
€ 6.50
9
0110708458
ref: 9
BOLT 8X45
€ 2.50
10
0832131088
ref: 10
WASHER,LOCK,8.
€ 2.00
11
0916008068
ref: 11
WASHER (8.5X25X1.2)
€ 3.50
12
0821108161
ref: 12
WASHER
€ 2.00
13
0910308043
ref: 13
BOLT(8X45)
€ 4.50
14
0980000280
ref: 14
TOOL SET
€ 17.00
15-1
451001451054G
ref: 15-1
MODEL E
SEAT ASSEMBLY
€ 264.50
15-2
451001451058D
ref: 15-2
MODEL F
SEAT ASSEMBLY
€ 264.50
16
0110708258
ref: 16
BOLT
€ 2.50
17
0832121088
ref: 17
LOCK WASHER
€ 2.00
18
0832211088
ref: 18
WASHER
€ 2.00
