FRONT CALIPER (MODEL F)
RM250 1984 (E)

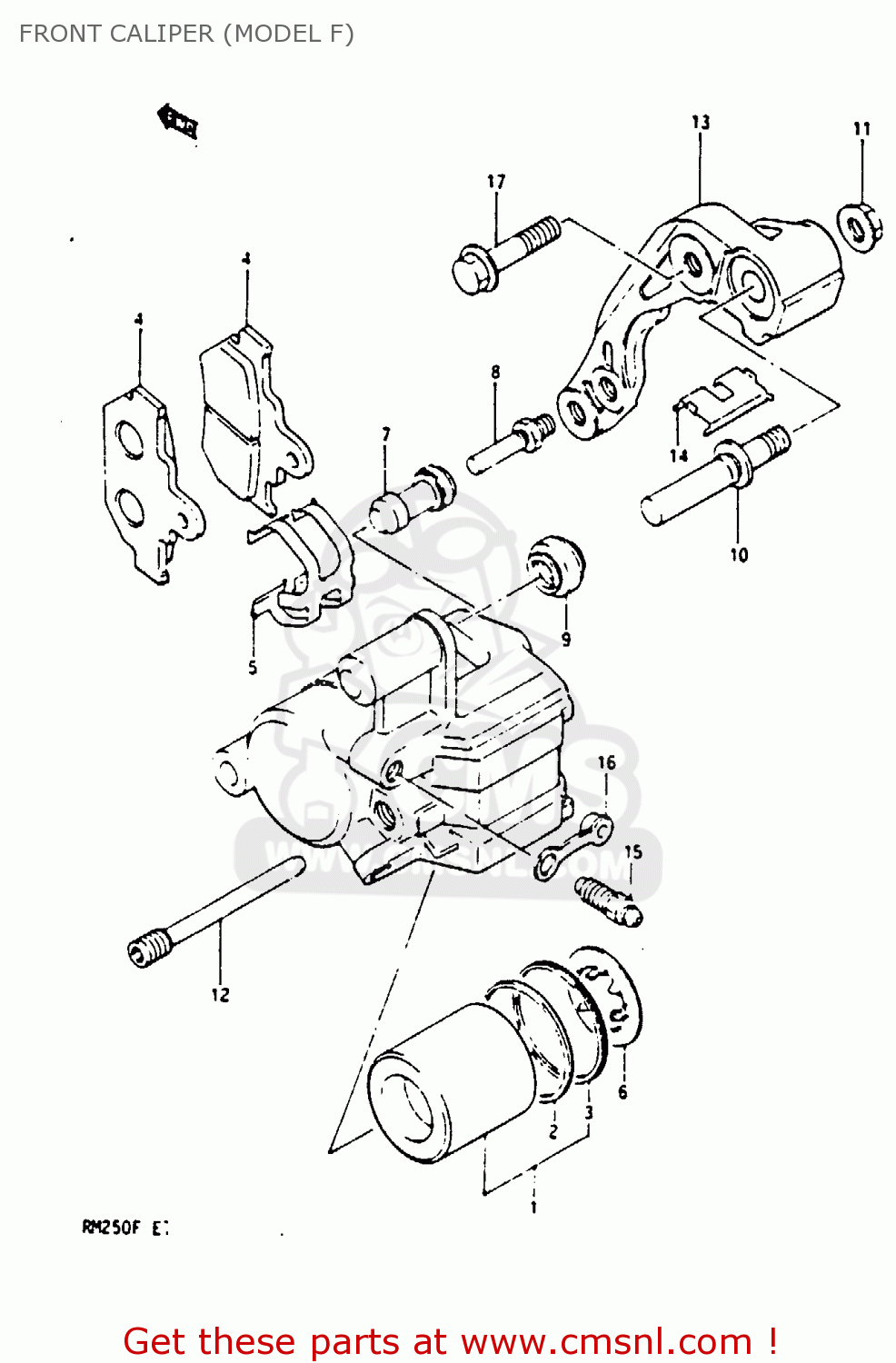

Front caliper (model f) diagram RM250 1984 (E)
FRONT CALIPER (MODEL F) RM250 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
0
5930014600
ref: 0
CALIPER ASSY,LH
€ 413.00
1
5930014820
ref: 1
PISTON SET,CALIPERS
€ 39.00
2
5910714500
ref: 2
SEAL,PISTON
€ 12.50
3
5910814500
ref: 3
DUST SEAL,PISTON
€ 6.00
4
5934014600
ref: 4
PAD
€ 29.00
5
5931514600
ref: 5
SPRING
€ 6.50
6
5937114500
ref: 6
SHIM
€ 8.00
7
5938613A00
ref: 7
BOOT
€ 6.50
8
5938214500
ref: 8
PIN,BOLT
€ 7.50
9
5930314500
ref: 9
BOOT
€ 5.50
10
5930514500
ref: 10
PIN,SLIDE
€ 12.50
11
5930614500
ref: 11
NUT,SLIDE PIN
€ 2.50
12
5934514600
ref: 12
PIN,HANGER
€ 10.50
13
5935114600
ref: 13
BRACKET
€ 56.50
14
5931614600
ref: 14
RETAINER
€ 3.50
15
5912101A00
ref: 15
BLEEDER
€ 8.50
16
5912201A00
ref: 16
CAP,BLEEDER
€ 4.50
17
0910308156
ref: 17
BOLT
€ 3.50
