GEAR SHIFTING
RM250 1984 (E)

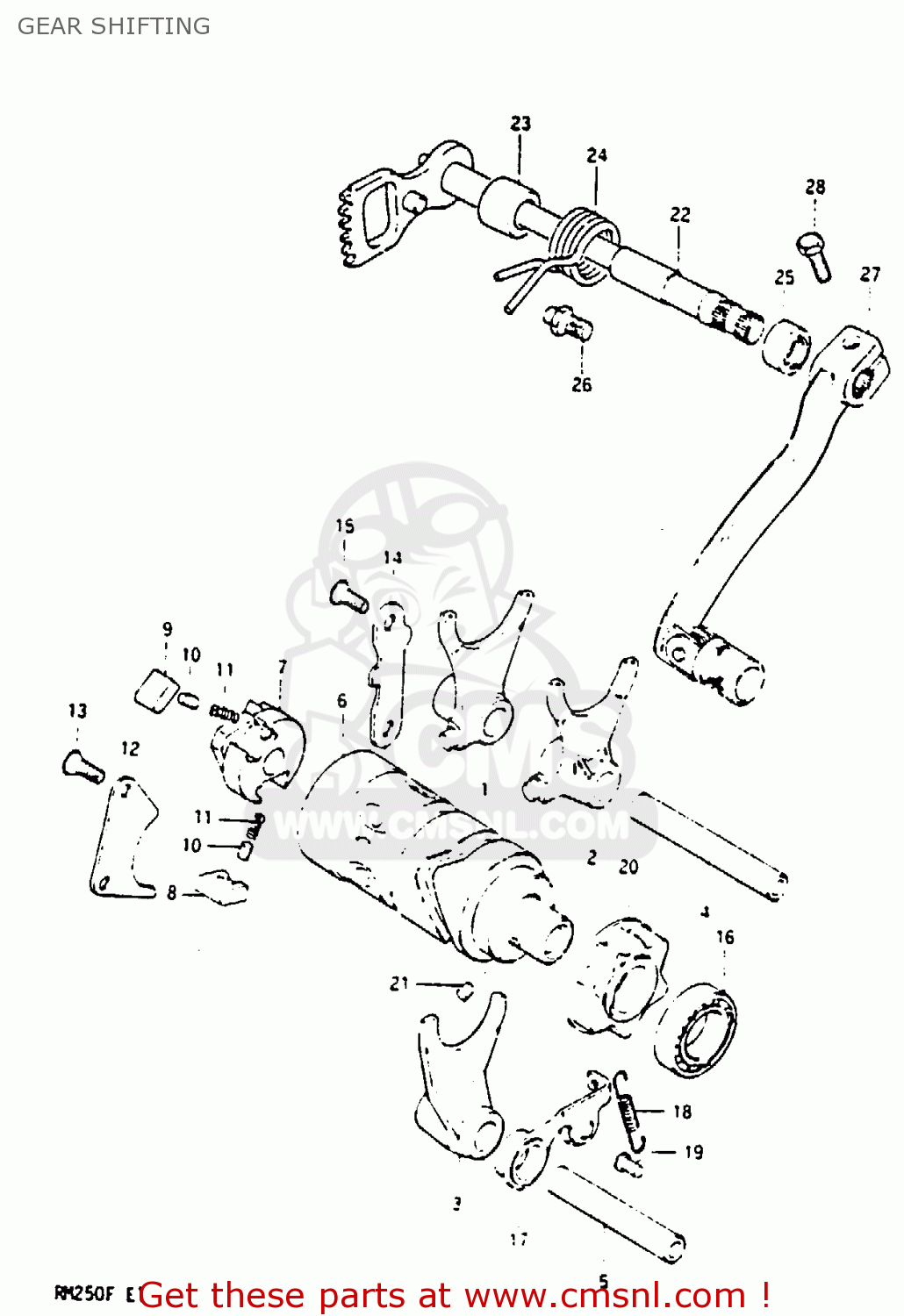

Gear shifting diagram RM250 1984 (E)
GEAR SHIFTING RM250 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
2521114310
ref: 1
FORK,GEAR SHIFT NO.1
€ 51.50
2
2522114310
ref: 2
FORK,GEAR SHIFT NO.2
€ 67.50
3
2523114311
ref: 3
FORK,GEAR SHIFT NO.3
€ 68.50
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542114330
ref: 5
SHAFT,GEAR SHIFT FORK NO.2
€ 10.00
6
2531014311
ref: 6
CAM,GEAR SHIFT
€ 332.00
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334200
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533116500
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
2534114310
ref: 14
GUIDE,GEAR SHIFTING CABLE
€ 7.50
15
0212206128
ref: 15
SCREW
€ 3.00
16
0811369030
ref: 16
BEARING
€ 14.00
17
2535014311
ref: 17
STOPPER,GEAR SHIFTING CAM
€ 8.50
18
0944306049
ref: 18
SPRING
€ 4.50
19
0922004001
ref: 19
RIVET
€ 1.50
20
2538114310
ref: 20
PLATE,GEAR SHIFT CAM STOPPER
€ 10.00
21
0422104089
ref: 21
PIN
€ 1.50
22
2551014300
ref: 22
SHAFT,GEAR SHIFT
€ 73.00
23
0918012083
ref: 23
SPACER(12X20X15.3)
€ 2.50
24
0944426013
ref: 24
SPRING
€ 3.50
25
0928512002
ref: 25
OIL SEAL
€ 7.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
2560014311
ref: 27
LEVER ASSEMBLY,GEAR SHIFTING
€ 65.00
28
0151706258
ref: 28
BOLT
€ 2.50
