KICK STARTER
RM250 1984 (E)

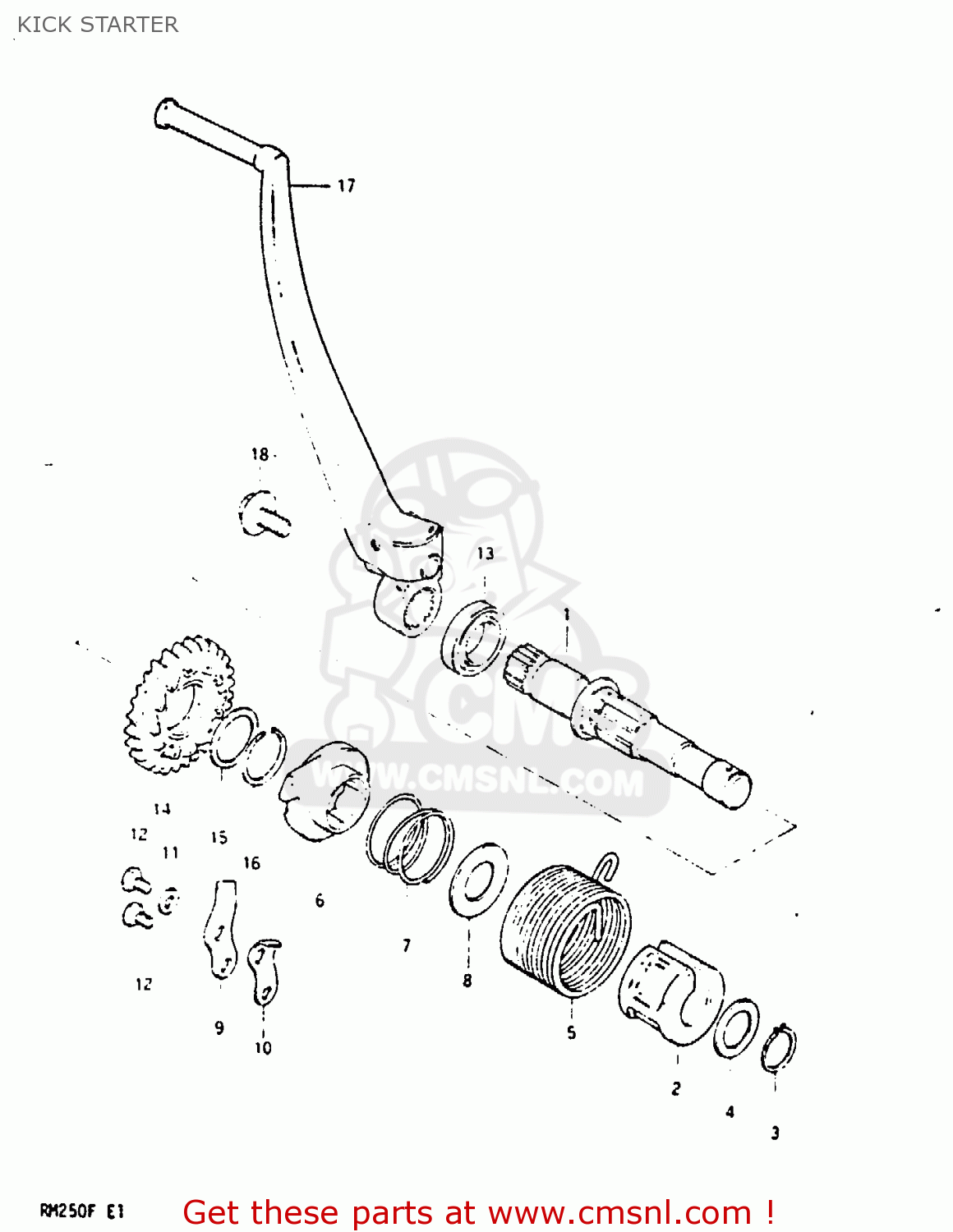

Kick starter diagram RM250 1984 (E)
KICK STARTER RM250 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
2621114301
ref: 1
SHAFT,KICK STARTER
€ 70.00
2
2622141100
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.00
3
0938017001
ref: 3
CIRCLIP
€ 2.00
4
0821117241
ref: 4
WASHER
€ 2.00
5
0944845012
ref: 5
SPRING
€ 2.50
6
2623130002
ref: 6
STARTER,KICK
€ 47.50
7
0944032002
ref: 7
SPRING
€ 2.00
8
0821117341
ref: 8
WASHER
€ 2.00
9
2623240200
ref: 9
GUIDE,KICK STARTER
€ 3.00
10
2623340200
ref: 10
STOPPER,KICK STARTER
€ 2.50
11
0916906003
ref: 11
WASHER
€ 1.50
12
0110706128
ref: 12
BOLT
€ 2.00
13
0928320031
ref: 13
SEAL,OIL(20X27X5)
€ 5.00
14-1
2624041103
ref: 14-1
MODEL E
GEAR,KICK STARTER DRIVE
€ 71.50
14-2
2624013A00
ref: 14-2
MODEL F
GEAR
€ 71.50
15
0821122281
ref: 15
SHIM
€ 4.00
16
0938022006
ref: 16
CIRCLIP
€ 3.00
17
2630014601
ref: 17
LEVER ASSEMBLY,KICK STARTER
€ 298.00
18
0910308069
ref: 18
BOLT(8X14)
€ 7.00
