CRANKCASE
RM250 1985 (F) USA (E03)

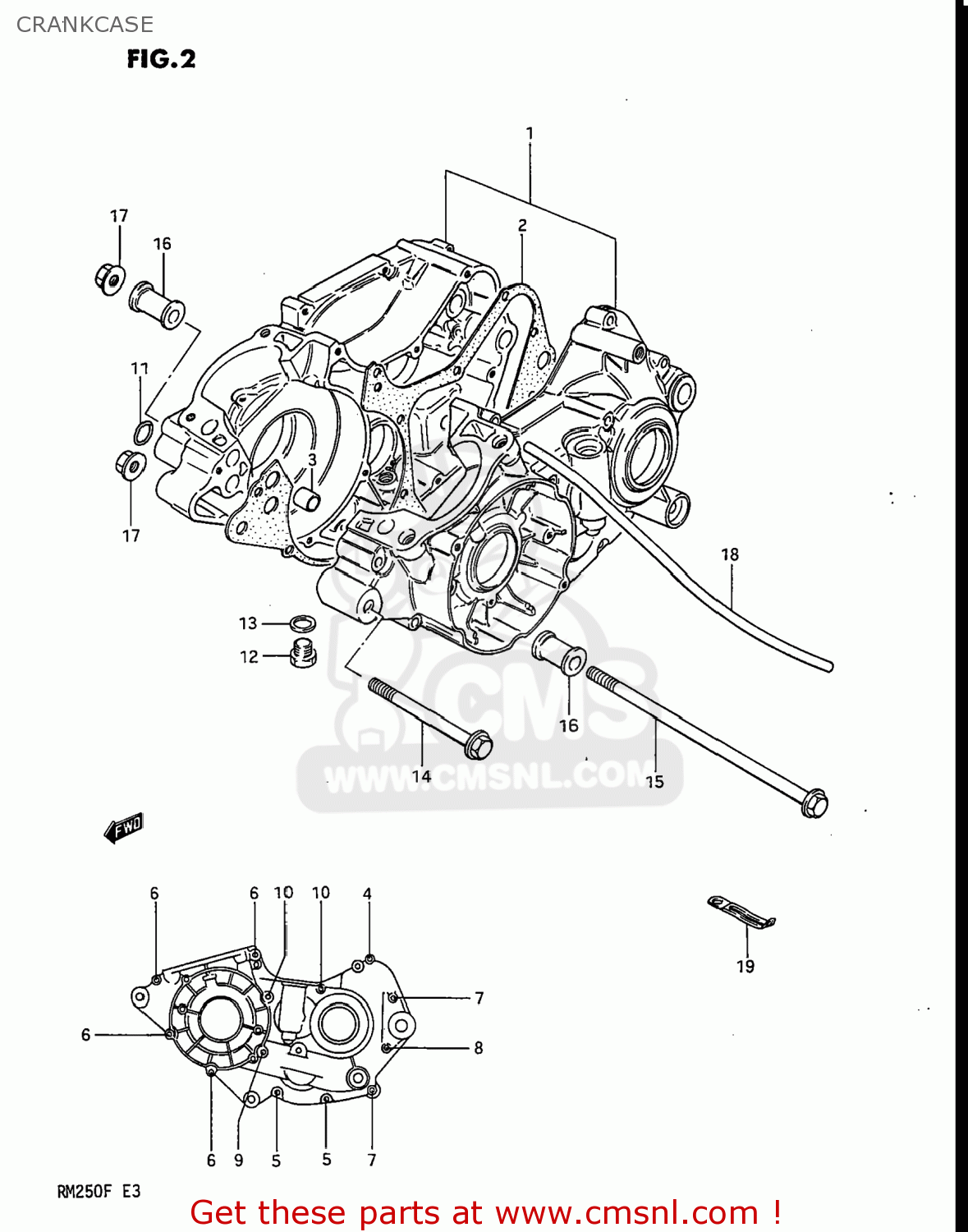

Crankcase diagram RM250 1985 (F) USA (E03)
CRANKCASE RM250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130014892
ref: 1-1
CRANKCASE SET
€ 534.00
1-2
1130114850
ref: 1-2
CRANKCASE SET
€ 0.00
2
1148114300
ref: 2
11481-14300-H17
GASKET,CRANKCASE (MCA)
€ 20.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206305
ref: 4
02112-0630A
SCREW
€ 2.50
5
0211206355
ref: 5
02112-0635B
SCREW
€ 2.50
6
0211206455
ref: 6
02112-0645B
SCREW
€ 1.50
7
0211206505
ref: 7
02112-0650B
SCREW (6*50)
€ 2.00
8
0211206555
ref: 8
02112-0655B
SCREW
€ 2.00
9
0211206605
ref: 9
02112-0660B
SCREW (6*60)
€ 2.50
10
0211206705
ref: 10
02112-0670B
SCREW
€ 2.50
11
0928014004
ref: 11
O RING(D:1.9,ID:13.8)
€ 1.50
12
0924714001
ref: 12
09247-14002
PLUG
€ 5.00
13
0916814004
ref: 13
GASKET(14X19.2X2) (NAS)
€ 2.50
14
0910308114
ref: 14
BOLT(8X100)
€ 7.50
15
0910308115
ref: 15
BOLT(8X225)
€ 61.00
16
1161114230
ref: 16
11610-14200
SPACER,ENGINE MOUNT
€ 7.50
17
0831931088
ref: 17
08319-3108A
NUT
€ 2.50
18
0934304046
ref: 18
09352-40703-600
HOSE
€ 3.00
19
0940408402
ref: 19
09404-08420
CLAMP
€ 3.50
