FRAME - SEAT
RM250 1985 (F) USA (E03)

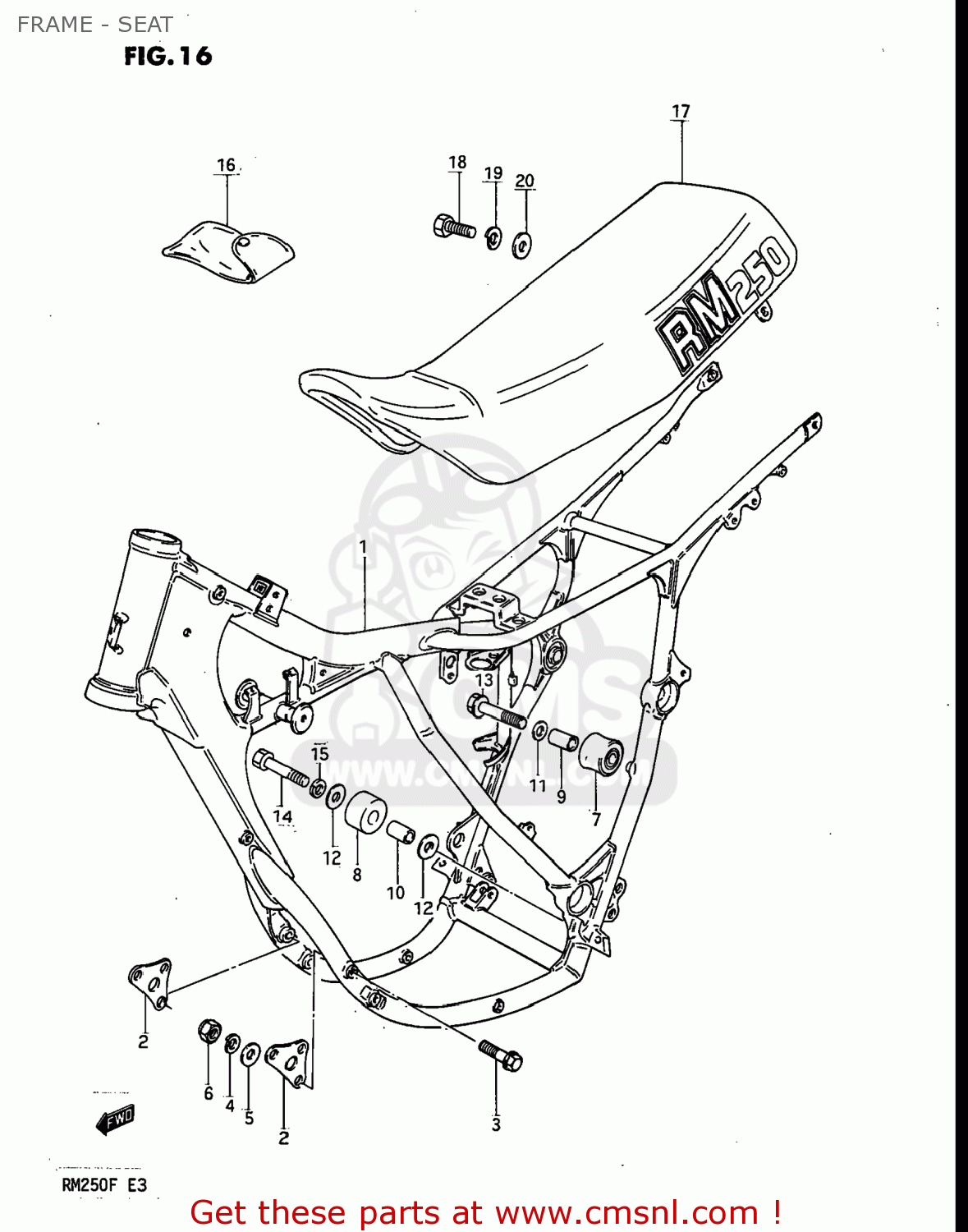

Frame - seat diagram RM250 1985 (F) USA (E03)
FRAME - SEAT RM250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411001460019F
ref: 1-1
41100-14601-19F
FRAME
€ 920.50
1-2
411001460119F
ref: 1-2
FRAME
€ 920.50
2
4199114600
ref: 2
PLATE,ENGINE MOUNTING
€ 17.00
3
0910308027
ref: 3
09103-08339
BOLT 8X55
€ 3.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
0831921088
ref: 6
08319-2108A
NUT
€ 1.50
7
4391014500
ref: 7
43910-01B00
ROLLER,CHAIN
€ 36.50
8
4391114200
ref: 8
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
9
4391340400
ref: 9
SPACER,CHAIN LENGTH ROLLER
€ 8.00
10
0918008119
ref: 10
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
11
0821108161
ref: 11
09181-08167
WASHER
€ 2.00
12
0916008068
ref: 12
09160-08032
WASHER (8.5X25X1.2)
€ 3.50
13
0910308043
ref: 13
BOLT(8X45)
€ 4.50
14
0110708458
ref: 14
01500-08453
BOLT 8X45
€ 2.50
15
0832131088
ref: 15
08321-01087
WASHER,LOCK,8.
€ 2.00
16
0980000280
ref: 16
TOOL SET
€ 17.00
17-1
451001451054G
ref: 17-1
45100-14X00-58D
SEAT ASSEMBLY
€ 264.50
17-2
451001451058D
ref: 17-2
45100-14X00-58D
SEAT ASSEMBLY
€ 264.50
18
0110708258
ref: 18
01500-08257
BOLT
€ 2.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
