CYLINDER
RM250 1985 (F) USA (E03)

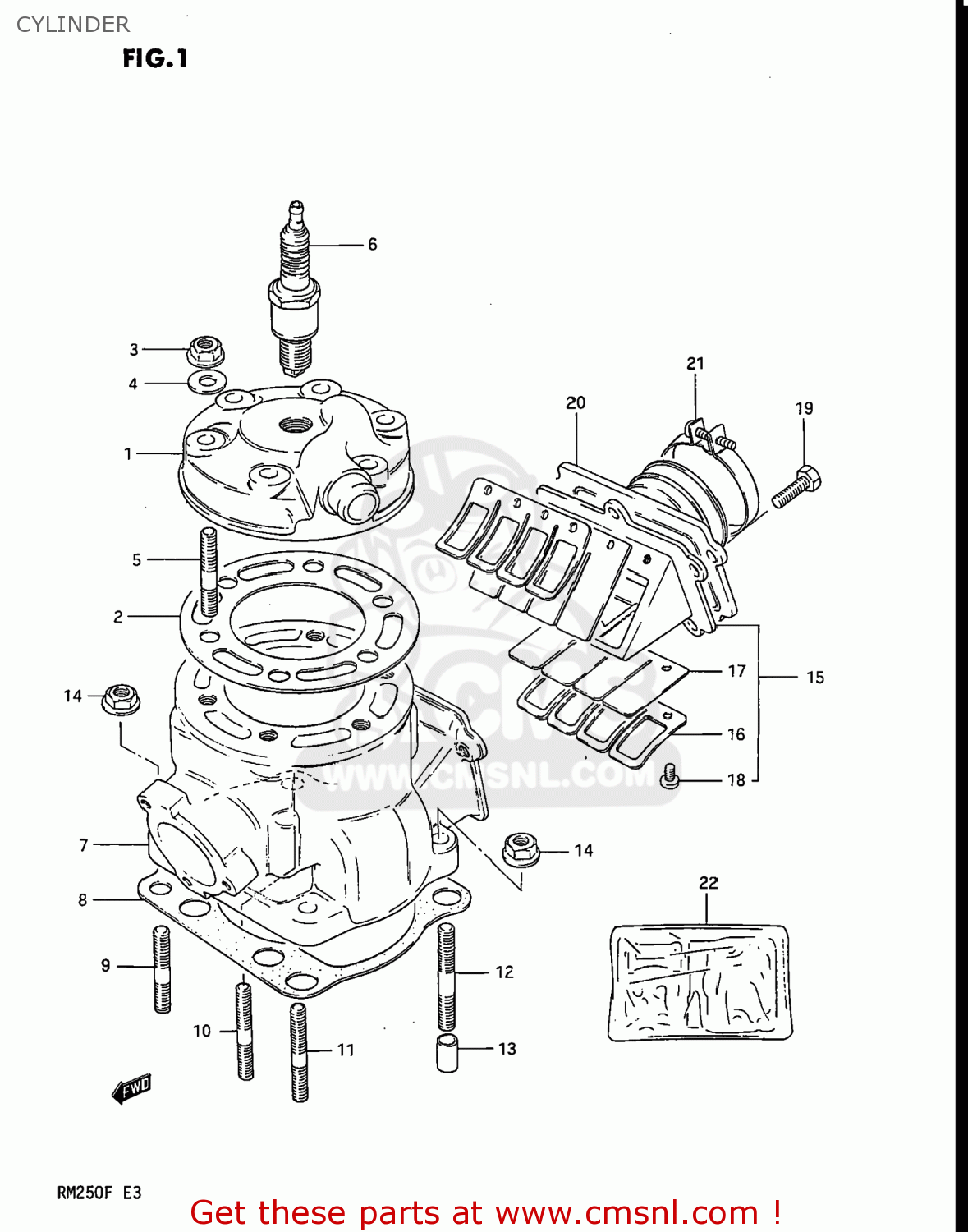

Cylinder diagram RM250 1985 (F) USA (E03)
CYLINDER RM250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111114310
ref: 1-1
11111-14601
HEAD,CYLINDER
€ 237.50
1-2
1111114601
ref: 1-2
HEAD,CYLINDER
€ 237.50
2
1114114311
ref: 2
11141-13A60
GASKET,CYLINDER HEAD
€ 39.50
3
0831616085
ref: 3
08316-1008B
NUT 8MM
€ 3.00
4
0916008053
ref: 4
09160-08039
WASHER (8.5X19X2.3)
€ 2.00
5-1
0910808155
ref: 5-1
BOLT,STUD
€ 3.00
5-2
0910808145
ref: 5-2
09108-08174
STUD
€ 4.00
6
0948200208
ref: 6
PLUG,SPARK(NGK B-8EN)
€ 16.00
7-1
1121014303
ref: 7-1
CYLINDER
€ 439.00
7-2
1121014600
ref: 7-2
CYLINDER
€ 511.50
8
1124114600
ref: 8
11241-14600-H17
GASKET,CYLINDER (MCA)
€ 17.00
9
0910808142
ref: 9
BOLT,STUD
€ 3.00
10
0910808143
ref: 10
BOLT,STUD
€ 3.00
11
0910808144
ref: 11
BOLT,STUD
€ 4.50
12
0910808155
ref: 12
BOLT,STUD
€ 3.00
13
0421111169
ref: 13
PIN
€ 2.00
14
0831616085
ref: 14
08316-1008B
NUT 8MM
€ 3.00
15
1315014200
ref: 15
13150-01C00
VALVE ASSEMBLY,REED
€ 97.00
16
1315214200
ref: 16
13150-01C00
STOPPER,REED VALVE
€ 97.00
17
1315314200
ref: 17
VALVE,REED
€ 15.50
18
0211203088
ref: 18
02112-03087
SCREW
€ 1.50
19
0110706208
ref: 19
01500-06207
BOLT
€ 2.00
20
1311014600
ref: 20
PIPE,INTAKE
€ 43.00
21
0940256306
ref: 21
09402-56901
CLAMP
€ 3.50
22
1140014872
ref: 22
11400-14878
GASKET (MCA)
€ 105.00
