MUFFLER
RM250 1985 (F) USA (E03)

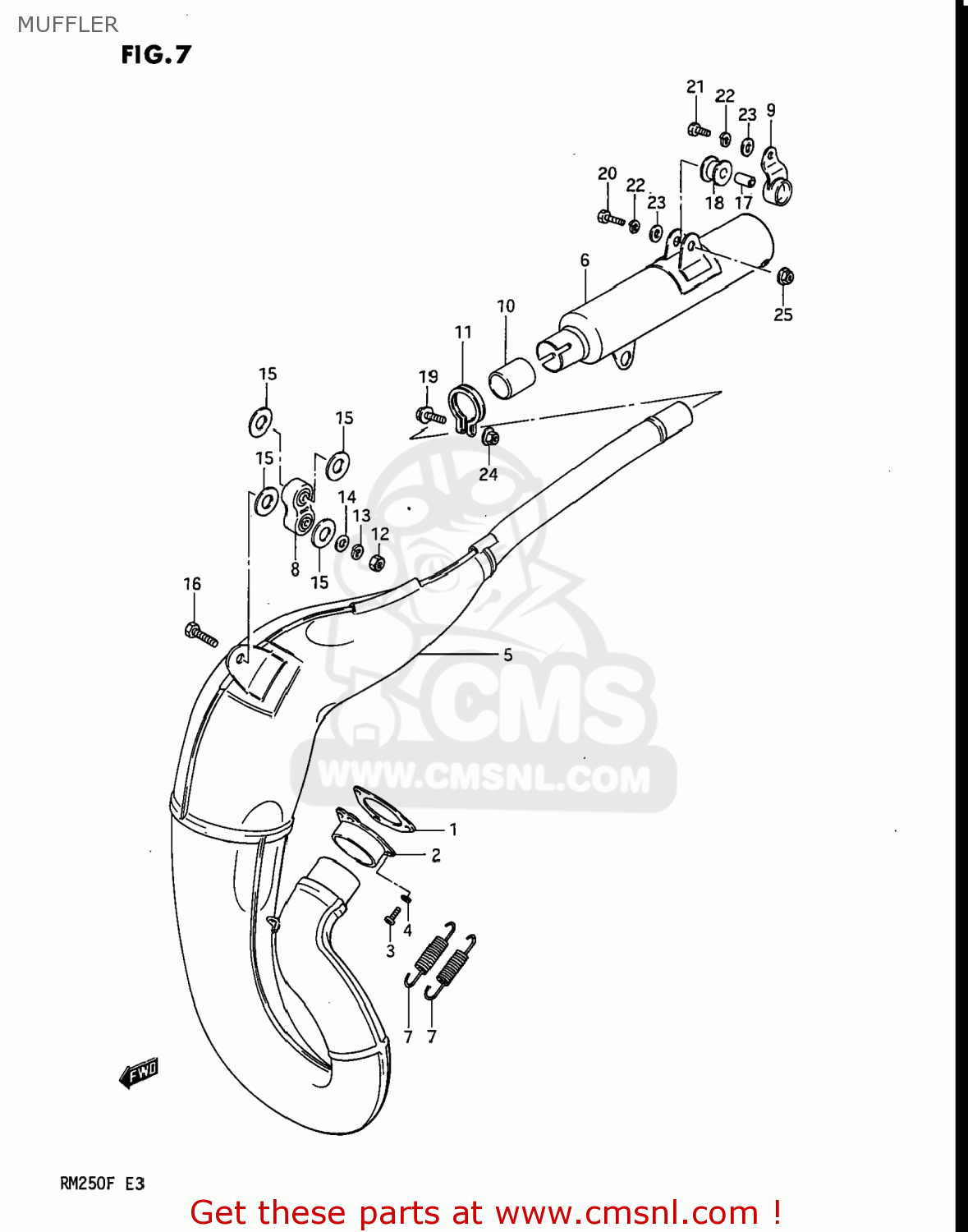

Muffler diagram RM250 1985 (F) USA (E03)
MUFFLER RM250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418116300
ref: 1
14181-16300-H17
GASKET,EXHAUST PIPE (MCA)
€ 4.00
2
1417014301
ref: 2
14170-00B20
FLANGE,EXHAUST PIPE
€ 56.00
3
0211206165
ref: 3
02112-0616A
SCREW
€ 2.00
4
0832121065
ref: 4
08321-0106A
LOCK WASHER
€ 2.00
5-1
1431014611H01
ref: 5-1
14310-14614
BODY,MUFFLER
€ 239.00
5-2
1431014614H01
ref: 5-2
14310-14614
MUFFLER ASSEMBLY,FIRST
€ 239.00
6-1
1433014611H01
ref: 6-1
14330-14612
BODY,MUFFLER
€ 131.00
6-2
1433014612H01
ref: 6-2
14330-14612
MUFFLER ASSEMBLY,SECOND
€ 131.00
7
0944312024
ref: 7
09443-12024-XC0
SPRING
€ 5.50
8
1477040000
ref: 8
DAMPER,MUFFLER
€ 139.00
9
1477014600
ref: 9
DAMPER,MUFFLER SUPPORT
€ 10.00
10
1477114600
ref: 10
14771-14601
CONNECTOR,MUFFLER
€ 18.00
11
1477214600
ref: 11
CLAMP,MUFFLER 2ND
€ 6.50
12
0831022088
ref: 12
08310-00087
NUT 8MM
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0916008035
ref: 14
09160-08130
WASHER
€ 2.00
15
0916113001
ref: 15
WASHER(13X28X1.6)
€ 2.50
16
0910008176
ref: 16
BOLT(8X32)
€ 2.00
17
0918008102
ref: 17
09180-08194
SPACER (8.6X12X17.5)
€ 3.00
18
0932012026
ref: 18
09320-12043
CUSHION
€ 8.00
19
0151706258
ref: 19
01550-06257
BOLT
€ 2.50
20
0110708358
ref: 20
01500-0835B
BOLT
€ 3.50
21
0110708208
ref: 21
01500-08207
BOLT
€ 3.00
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
0831626068
ref: 24
08316-2006A
NUT 6MM
€ 2.00
25
0831626088
ref: 25
08316-20087
NUT
€ 3.00
