CRANKCASE COVER
RM250 1985 (F)

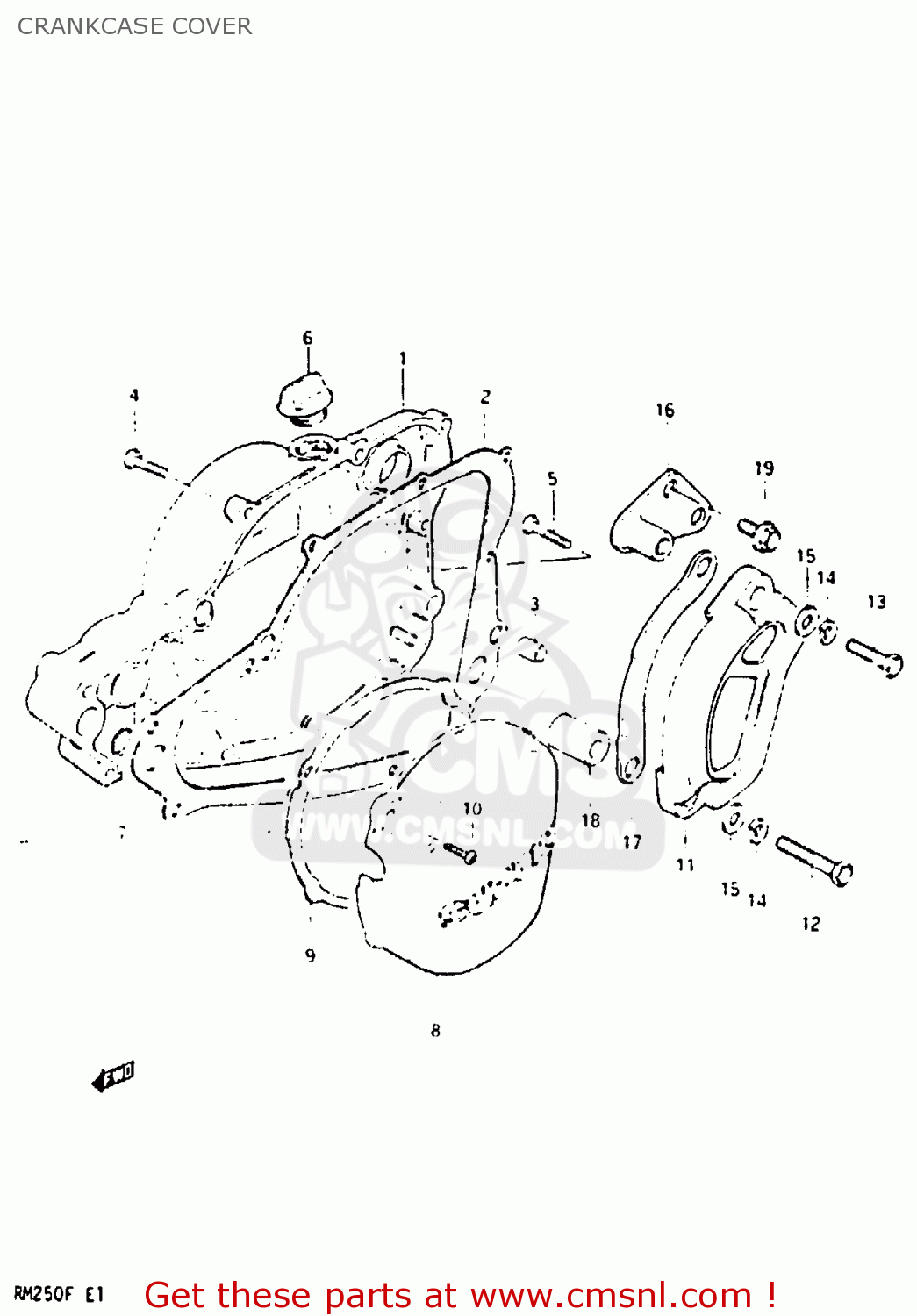

Crankcase cover diagram RM250 1985 (F)
CRANKCASE COVER RM250 1985 (F)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134114300
ref: 1-1
MODEL E
COVER,CLUTCH
€ 153.50
1-2
1134114610
ref: 1-2
MODEL F
COVER,CLUTCH
€ 170.00
2
1148214300
ref: 2
GASKET,CLUTCH COVER (MCA)
€ 22.00
3
0920613001
ref: 3
PIN
€ 2.50
4
0211206255
ref: 4
SCREW
€ 1.50
5
0211206455
ref: 5
SCREW
€ 1.50
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
0928017002
ref: 7
O RING(D:2.4,ID:16.8)
€ 3.50
8-1
1135114300
ref: 8-1
MODEL E
COVER,MAGNETO
€ 101.00
8-2
1135114610
ref: 8-2
MODEL F
COVER,MAGNETO
€ 136.50
9
1148314301
ref: 9
GASKET,MAGNETO COVER (MCA)
€ 17.50
10
0211205165
ref: 10
SCREW
€ 2.00
11-1
1136014600
ref: 11-1
MODEL E
COVER,SPROCKET
€ 19.50
11-2
1136014610
ref: 11-2
MODEL F
COVER,SPROCKET
€ 19.50
12
0110708555
ref: 12
BOLT 8X55
€ 3.00
13
0110708304
ref: 13
BOLT
€ 2.50
14
0832121085
ref: 14
LOCK WASHER
€ 2.50
15
0832211085
ref: 15
WASHER,8.5X16X
€ 1.50
16
2765014601
ref: 16
BRACKET,CHAIN GUIDE PL
€ 7.00
17-1
2764114601
ref: 17-1
FOR NT:14
PLATE,FRONT CHAIN GUIDE
€ 3.50
17-2
2764114611
ref: 17-2
OPT FOR NT:13
PLATE,CHAIN FRONT GUIDE
€ 10.50
18
0918008109
ref: 18
SPACER (8.6X16X23.5)
€ 3.00
19
0151708205
ref: 19
BOLT
€ 3.00
