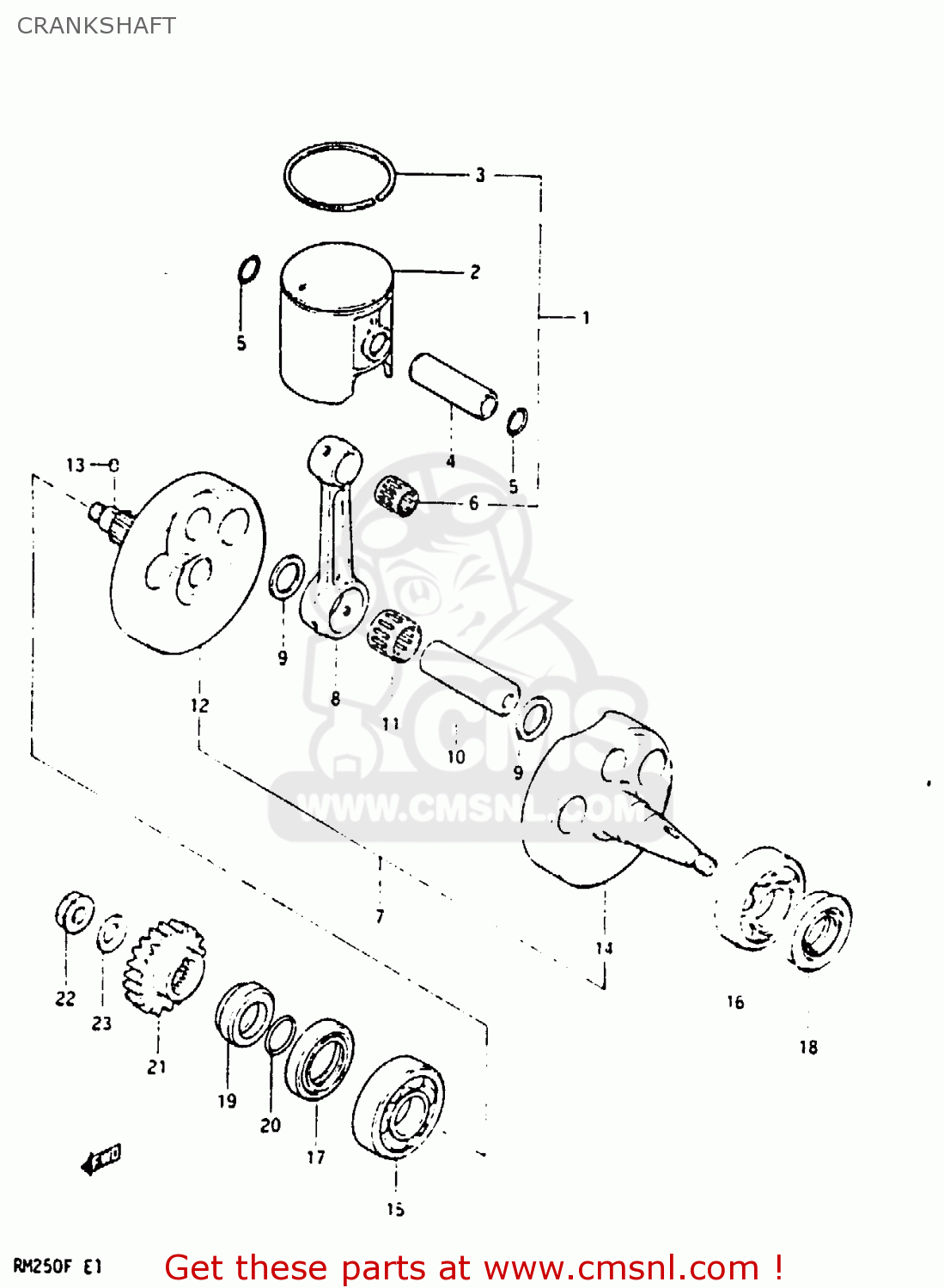

CRANKSHAFT

ref

part #

description

quantity

1-1

1210114860
ref: 1-1
OPT

PISTON SET (STD)

€ 61.50

1-2

1210114860025
ref: 1-2
OPT

PISTON SET (RM250F)

€ 69.00

1-3

1210114860050
ref: 1-3
OPT

PISTON SET (OS:0.5)

€ 69.00

2-1

1211014301
ref: 2-1

PISTON (70.00MM)

€ 500.00

2-2

1211014301025
ref: 2-2
OPT

PISTON (70.25MM)

€ 193.50

2-3

1211014301050
ref: 2-3
OPT

PISTON (70.50MM)

€ 225.00

3-1

1214114310
ref: 3-1

RING,PISTON

€ 31.50

3-2

1214114310025
ref: 3-2
OPT

RING,PISTON

€ 16.50

3-3

1214114310050
ref: 3-3
OPT

RING,PISTON (OS:0.5)

€ 26.00

4

1215115002
ref: 4

PIN,PISTON (18MM)

€ 14.50

5

0938118002A
ref: 5

CIRCLIP,PISTON PIN

€ 1.50

6

0926318016
ref: 6
FROM 09263-18011

BEARING(18X23X22)

€ 14.00

7-1

1220014312
ref: 7-1
MODEL E

CRANKSHAFT ASSEMBLY

€ 709.50

7-2

1220014600
ref: 7-2
MODEL F

CRANKSHAFT ASSY

€ 220.00

8-1

1216114300
ref: 8-1
MODEL E

ROD,CONNECTING

€ 111.50

8-2

1216114600
ref: 8-2
MODEL F

CONNECTING ROD

€ 88.50

9

0916024015
ref: 9

WASHER(24X29X1.5)

€ 7.50

10

1221114301
ref: 10

PIN,CRANK

€ 27.00

11

0926324019
ref: 11

BEARING

€ 62.50

12

1222014311
ref: 12

CRANKSHAFT

€ 143.00

13

0621103052
ref: 13

PIN 3X5

€ 1.50

14

1226114302
ref: 14

CRANKSHAFT,LEFT

€ 194.50

15

0926225066
ref: 15

BEARING(25X62X17)

€ 44.50

16

0926230066
ref: 16

BEARING(30X62X16)

€ 38.00

17

0928936003
ref: 17

SEAL,OIL(36X52X8)

€ 47.00

18

0928320034
ref: 18

SEAL,OIL(19.6X37X8)

€ 6.00

19

1235914300
ref: 19

SPACER,PRIMARY DRIVE GEAR

€ 11.50

20

0928022001
ref: 20

O RING(D:2.4,ID:21.8)

€ 2.00

21

2111114310
ref: 21

GEAR,PRIMARY DRIVE

€ 46.50

22

0915914012
ref: 22

NUT

€ 23.50

23

0916414011
ref: 23

WASHER

€ 2.00
