CYLINDER
RM250 1985 (F)

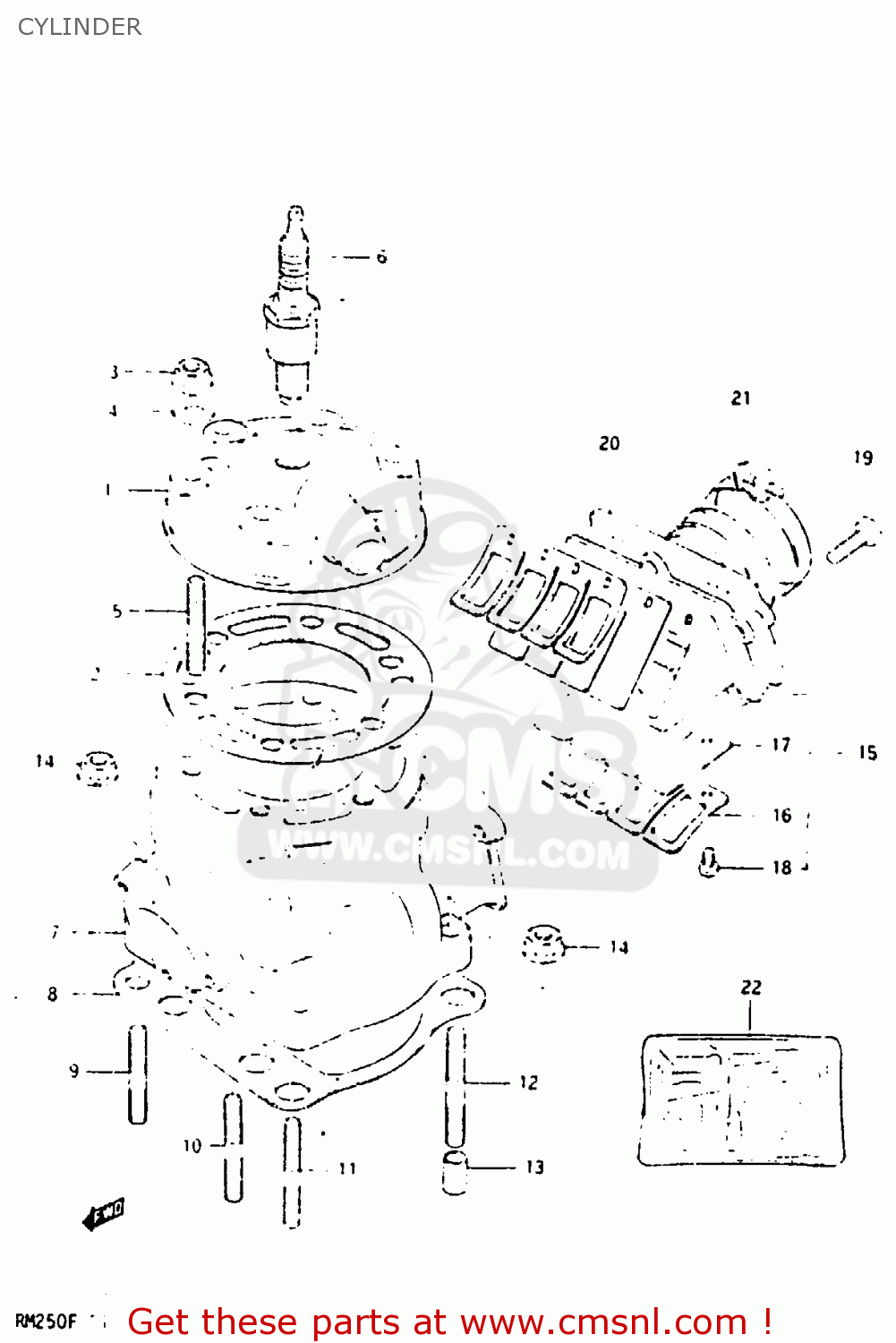

Cylinder diagram RM250 1985 (F)
CYLINDER RM250 1985 (F)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111114130
ref: 1-1
MODEL E
CYLINDER HEAD
€ 0.00
1-2
1111114601
ref: 1-2
MODEL F
HEAD,CYLINDER
€ 237.50
2
1114114311
ref: 2
GASKET,CYLINDER HEAD
€ 39.50
3
0831616085
ref: 3
NUT 8MM
€ 3.00
4
0916008053
ref: 4
WASHER (8.5X19X2.3)
€ 2.00
5-1
0910808155
ref: 5-1
MODEL E
BOLT,STUD
€ 3.00
5-2
0910808145
ref: 5-2
MODEL F
STUD
€ 4.00
6-1
NOTUSED
ref: 6-1
NOT USED
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6-2
0948200114
ref: 6-2
E4
SPARK PLUG (NGK,BR8EV)
€ 81.50
7-1
1121014303
ref: 7-1
MODEL E
CYLINDER
€ 439.00
7-2
1121014600
ref: 7-2
MODEL F
CYLINDER
€ 511.50
8
1124114600
ref: 8
GASKET,CYLINDER (MCA)
€ 17.00
9
0910808142
ref: 9
BOLT,STUD
€ 3.00
10
0910808143
ref: 10
BOLT,STUD
€ 3.00
11
0910808144
ref: 11
BOLT,STUD
€ 4.50
12
0910808155
ref: 12
BOLT,STUD
€ 3.00
13
0421111169
ref: 13
PIN
€ 2.00
14
0831616085
ref: 14
NUT 8MM
€ 3.00
15
1315014200
ref: 15
VALVE ASSEMBLY,REED
€ 97.00
16
1315214200
ref: 16
STOPPER,REED VALVE
€ 97.00
17
1315314200
ref: 17
VALVE,REED
€ 15.50
18
0211203088
ref: 18
SCREW
€ 1.50
19
0110706208
ref: 19
BOLT
€ 2.00
20
1311014600
ref: 20
PIPE,INTAKE
€ 43.00
21
0940256306
ref: 21
CLAMP
€ 3.50
22
1140014872
ref: 22
OPT
GASKET (MCA)
€ 105.00
