REAR BRAKE
RM250 1985 (F)

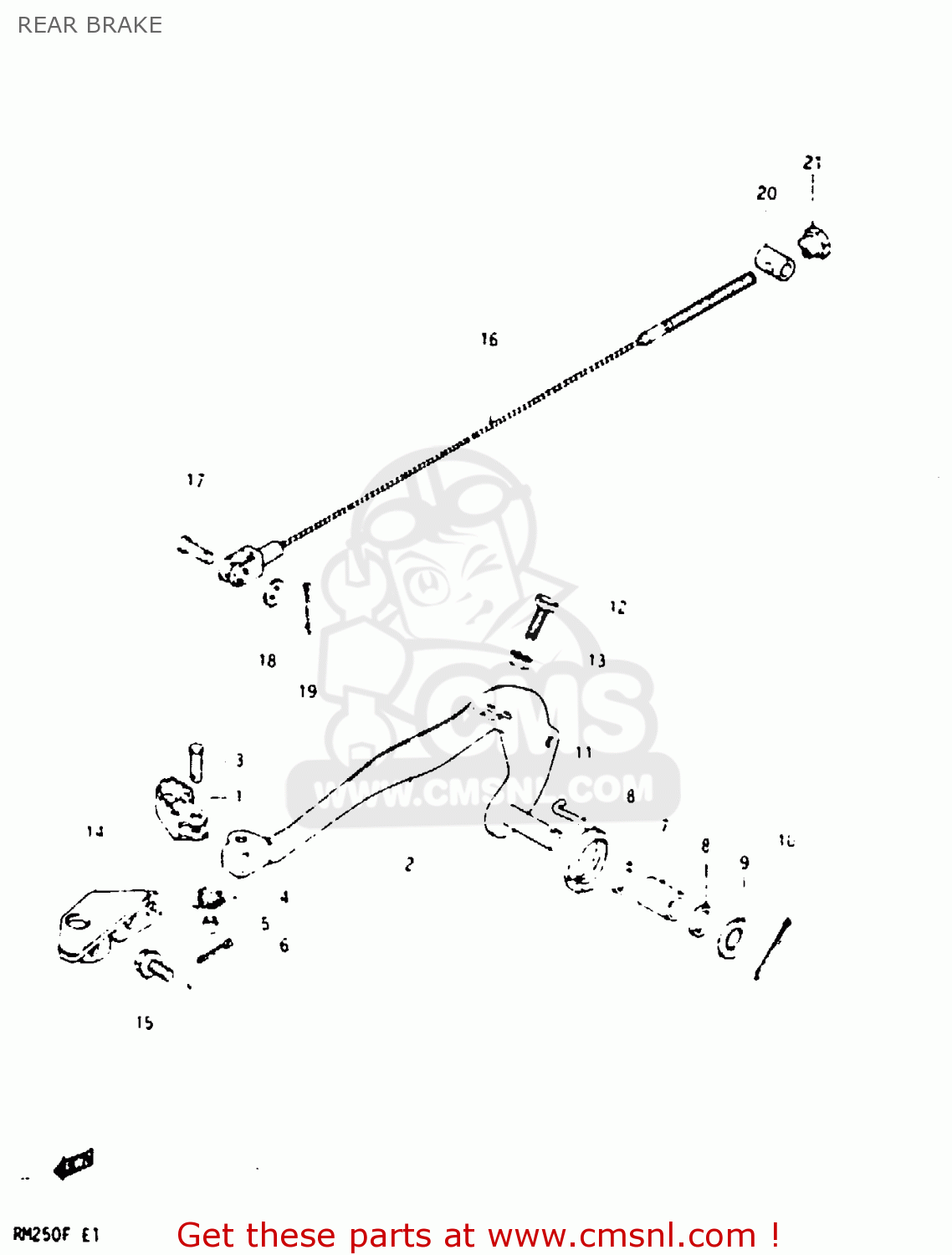

Rear brake diagram RM250 1985 (F)
REAR BRAKE RM250 1985 (F)
×
prices are in EUR
ref
part #
description
quantity
1
4311014130
ref: 1
PEDAL,BRAKE
€ 6.00
2
4312014600
ref: 2
ARM,BRAKE PEDAL
€ 73.00
3
0920006038
ref: 3
PIN
€ 2.00
4
0944411004
ref: 4
SPRING
€ 3.00
5
0918006137
ref: 5
SPACER(9.2X9X6.5)
€ 2.50
6
0411120158
ref: 6
PIN
€ 1.50
7
0931912022
ref: 7
BUSHING
€ 19.50
8
0928012008
ref: 8
O RING(D:2.4,ID:12.3)
€ 3.00
9
0821112223
ref: 9
WASHER
€ 2.50
10
0411130208
ref: 10
PIN 30X20
€ 1.50
11
0944310030
ref: 11
SPRING
€ 6.50
12
0913506014
ref: 12
BOLT
€ 0.00
13
0831011068
ref: 13
NUT
€ 2.50
14
4324014600
ref: 14
PROTECTOR,BRAKE PEDAL
€ 18.50
15
0151706168
ref: 15
BOLT
€ 1.50
16
5851014600
ref: 16
CABLE ASSEMBLY,REAR BRAKE
€ 20.50
17
0920005001
ref: 17
PIN(L:17.5)
€ 1.50
18
0832221068
ref: 18
WASHER
€ 2.00
19
0411120208
ref: 19
PIN 20X20
€ 1.50
20
0920913004
ref: 20
PIN
€ 7.50
21
0915006009
ref: 21
NUT (6MM)
€ 3.50
