CYLINDER (MODEL G)
RM250 1987 (H) USA (E03)

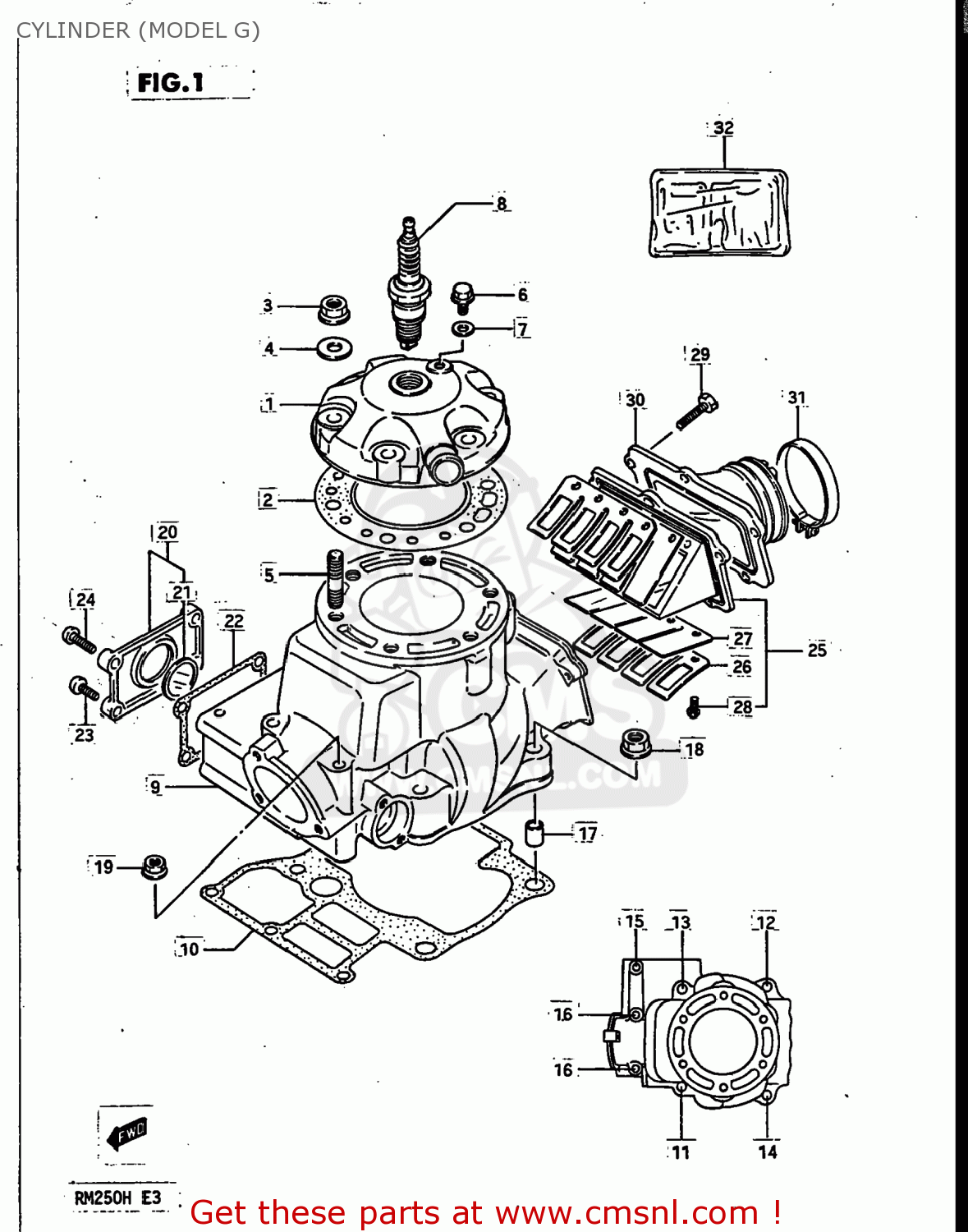

Cylinder (model g) diagram RM250 1987 (H) USA (E03)
CYLINDER (MODEL G) RM250 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111100B01
ref: 1
11111-26C02
HEAD,CYLINDER
€ 98.00
2
1114100B02
ref: 2
11141-01C01-H17
GASKET,CYLINDER HEAD (MCA)
€ 29.50
3
0831616088
ref: 3
08316-10087
NUT
€ 2.50
4
0916008095
ref: 4
09160-08039
WASHER
€ 2.00
5
0910808142
ref: 5
BOLT,STUD
€ 3.00
6
0936006007
ref: 6
UNION
€ 3.00
7
0916806004
ref: 7
GASKET(6.2X11X1).2 (NAS)
€ 1.50
8
0948200208
ref: 8
PLUG,SPARK(NGK B-8EN)
€ 16.00
9
1121000B02
ref: 9
CYLINDER
€ 340.00
10
1124100B03
ref: 10
11241-01C10
GASKET,CYLINDER (NAS)
€ 9.50
11
0910808189
ref: 11
BOLT,STUD
€ 2.00
12
0910808143
ref: 12
BOLT,STUD
€ 3.00
13
0910808192
ref: 13
BOLT,STUD
€ 3.50
14
0910808155
ref: 14
BOLT,STUD
€ 3.00
15
0142106608
ref: 15
01421-0660A
STUD BOLT
€ 2.50
16
0142106808
ref: 16
01421-0680A
STUD BOLT
€ 2.50
17
0421111169
ref: 17
PIN
€ 2.00
18
0831616088
ref: 18
08316-10087
NUT
€ 2.50
19
0915906017
ref: 19
08319-31067
NUT
€ 2.50
20
1123000B01
ref: 20
COVER,CYLINDER
€ 37.00
21
1123201B00
ref: 21
LENS,CYLINDER COVER
€ 16.00
22
1123300B00
ref: 22
11233-01C00
GASKET,CYLINDER COVER (MCA)
€ 2.50
23
0211206168
ref: 23
02112-06167
SCREW
€ 2.50
24
0211206208
ref: 24
02112-06207
SCREW
€ 2.00
25
1315014200
ref: 25
13150-01C00
VALVE ASSEMBLY,REED
€ 97.00
26
1315214200
ref: 26
13150-01C00
STOPPER,REED VALVE
€ 97.00
27
1315314200
ref: 27
VALVE,REED
€ 15.50
28
0211203088
ref: 28
02112-03087
SCREW
€ 1.50
29
0110706208
ref: 29
01500-06207
BOLT
€ 2.00
30
1311000B00
ref: 30
PIPE,INTAKE
€ 30.50
31
0940256208
ref: 31
09402-56901
CLAMP
€ 3.50
32
1140000860
ref: 32
11400-00865
GASKET SET (MCA)
€ 85.00
32
1140000860
ref: 32
11400-00865
GASKET SET (MCA)
€ 85.00
