GEAR SHIFTING
RM250 1987 (H) USA (E03)

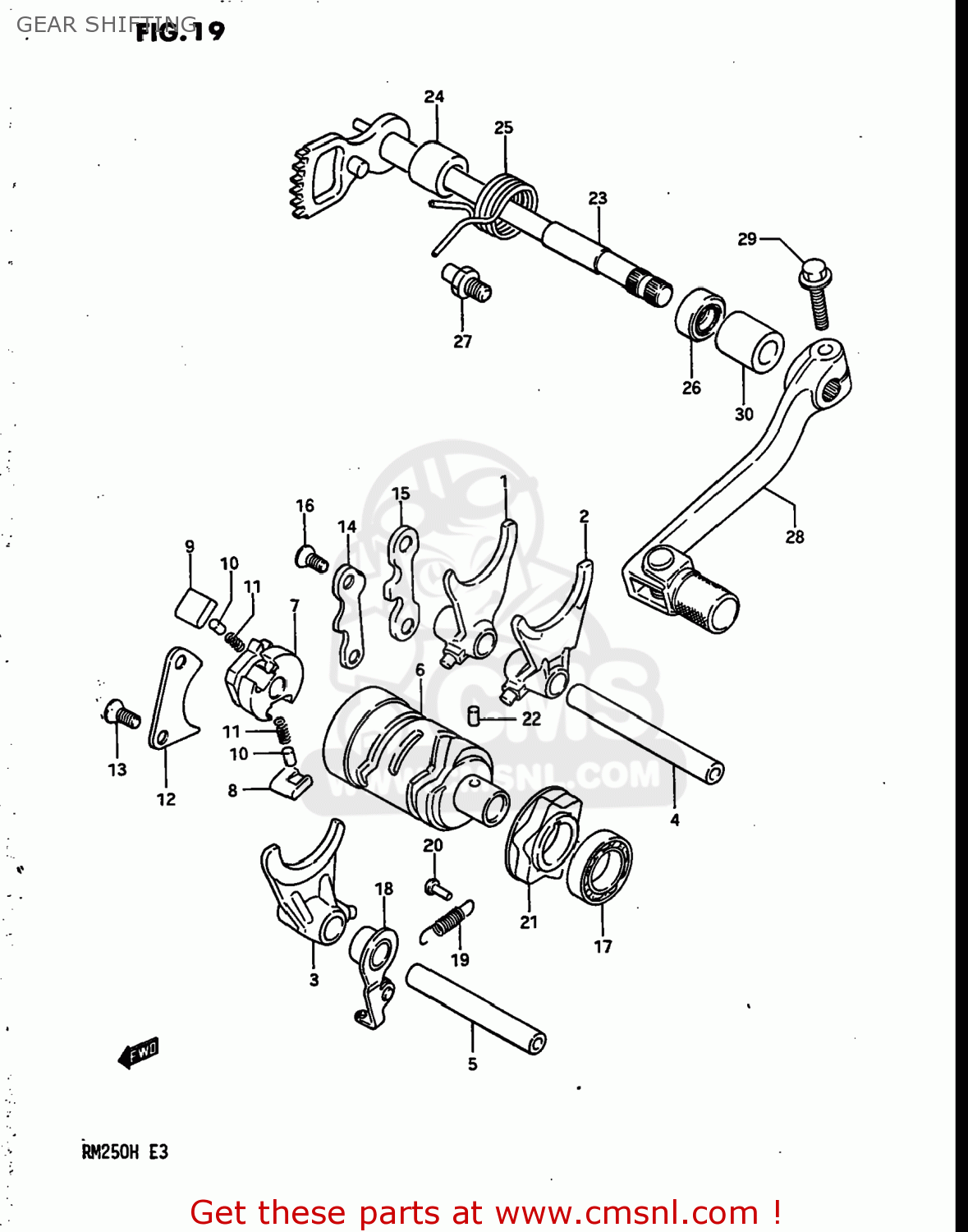

Gear shifting diagram RM250 1987 (H) USA (E03)
GEAR SHIFTING RM250 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521114310
ref: 1
25211-14311
FORK,GEAR SHIFT NO.1
€ 51.50
2
2522114310
ref: 2
25221-14311
FORK,GEAR SHIFT NO.2
€ 67.50
3
2523114311
ref: 3
25231-14X00
FORK,GEAR SHIFT NO.3
€ 68.50
4
2541114330
ref: 4
25411-14331
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542114330
ref: 5
SHAFT,GEAR SHIFT FORK NO.2
€ 10.00
6
2531014311
ref: 6
25310-14312
CAM,GEAR SHIFT
€ 332.00
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334200
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533116500
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534114310
ref: 14
GUIDE,GEAR SHIFTING CABLE
€ 7.50
15
2534114500
ref: 15
GUIDE,GEAR SHIFT CAM
€ 8.50
16
0212206128
ref: 16
02122-06127
SCREW
€ 3.00
17
0811369030
ref: 17
BEARING
€ 14.00
18
2535014311
ref: 18
STOPPER,GEAR SHIFTING CAM
€ 8.50
19
0944306049
ref: 19
SPRING
€ 4.50
20
0922304001
ref: 20
RIVET
€ 1.50
21
2538114310
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.00
22
0422104089
ref: 22
PIN
€ 1.50
23
2551000B00
ref: 23
25510-00BV0
SHAFT COMP,GEAR SHIFTING
€ 76.50
24
0918012083
ref: 24
SPACER(12X20X15.3)
€ 2.50
25
0944426013
ref: 25
SPRING
€ 3.50
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
2567101000
ref: 27
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
28
2560014311
ref: 28
25600-14321
LEVER ASSEMBLY,GEAR SHIFTING
€ 65.00
29
0151706258
ref: 29
01550-06257
BOLT
€ 2.50
30
0918012108
ref: 30
CUSHION 12X20X20
€ 3.50
