ELECTRICAL (MODEL G)

RM250 1987 (H) USA (E03)

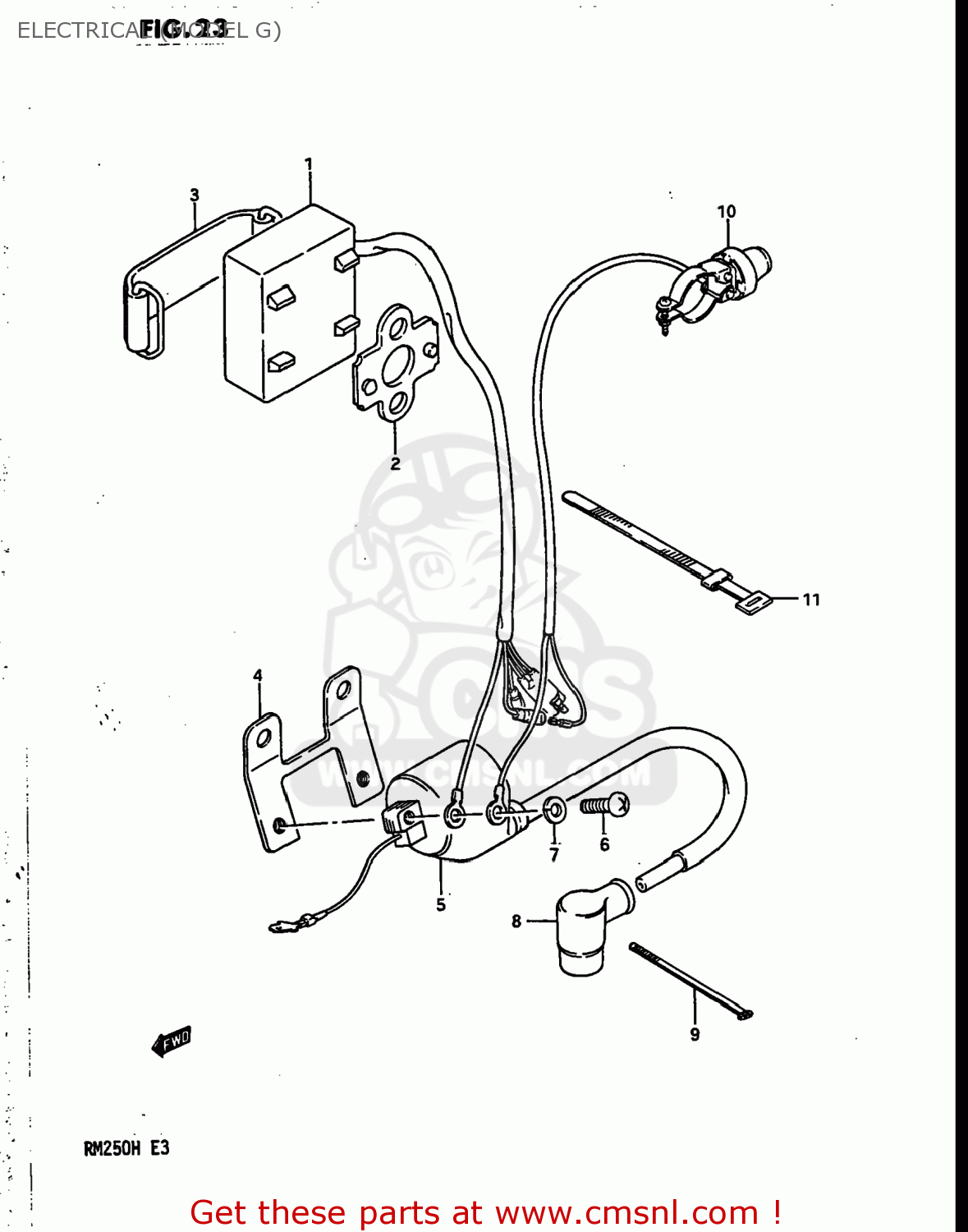

Electrical (model g) diagram RM250 1987 (H) USA (E03)

ELECTRICAL (MODEL G) RM250 1987 (H) USA (E03)

ELECTRICAL (MODEL G) RM250 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290000B00
ref: 1

UNIT ASSY,CDI

€ 269.00

2

3294114300
ref: 2

PROTECTOR,CDI UNIT

€ 4.00

3

3294214300
ref: 3
32942-14301

BAND

€ 10.00

4

3341601B01
ref: 4

BRACKET,IGNITION COIL

€ 6.50

5

3341014600
ref: 5
33410-01X50

COIL ASSEMBLY,IGNITION

€ 90.00

6

0211206206
ref: 6
02112-0620A

SCREW

€ 2.00

7

0832121066
ref: 7
08321-0106A

WASHER,LOCK

€ 2.00

8

3351041111
ref: 8
33510-20A02

CAP,SPARK PLUG

€ 23.00

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10
37820-14X50

SWITCH ASSEMBLY

€ 24.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
