REAR SWINGING ARM (MODEL H)
RM250 1987 (H) USA (E03)

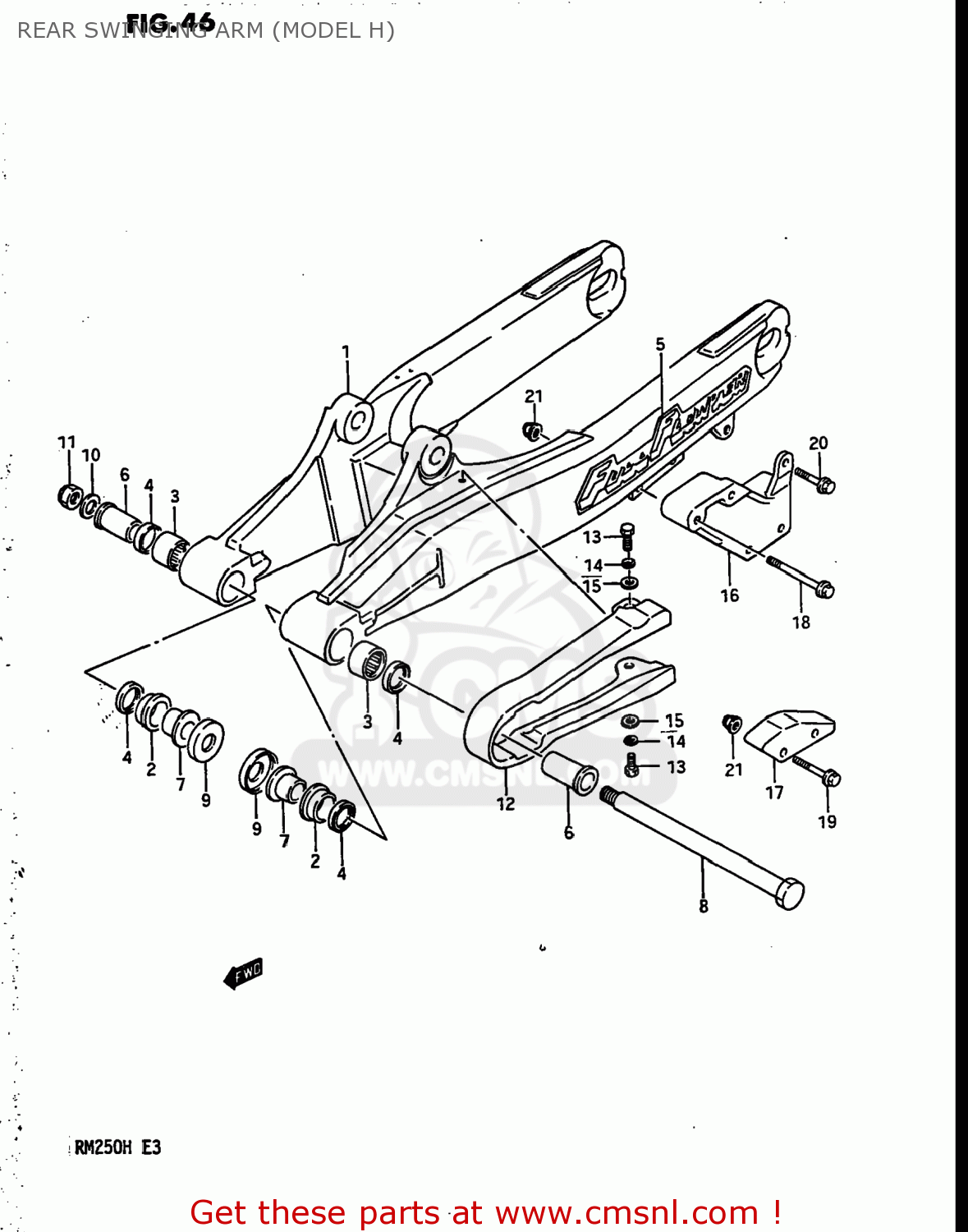

Rear swinging arm (model h) diagram RM250 1987 (H) USA (E03)
REAR SWINGING ARM (MODEL H) RM250 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100000B30
ref: 1
SWING ARM ASSEMBLY,REAR
€ 858.00
2
6126140402
ref: 2
61261-27C00
BUSHING,REAR SWING ARM PIVOT
€ 26.00
3
0926320039
ref: 3
BEARING(20X27X30)
€ 21.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
6838119A1097J
ref: 5
68381-27C00-97J
LABEL (FRONT CARRIER WARNING)
€ 6.50
6
6125114600
ref: 6
SPACER,RR SWINGING ARM PIVOT
€ 22.50
7
6125214100
ref: 7
SPACER,RR SWGARM PIVOT INNER
€ 12.50
8
6121100B00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 30.00
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
€ 4.00
10
0916014009
ref: 10
WASHER(14.5X29X2.3)
€ 3.50
11
0915914019
ref: 11
NUT
€ 8.50
12
6127301B01
ref: 12
61273-26C00
BUFFER,CHAIN TOUCH DEFLECTOR
€ 50.50
13
0110706127
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
€ 1.50
16
6134101B02
ref: 16
61341-01B03
GUIDE,CHAIN
€ 32.50
17
6134801B03
ref: 17
DEFENSE,CHAIN GUIDE
€ 18.00
18
0151706558
ref: 18
01550-06557
BOLT
€ 2.50
19
0151706458
ref: 19
01550-06457
BOLT,UNDER
€ 2.50
20
0151706208
ref: 20
01550-06207
BOLT,REAR
€ 2.50
21
0831931068
ref: 21
08319-31067
NUT
€ 2.50
