CRANKCASE COVER-WATER PUMP (MODEL H)
RM250 1987 (H)

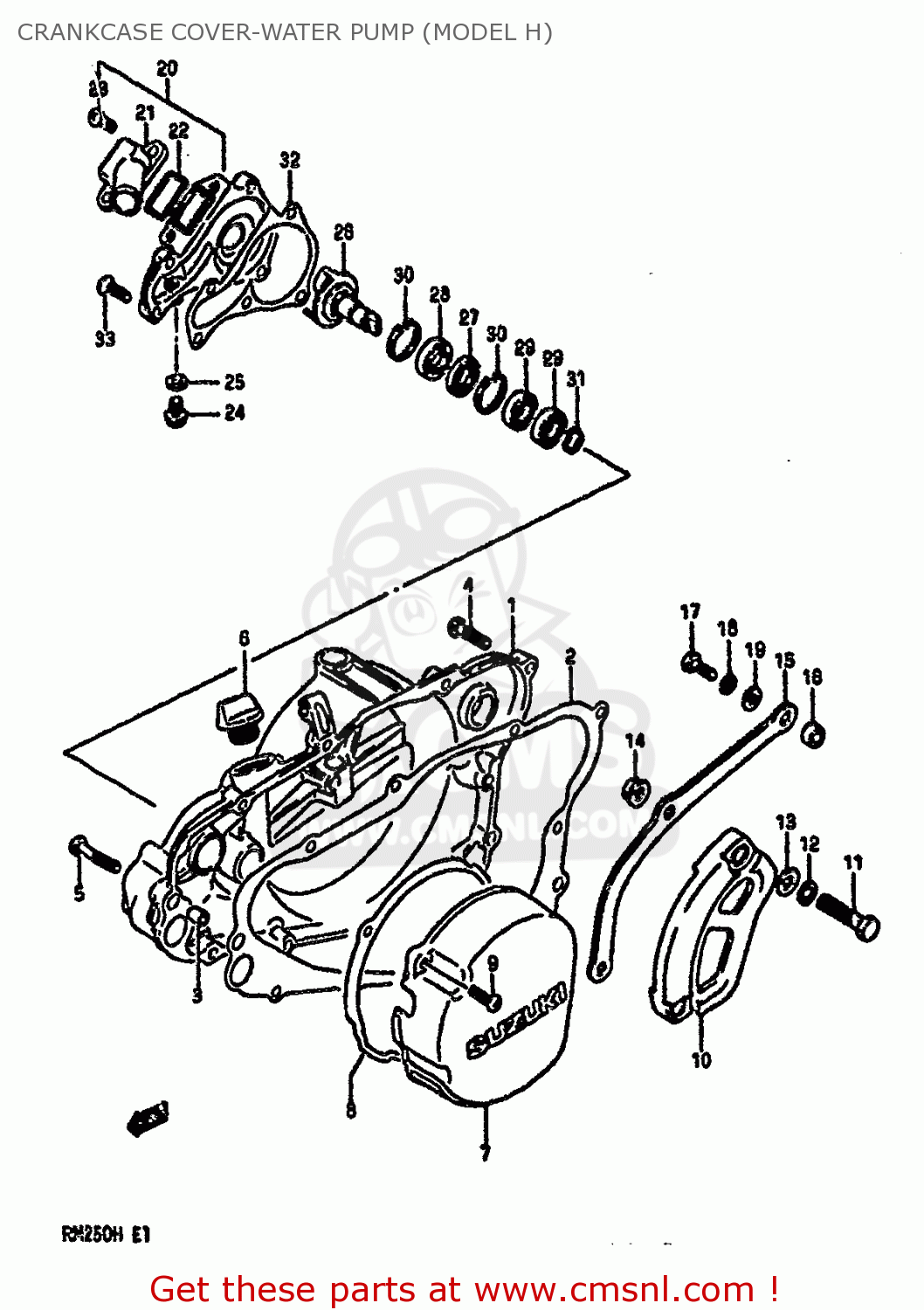

Crankcase cover-water pump (model h) diagram RM250 1987 (H)
CRANKCASE COVER-WATER PUMP (MODEL H) RM250 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
1134100B20
ref: 1
COVER,CLUTCH
€ 185.50
2
1148200B20
ref: 2
GASKET,CLUTCH COVER
€ 28.50
3
0421109129
ref: 3
PIN
€ 2.00
4
0211206258
ref: 4
SCREW
€ 2.00
5
0211206357
ref: 5
SCREW
€ 2.50
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
1135100B20
ref: 7
COVER,MAGNETO
€ 140.00
8
1148300B20
ref: 8
GASKET,MAGNETO COVER (MCA)
€ 7.50
9
0211205168
ref: 9
SCREW
€ 2.50
10
1136000B00
ref: 10
COVER,SPROCKET
€ 19.50
11
0110708307
ref: 11
BOLT
€ 2.50
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
WASHER
€ 2.00
14
0831616088
ref: 14
NUT
€ 2.50
15-1
2764100B01
ref: 15-1
FOR NT:14
PLATE,FR CHAIN GUIDE
€ 11.50
15-2
2764100B10
ref: 15-2
OPT FOR NT:13
PLATE,FRONT CHAIN GUIDE
€ 8.50
15-3
2764100B20
ref: 15-3
OPT FOR NT:15
PLATE,FRONT CHAIN GUIDE
€ 10.00
16
0918006141
ref: 16
SPACER (6.5X12X8)
€ 4.00
17
0110706205
ref: 17
BOLT
€ 2.00
18
0832121064
ref: 18
WASHER,LOCK
€ 2.00
19
0832221064
ref: 19
WASHER
€ 2.00
20
1741000B20
ref: 20
CASE ASSEMBLY,WATER PUMP
€ 107.00
21
1742100B20
ref: 21
CONNECTOR,WATER INLET
€ 32.50
22
1741414300
ref: 22
O RING,WATER PUMP CONNECTOR
€ 3.00
23
0211206208
ref: 23
SCREW
€ 2.00
24
1741514300
ref: 24
BOLT,DRAIN
€ 2.00
25
0916808008
ref: 25
GASKET 8.2X14X1 (NAS)
€ 1.00
26
1749100B20
ref: 26
IMPELLER,WATER PUMP
€ 22.50
27
0928212006
ref: 27
SEAL,OIL(12X24X3.6)
€ 7.00
28
0928912004
ref: 28
SEAL,OIL(12X24X6.4)
€ 9.00
29
0926210004
ref: 29
BEARING(10X22X6)
€ 20.50
30
0833141246
ref: 30
CIRCLIP
€ 2.50
31
0833131106
ref: 31
CIRCLIP,10MM
€ 2.00
32
1743100B20
ref: 32
GASKET,WATER PUMP CASE (MCA)
€ 8.50
33
0212206208
ref: 33
SCREW
€ 2.00
