REAR WHEEL (MODEL G)
RM250 1987 (H)

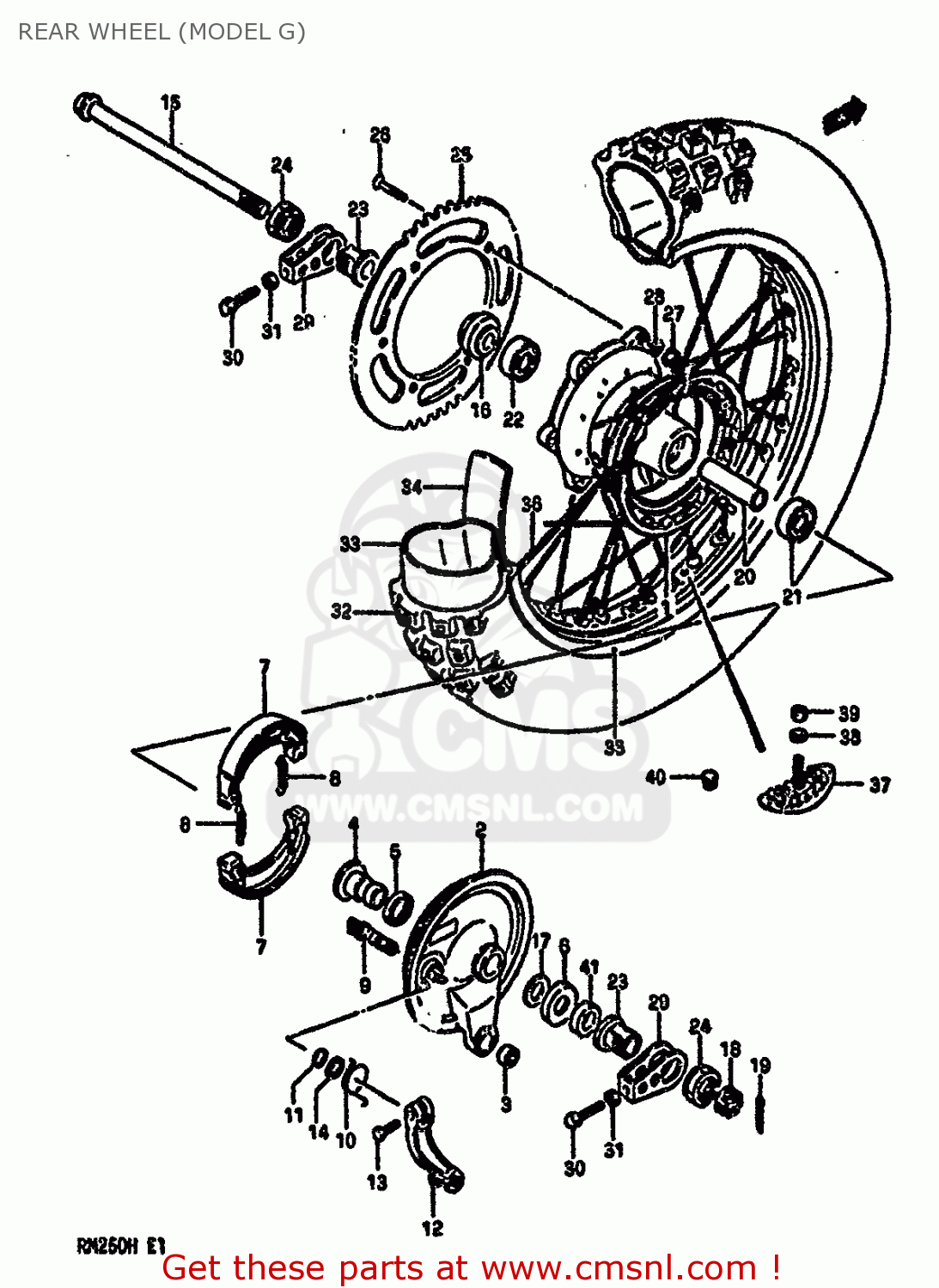

Rear wheel (model g) diagram RM250 1987 (H)
REAR WHEEL (MODEL G) RM250 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
6411014600
ref: 1
DRUM,REAR HUB
€ 299.50
2
6420014860
ref: 2
PANEL SET
€ 211.00
3
6435240401
ref: 3
SPHERICAL BRNG,TORQUE LINK
€ 69.50
4
6421314600
ref: 4
SPACER,REAR HUB PANEL
€ 28.50
5
0928524001
ref: 5
SEAL,OIL(24X31X5)
€ 4.50
6
6484537200
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
€ 12.00
7
5441014100
ref: 7
SHOE,BRAKE
€ 21.50
8
6443014600
ref: 8
SPRING,BRAKE SHOE
€ 4.00
9
5444114101
ref: 9
CAM,FR BRAKE
€ 16.00
10
0944830007
ref: 10
SPRING
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
6445100B00
ref: 12
LEVER,RR BRAKE CAM
€ 56.50
13
0110706258
ref: 13
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
€ 1.50
15
6471100B00
ref: 15
AXLE,REAR
€ 44.50
16
6475000B00
ref: 16
SPACER COMP,REAR AXLE
€ 19.00
17
0821117361
ref: 17
WASHER
€ 2.00
18
0831441168
ref: 18
NUT
€ 4.50
19
0411140308
ref: 19
PIN,COTTER
€ 1.50
20
6473014600
ref: 20
SPACER,REAR HUB BEARING
€ 26.00
21
0812362037
ref: 21
BEARING
€ 24.50
22
0812363037
ref: 22
BEARING
€ 16.00
23
6478140600
ref: 23
SPACER,CHAIN ADJUSTER
€ 18.50
24
0914024007
ref: 24
NUT
€ 4.50
25-1
6451114600
ref: 25-1
SPROCKET,REAR (NT:50-520)
€ 129.00
25-2
6451114200
ref: 25-2
OPT
SPROCKET,REAR (NT:49)(AL)
€ 188.00
25-3
6451114610
ref: 25-3
OPT
SPROCKET,REAR
€ 126.00
26
0912008009
ref: 26
SCREW(8X40)
€ 3.00
27
0831931088
ref: 27
NUT
€ 2.50
28
0916408011
ref: 28
WASHER
€ 3.50
29
6141040600
ref: 29
ADJUSTER,CHAIN
€ 18.00
30
0910408027
ref: 30
BOLT(8X43)
€ 9.00
31
0831012088
ref: 31
NUT
€ 2.00
32
6510000B00
ref: 32
BS
TIRE
€ 0.00
33
6520040430
ref: 33
TUBE,INNER
€ 0.00
34
6526115010
ref: 34
PROTECTOR,WHEEL,INNER
€ 3.50
35
6531100B00
ref: 35
RIM,REAR WHEEL (2.15X18)(A
€ 270.50
36
6532000B00
ref: 36
SPOKE ASSY, REAR
€ 39.50
37
6527014200
ref: 37
STOPPER,BEAD
€ 38.00
38
0832211088
ref: 38
WASHER
€ 2.00
39
0831022088
ref: 39
NUT 8MM
€ 2.00
40
0925008013
ref: 40
CAP(OD:12)
€ 2.00
41
6474100B00
ref: 41
SPACER,AXLE RH
€ 9.00
