STAND-FOOTREST

RM250 1987 (H)

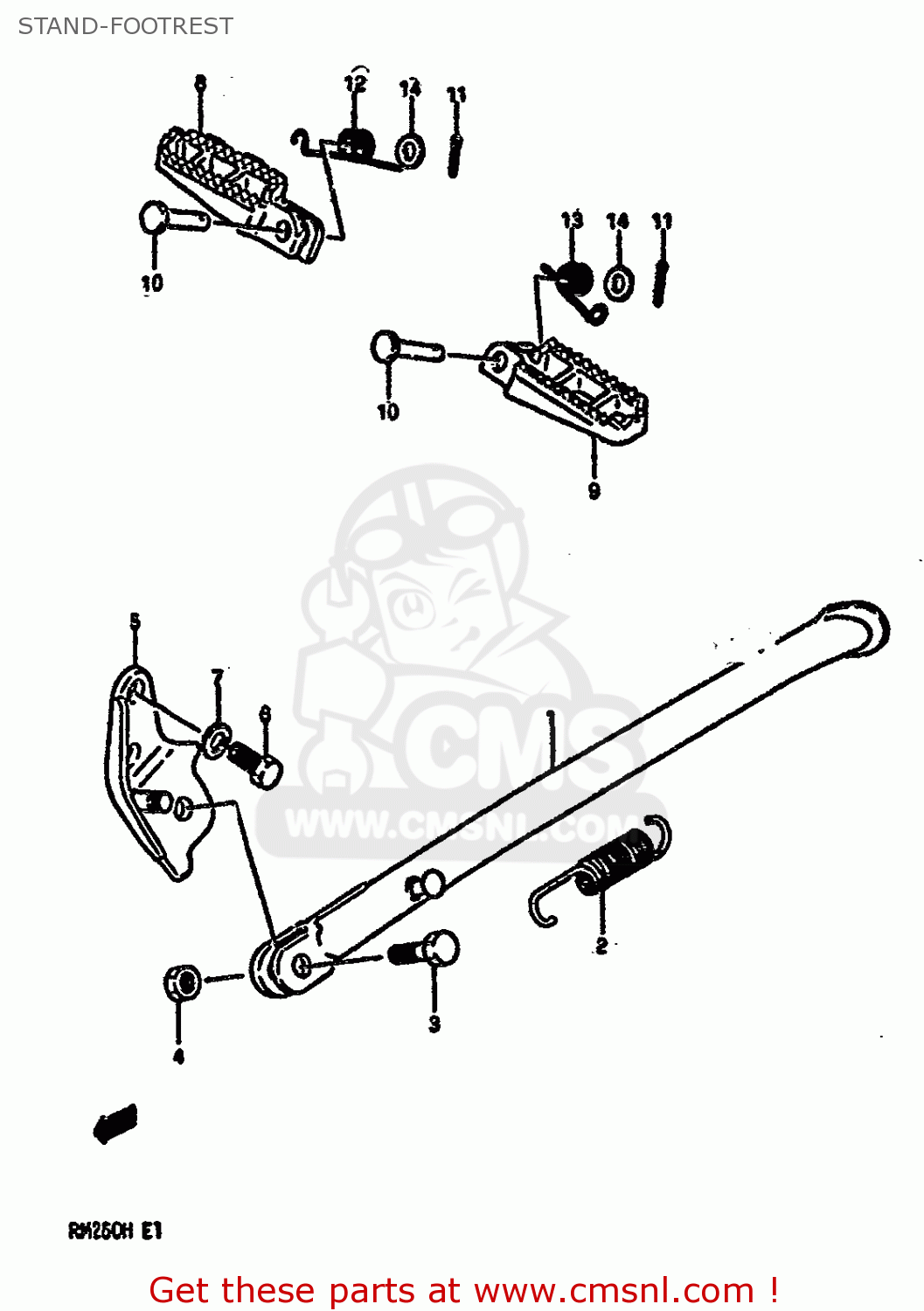

Stand-footrest diagram RM250 1987 (H)

STAND-FOOTREST RM250 1987 (H)

STAND-FOOTREST RM250 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

4231001B0019F
ref: 1

STAND,SIDE

€ 79.00

2

0944317007
ref: 2

SPRING

€ 4.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831022107
ref: 4

NUT

€ 2.50

5-1

423301440019F
ref: 5-1
MODEL G

BRACKET,SIDE STAND

€ 97.50

5-2

423301410019F
ref: 5-2
MODEL H

BRACKET,PROP STAND

€ 21.00

6

0910010118
ref: 6

BOLT(10X19)

€ 3.00

7

0832121107
ref: 7

WASHER,LOCK,10

€ 2.00

8

435511460019F
ref: 8

FOOTREST

€ 31.00

9

435614040119F
ref: 9

FOOTREST

€ 24.50

10-1

0920008035
ref: 10-1
MODEL G

PIN

€ 6.50

10-2

0920008064
ref: 10-2
MODEL H

PIN

€ 6.50

11

0411120208
ref: 11

PIN 20X20

€ 1.50

12

0944814014
ref: 12

SPRING

€ 3.00

13

0944814018
ref: 13

SPRING

€ 4.00

14

0832221088
ref: 14

WASHER

€ 2.00
