CRANKSHAFT (MODEL H)
RM250 1987 (H)

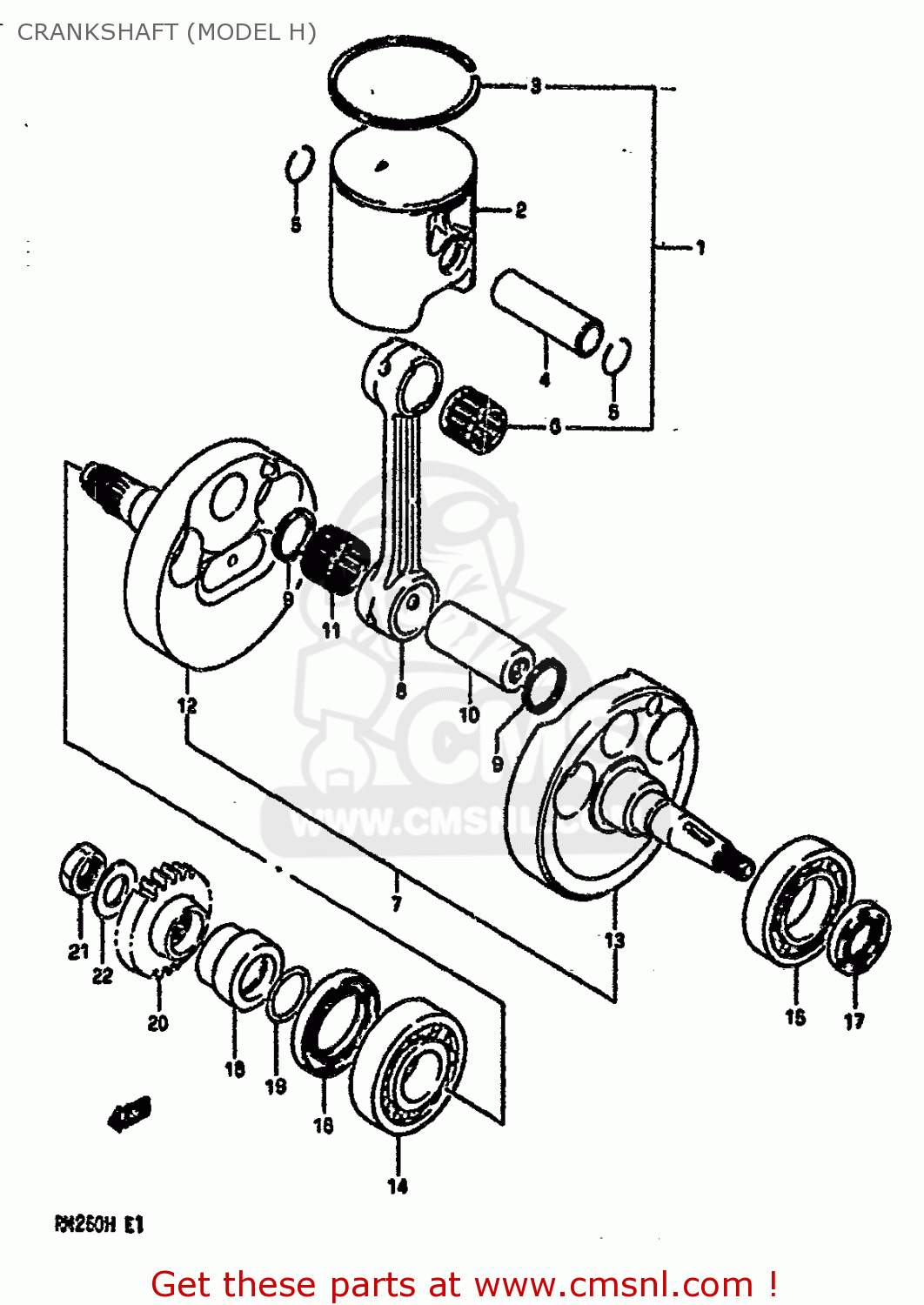

Crankshaft (model h) diagram RM250 1987 (H)
CRANKSHAFT (MODEL H) RM250 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
1210100840
ref: 1
OPT
PISTON SET (STD)
€ 79.50
2
1211000B240F0
ref: 2
PISTON (67.00MM)
€ 76.50
3
1214141600
ref: 3
RING,PISTON
€ 22.50
4
1215100B20
ref: 4
PIN,PISTON
€ 11.00
5
0938118002A
ref: 5
CIRCLIP,PISTON PIN
€ 1.50
6
0926318016
ref: 6
BEARING(18X23X22)
€ 14.00
7
1220000B20
ref: 7
CRANKSHAFT ASSEMBLY
€ 561.50
8
1216100B00
ref: 8
CONNECTION ROD
€ 88.50
9
0916024015
ref: 9
WASHER(24X29X1.5)
€ 7.50
10
1221000B20
ref: 10
PIN COMP,CRANK
€ 26.50
11
0926324019
ref: 11
BEARING
€ 62.50
12
1222100B20
ref: 12
CRANKSHAFT,R
€ 196.50
13
1226100B20
ref: 13
CRANKSHAFT,LEFT
€ 224.50
14
0926225066
ref: 14
BEARING(25X62X17)
€ 44.50
15
0926230066
ref: 15
BEARING(30X62X16)
€ 38.00
16
0928936003
ref: 16
SEAL,OIL(36X52X8)
€ 47.00
17
0928320046
ref: 17
OIL SEAL
€ 14.50
18
1235900B20
ref: 18
SPACER,PRIMARY DRIVE GEAR
€ 16.00
19
0928022001
ref: 19
O RING(D:2.4,ID:21.8)
€ 2.00
20
2111114310
ref: 20
GEAR,PRIMARY DRIVE
€ 46.50
21
0914016019
ref: 21
NUT
€ 4.00
22
0916416002
ref: 22
WASHER
€ 3.00
