RM250 1989 (K) USA (E03)

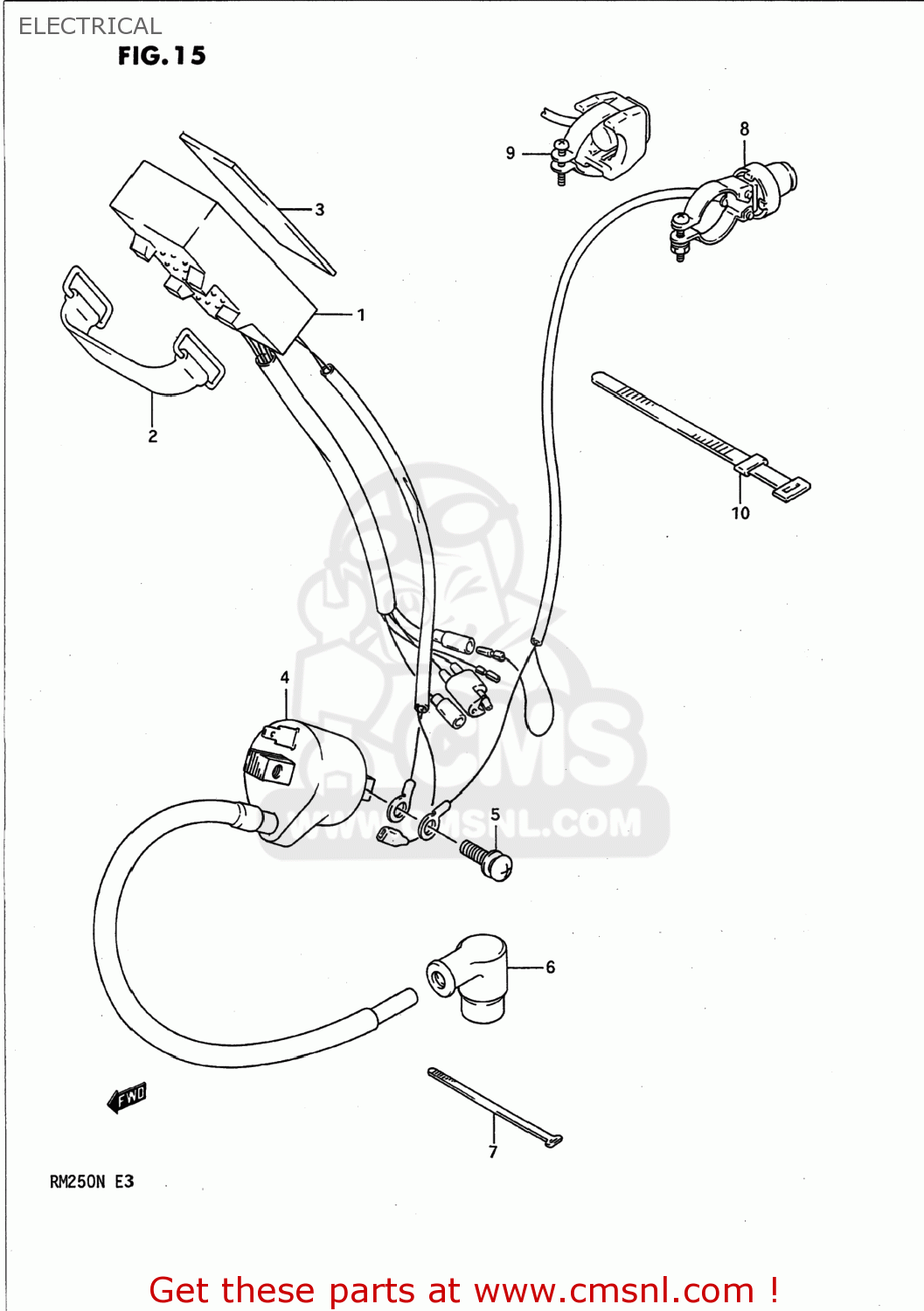

Electrical diagram RM250 1989 (K) USA (E03)
ELECTRICAL RM250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3290028C00
ref: 1-1
CDI UNIT
€ 457.00
1-2
3290028C20
ref: 1-2
CDI UNIT
€ 456.50
1-3
3290028C30
ref: 1-3
32900-28E00
CDI UNIT
€ 457.50
2-1
0946200001A
ref: 2-1
BAND
€ 8.00
2-2
3294214111
ref: 2-2
BAND(L:65)
€ 8.00
3-1
3365137000
ref: 3-1
PROTECTOR(170X95X3.0)
€ 5.00
3-1
3365137000
ref: 3-1
PROTECTOR(170X95X3.0)
€ 5.00
3-2
3365137000
ref: 3-2
PROTECTOR(170X95X3.0)
€ 5.00
3-2
3365137000
ref: 3-2
PROTECTOR(170X95X3.0)
€ 5.00
4
3341026C01
ref: 4
33410-12C00
COIL ASSEMBLY,IGNITION
€ 123.00
5
0211236206
ref: 5
02112-3620A
SCREW
€ 2.00
6
3351041111
ref: 6
33510-20A02
CAP,SPARK PLUG
€ 23.00
7
0940709402
ref: 7
CLAMP
€ 3.00
8
3782000B00
ref: 8
37820-14X50
SWITCH ASSEMBLY
€ 24.50
9
3782027C00
ref: 9
37820-14X50
SWITCH ASSEMBLY
€ 24.50
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
