RADIATOR (MODEL K/L)
RM250 1989 (K) USA (E03)

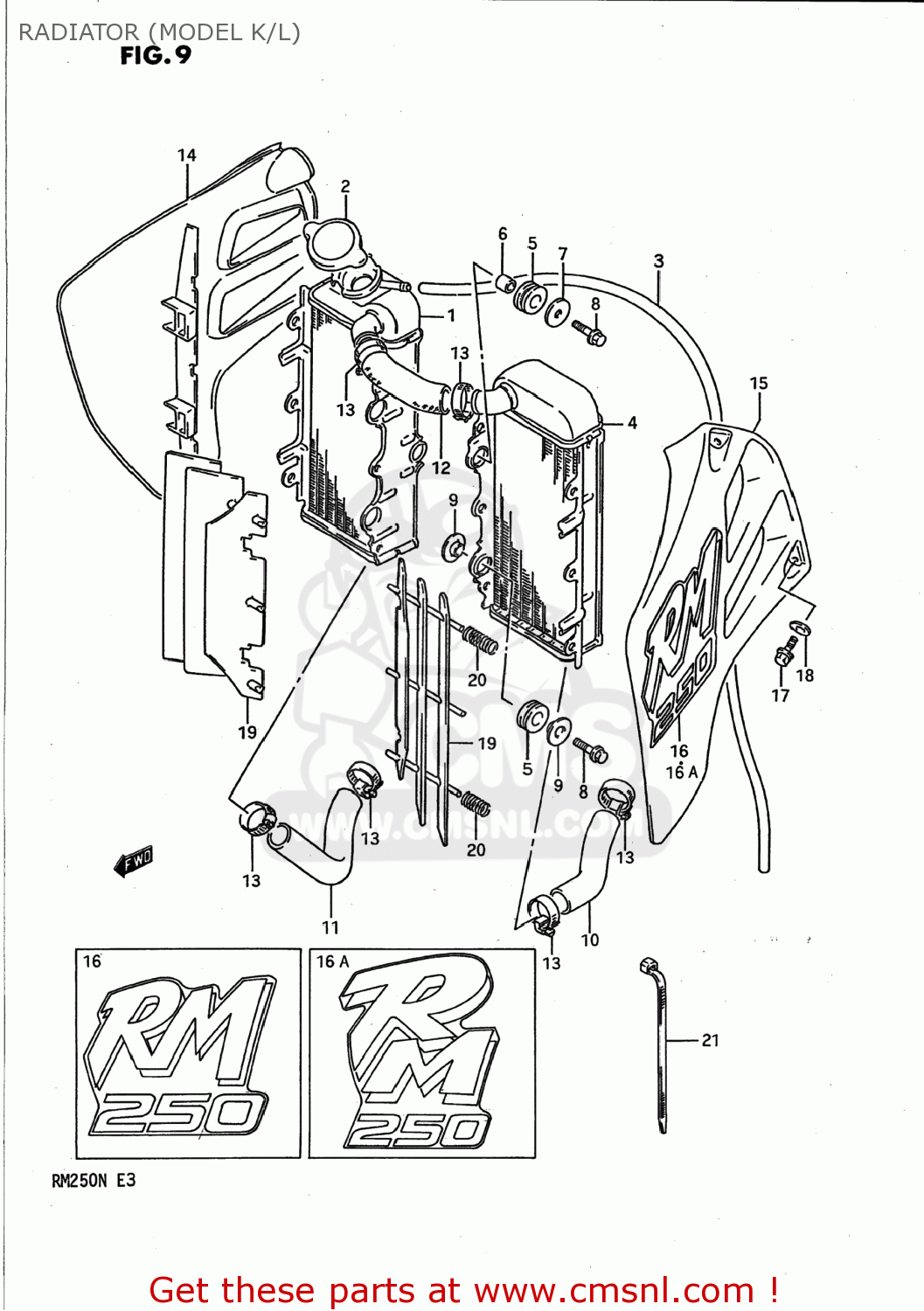

Radiator (model k/l) diagram RM250 1989 (K) USA (E03)
RADIATOR (MODEL K/L) RM250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771028C00
ref: 1
17710-28C01
RADIATOR ASSEMBLY,WATER
€ 370.50
2
1773020930
ref: 2
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
3
093515080100A
ref: 3
09351-50803-00B
HOSE
€ 10.00
4
1772026C00
ref: 4
RADIATOR,WATER,L
€ 377.00
5
1778719A00
ref: 5
CUSHION,RADIATOR LWR
€ 3.50
6-1
0918007004
ref: 6-1
SPACER(6.5X10.5X12)
€ 2.50
6-2
0918006221
ref: 6-2
SPACER(6.5X10.5X12)
€ 5.50
7
0916006002
ref: 7
09160-06114
WASHER (6.5X24X1.2)
€ 2.00
8
0154706257
ref: 8
BOLT
€ 2.50
9
1778126C00
ref: 9
WASHER,RDTR SPRT
€ 2.50
10
1785128C00
ref: 10
HOSE,RADIATOR INLET
€ 14.00
11-1
1785228C00
ref: 11-1
HOSE,RADIATOR OUTLET
€ 15.00
11-2
1785228C10
ref: 11-2
HOSE,RADIATOR OUTLET
€ 14.50
12-1
1785326C00
ref: 12-1
17851-01A00
HOSE,RADIATOR
€ 17.50
12-2
1785328C00
ref: 12-2
17851-01A00
HOSE,RADIATOR
€ 17.50
13
0940225502
ref: 13
09402-28511
CLAMP
€ 8.50
14
1776128C0025Y
ref: 14
COVER,RADIATOR,R
€ 23.00
15
1776228C0025Y
ref: 15
COVER,RADIATOR,L
€ 30.00
16
6866128C102DP
ref: 16
68661-28C30-3MB
EMBLEM,RADIATOR COVER
€ 13.00
16A
6866128C303MB
ref: 16A
EMBLEM,RADIATOR COVER
€ 13.00
17
0154706127
ref: 17
BOLT
€ 2.00
18
0916806027
ref: 18
GASKET(6.5X20X1.5) (NAS)
€ 3.50
19
1783126C00
ref: 19
LOUVER,RADIATOR
€ 17.00
20-1
0944011024
ref: 20-1
09440-11024-XC0
SPRING
€ 5.00
20-2
0944011024
ref: 20-2
09440-11024-XC0
SPRING
€ 5.00
21
0940718402
ref: 21
CLAMP(L:165)
€ 2.50
21
0940718402
ref: 21
CLAMP(L:165)
€ 2.50
