REAR MASTER CYLINDER (MODEL K)
RM250 1989 (K) USA (E03)

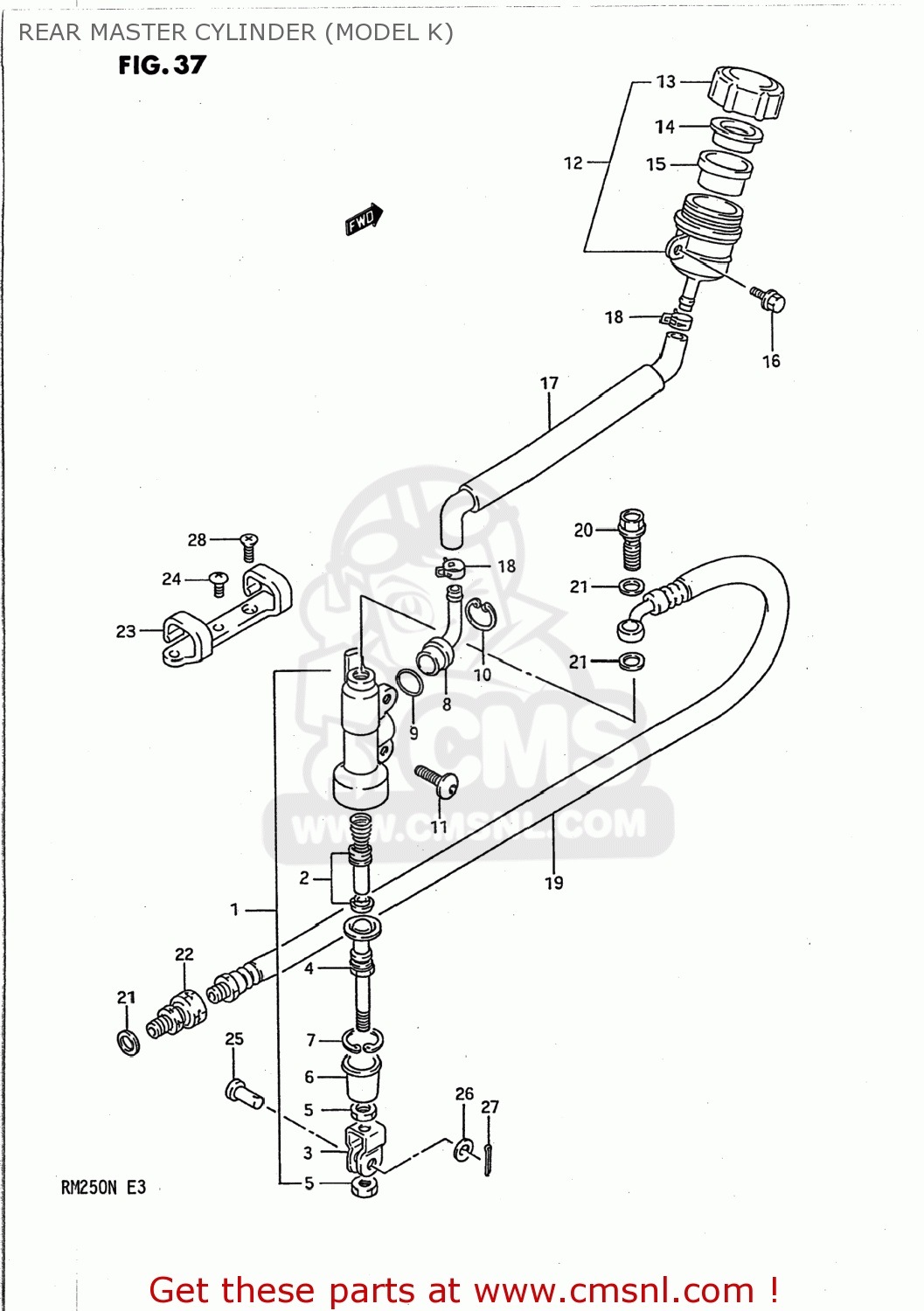

Rear master cylinder (model k) diagram RM250 1989 (K) USA (E03)
REAR MASTER CYLINDER (MODEL K) RM250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960000B23
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 190.50
2
6960034810
ref: 2
PISTON/CUP SET
€ 36.50
3
6969200B21
ref: 3
YOKE
€ 13.50
4
6967000B21
ref: 4
ROD,PUSH
€ 24.00
5
6969305A00
ref: 5
NUT
€ 1.50
6
6969100A00
ref: 6
BOOT
€ 3.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
6967200B20
ref: 8
CONNECTOR
€ 5.00
9
6968634200
ref: 9
O RING
€ 3.50
10
6967400B20
ref: 10
CIRCLIP
€ 3.00
11
0910606064
ref: 11
BOLT(6X18)
€ 6.00
12
6974000B21
ref: 12
69740-05D00
TANK ASSEMBLY,RESERVOIR
€ 42.50
13
6966900B21
ref: 13
69669-03D10
CAP
€ 11.00
14
6966800B20
ref: 14
PLATE
€ 4.00
15
6966700B20
ref: 15
DIAPHRAGM
€ 9.50
16
0151706128
ref: 16
01550-06127
BOLT
€ 2.50
17
6973100B23
ref: 17
HOSE,RESERVOIR
€ 20.50
18
6973500B20
ref: 18
CLAMP,RESERVOIR HOSE
€ 3.00
19
6948027C01
ref: 19
69480-27C02
HOSE,REAR BRAKE
€ 91.00
20
0936010017
ref: 20
BOLT UNION
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
€ 2.00
22
5929014501
ref: 22
ADAPTOR,BRAKE HOSE
€ 18.50
23
6119628C00
ref: 23
GUIDE,REAR BRAKE HOSE
€ 6.50
24
0912505042
ref: 24
SCREW(5X10)
€ 2.50
25
0920008048
ref: 25
PIN(8X20)
€ 3.00
26
0916008074
ref: 26
WASHER(8.5X13X1.6)
€ 2.50
27
0411120158
ref: 27
04111-2015A
PIN
€ 1.50
28
0912605006
ref: 28
SCREW(5X10)
€ 2.00
28
0912605006
ref: 28
SCREW(5X10)
€ 2.00
28
0912605006
ref: 28
SCREW(5X10)
€ 2.00
