REAR SWINGING ARM (MODEL N)

RM250 1989 (K) USA (E03)

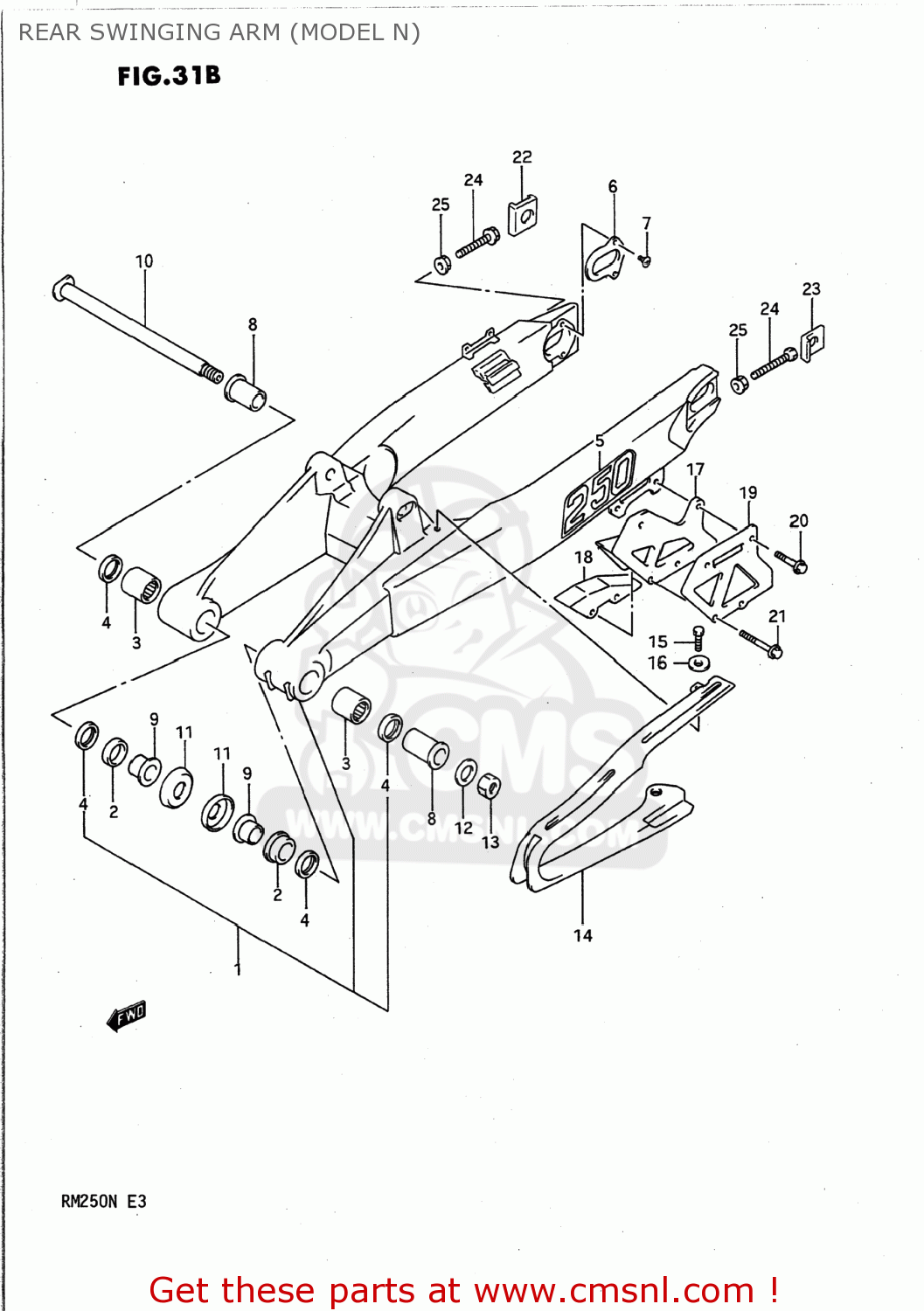

Rear swinging arm (model n) diagram RM250 1989 (K) USA (E03)

REAR SWINGING ARM (MODEL N) RM250 1989 (K) USA (E03)

REAR SWINGING ARM (MODEL N) RM250 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100028C30
ref: 1
61000-28C31

SWING ARM ASSEMBLY,REAR

€ 1,262.00

2

6126128C00
ref: 2

BUSHING,SWGARM PIVOT

€ 22.00

3

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6838128C1012R
ref: 5

EMBLEM,SWINGINGARM

€ 9.50

6

6112828C30
ref: 6

PLATE,SWING ARM,REAR

€ 13.00

7

0912005004
ref: 7
09126-05009

SCREW

€ 2.50

8

6125128C00
ref: 8
61251-05D00

SPACER,REAR SWING ARM

€ 18.50

9

6125228C00
ref: 9

SPACER,SWGARM PIVOT INNER

€ 17.50

10

6121128C00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 46.50

11

6126228C10
ref: 11

COVER,SWINGINGARM PIVOT

€ 4.50

12

0832211168
ref: 12
08322-01167

WASHER

€ 2.00

13

0915916007
ref: 13

NUT

€ 10.50

14

6127327C01
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 54.00

15

0154706167
ref: 15

BOLT

€ 2.00

16

0916906057
ref: 16

WASHER

€ 4.00

17

6134127C20
ref: 17

GUIDE,CHAIN

€ 30.50

18

6134827C20
ref: 18

DEFENSE,CHAIN GUIDE

€ 26.50

19

6134227C20
ref: 19

PLATE,CHAIN GUIDE,OUTER

€ 35.50

20

0910306146
ref: 20
09103-06143

BOLT

€ 2.50

21

0912606013
ref: 21

SCREW(6X40)

€ 5.00

22

6144528C30
ref: 22

WASHER,CHAIN ADJUSTER

€ 20.00

23

6144643D00
ref: 23

WASHER,CHAIN ADJUSTER,L

€ 29.00

24

0910008287
ref: 24

BOLT(8X50)

€ 3.00

25

0915908034
ref: 25

NUT

€ 2.00
