Buy Suzuki RM Parts Online


AIR CLEANER

RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

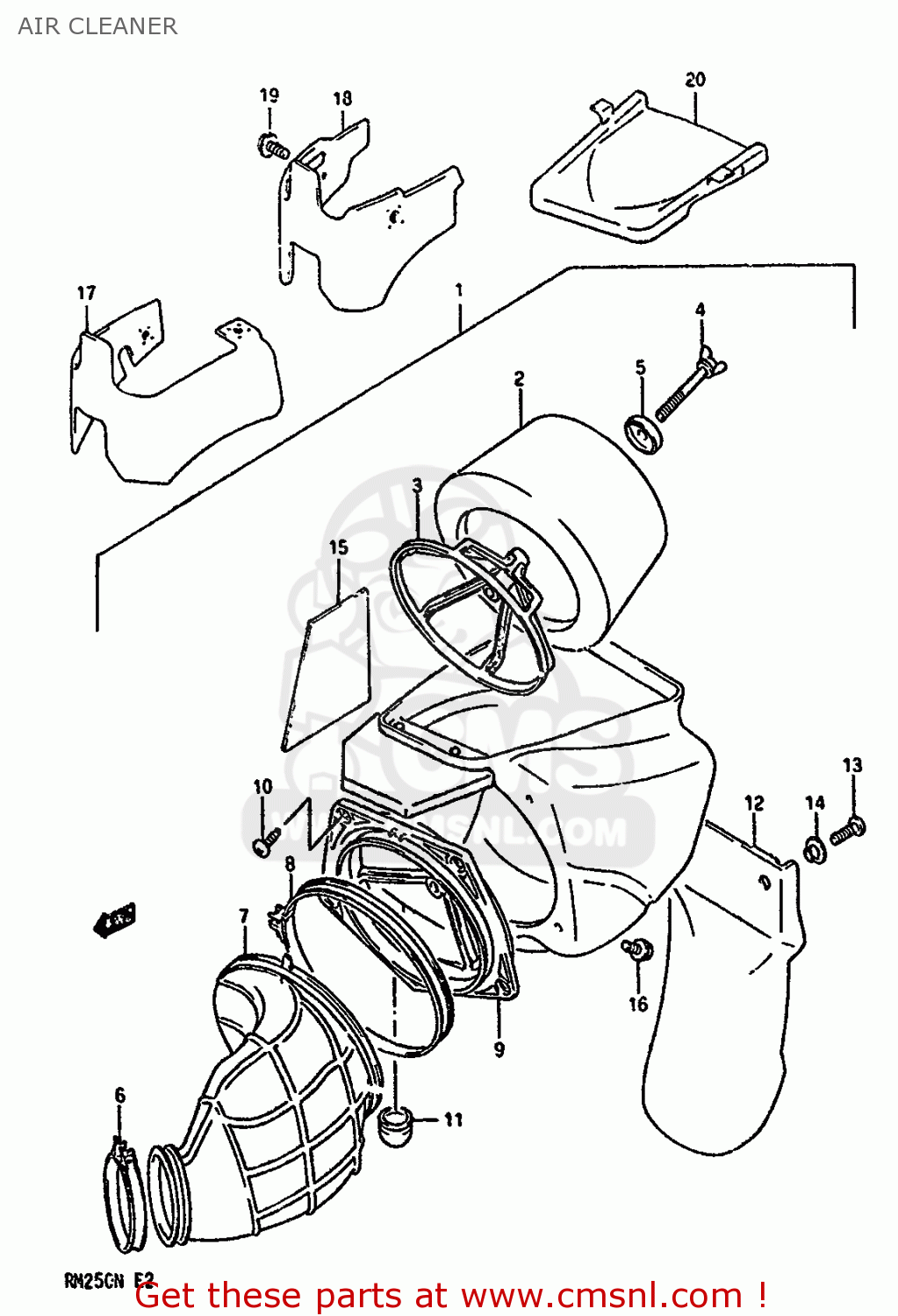

Air cleaner diagram RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

AIR CLEANER RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
AIR CLEANER RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
AIR CLEANER RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1370028C00
ref: 1-1
MODEL K
CLEANER ASSEMBLY,AIR
€ 309.00
1-2
1370028C10
ref: 1-2
MODEL L
CLEANER ASSEMBLY,AIR
€ 224.00
1-3
1370028C30
ref: 1-3
MODEL M/N
CLEANER ASSEMBLY,AIR
€ 286.00
2-1
1378000B20
ref: 2-1
MODEL K
FILTER,AIR CLEANER
€ 48.50
2-2
1378028C10
ref: 2-2
MODEL L/M/N
FILTER
1378028C10
€ 48.50
3
1379100B20
ref: 3
HOLDER,FILTER
1379100B20
€ 18.50
4
1383102B00
ref: 4
BOLT,WING
1383102B00
€ 4.00
5
1379213A01
ref: 5
WASHER,AIR CLEANER
1379213A01
€ 3.00
6
0940268208
ref: 6
CLAMP
0940268208
€ 6.00
7-1
1388128C00
ref: 7-1
MODEL K/L
TUBE,AIR CLEANER OUTLET
1388128C00
€ 50.00
7-2
1388128C20
ref: 7-2
MODEL M/N
TUBE,OUTLET
1388128C20
€ 37.00
8
1382601B20
ref: 8
CLAMP
1382601B20
€ 9.00
9
1379001B21
ref: 9
HOLDER,FILTER
€ 26.50
10
0324205124
ref: 10
SCREW
0324205124
€ 1.50
11
1387800B20
ref: 11
MODEL K/L
TUBE,DRAIN
1387800B20
€ 8.50
12
1373801B00
ref: 12
GUARD,MUD
1373801B00
€ 19.00
13
0214206167
ref: 13
SCREW
0214206167
€ 2.00
14
1383802B00
ref: 14
COLLAR
1383802B00
€ 2.50
15
1381528C30
ref: 15
MODEL M/N
TRAP,HEAT
1381528C30
€ 10.50
16
0151706204
ref: 16
BOLT 6X20
0151706204
€ 2.50
17
1373927C00
ref: 17
MODEL K
GUARD,MUD,C
1373927C00
€ 9.50
18-1
1373905000
ref: 18-1
MODEL L/M
GUARD,MUD
€ 0.00
18-2
1373943000
ref: 18-2
MODEL N
GUARD,MUD
€ 0.00
19
0913606004
ref: 19
MODEL L/M/N
SCREW(6X12)
0913606004
€ 2.00
20
1374127C10
ref: 20
MODEL L/M/N
CAP,AIR CLEANER
1374127C10
€ 17.50
