CLUTCH (MODEL N)

RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

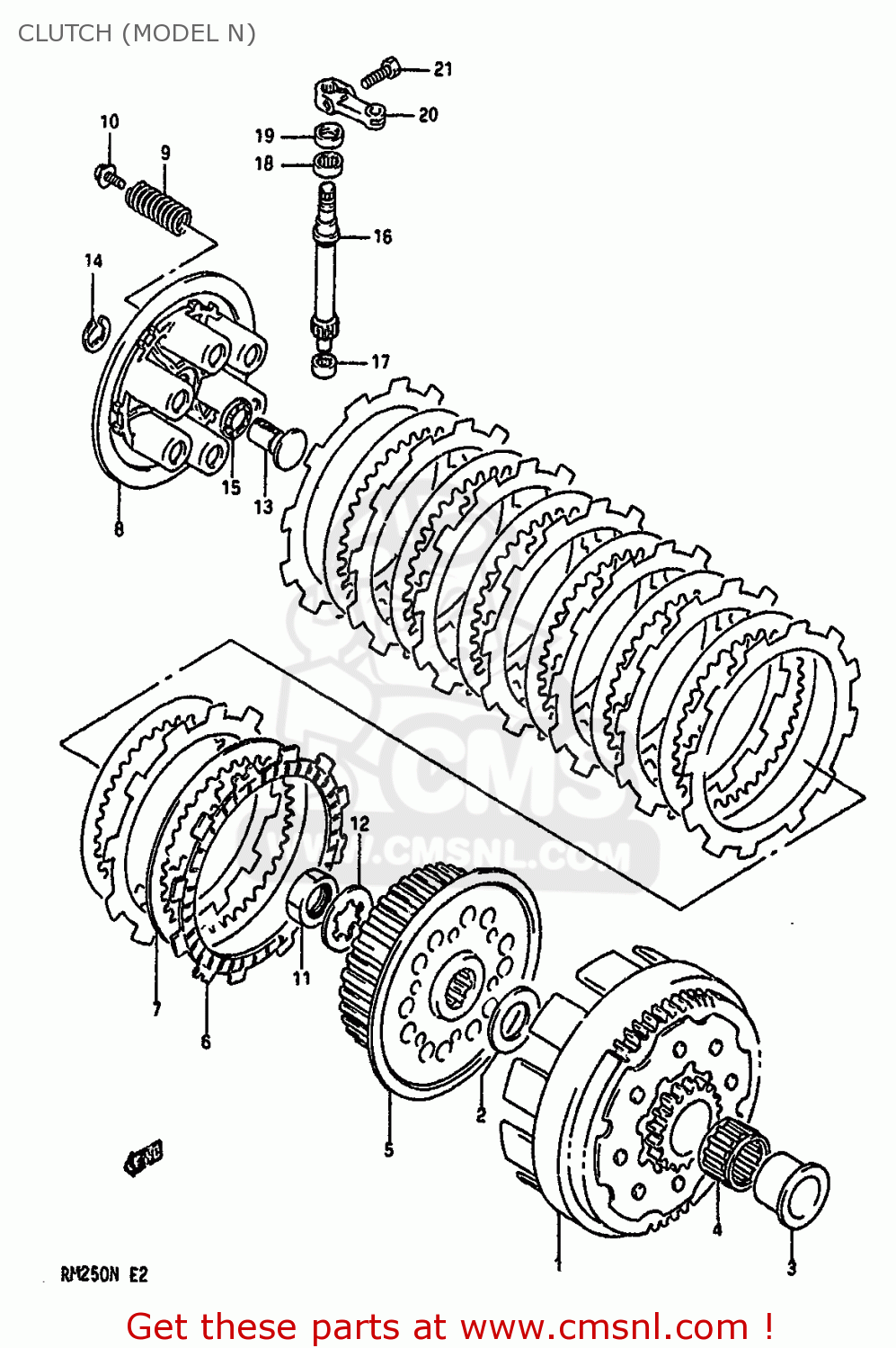

Clutch (model n) diagram RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CLUTCH (MODEL N) RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH (MODEL N) RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH (MODEL N) RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2120028C30
ref: 1
NT:61/20
GEAR ASSEMBLY,PRIMARY DRIVE
€ 54.50
2
0916022067
ref: 2
WASHER(22X38X2)
0916022067
€ 10.50
3
2125128C01
ref: 3
SPACER,PRIMARY DRIVEN GEAR
2125128C01
€ 23.50
4
0926329007
ref: 4
BEARING
0926329007
€ 27.00
5
2141028C30
ref: 5
HUB,CLUTCH SLEEVE
2141028C30
€ 93.00
6
2144107A01
ref: 6
PLATE,CLUTCH DRIVE (NAS)
2144107A01
€ 16.50
7
2145128C30
ref: 7
PLATE,CLUTCH DRIVEN T: (NAS)
2145128C30
€ 10.50
8
2146228C30
ref: 8
DISC,CLUTCH PRESSURE
2146228C30
€ 35.50
9
0944018025
ref: 9
SPRING
0944018025
€ 9.00
10
0911605019
ref: 10
BOLT(5X25)
0911605019
€ 3.00
11
0914020016
ref: 11
NUT
0914020016
€ 6.00
12
0916722021
ref: 12
WASHER,LOCK
0916722021
€ 2.00
13
2316528300
ref: 13
RACK,CLUTCH RELEASE
2316528300
€ 20.00
14
0833211088
ref: 14
E RING 8MM
0833211088
€ 2.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
0926310002
€ 8.50
16
2326100B20
ref: 16
PINION,CLUTCH RELEASE(NT:12)
2326100B20
€ 46.50
17
0926309001
ref: 17
BEARING(9X13X10)
0926309001
€ 11.00
18
0926312024
ref: 18
BEARING(12X16X10)
0926312024
€ 11.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
0928510004
€ 3.50
20
2327120900
ref: 20
ARM,CLUTCH RELEASE
2327120900
€ 20.50
21
0110706167
ref: 21
BOLT
0110706167
€ 3.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
0928510004
€ 3.50
20
2327120900
ref: 20
ARM,CLUTCH RELEASE
2327120900
€ 20.50
21
0110706167
ref: 21
BOLT
0110706167
€ 3.00
