FRAME-SEAT

RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

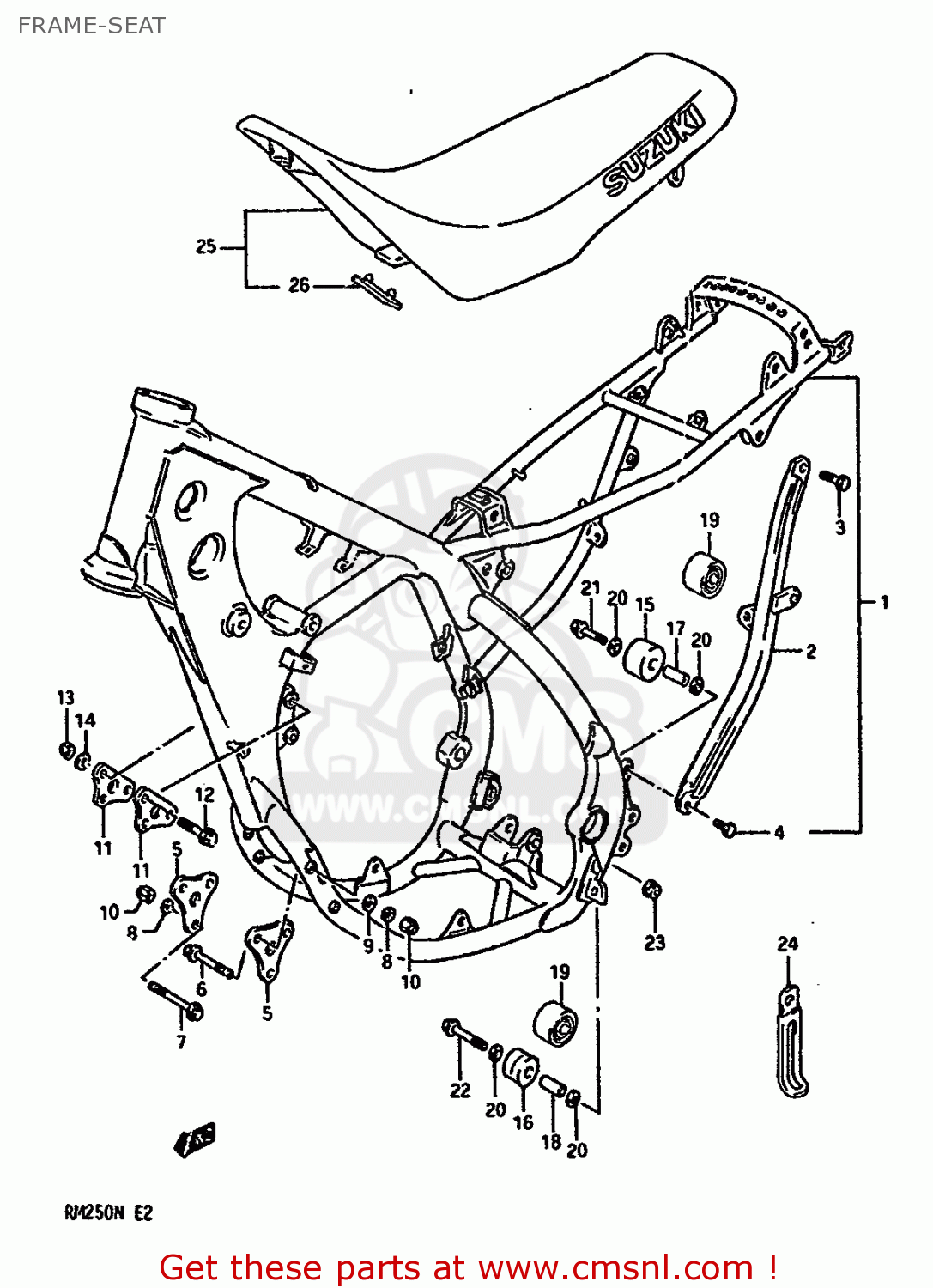

Frame-seat diagram RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

FRAME-SEAT RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRAME-SEAT RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRAME-SEAT RM250 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
411002883019F
ref: 1-1
MODEL K
FRAME SET
411002883019F
€ 1,760.00
1-2
411002884019F
ref: 1-2
MODEL L
FRAME SET
411002884019F
€ 1,669.00
1-3
41100288501AZ
ref: 1-3
MODEL M
FRAME SET
41100288501AZ
€ 827.00
1-4
41100288601AZ
ref: 1-4
MODEL N
FRAME SET (YELLOW)
41100288601AZ
€ 1,572.00
2-1
4167027C00
ref: 2-1
MODEL K
TUBE,FRAME SIDE,LEFT
4167027C00
€ 82.50
2-2
4167027C10
ref: 2-2
MODEL L/M
TUBE,FRAME SIDE,LEFT
4167027C10
€ 138.00
2-3
4167043D00
ref: 2-3
MODEL N
TUBE,FRAME SIDE,L
4167043D00
€ 138.00
3-1
0910008274
ref: 3-1
MODEL K/L/M
BOLT(8X22)
0910008274
€ 3.00
3-2
0112708257
ref: 3-2
MODEL N
BOLT
€ 2.50
4-1
0910008267
ref: 4-1
MODEL K/M
BOLT
€ 4.00
4-2
0910008284
ref: 4-2
MODEL L
BOLT(8X16)
0910008284
€ 4.00
4-3
0112708168
ref: 4-3
MODEL N
BOLT,LOWER
€ 3.00
5
4199128C00
ref: 5
PLATE,ENG MTG FR
4199128C00
€ 35.00
6-1
0910308027
ref: 6-1
MODEL K
BOLT 8X55
€ 3.50
6-2
0910308274
ref: 6-2
MODEL L/M/N
BOLT
€ 3.50
7
0910308217
ref: 7
BOLT(8X60)
0910308217
€ 3.00
8
0832121088
ref: 8
MODEL K
LOCK WASHER
0832121088
€ 2.00
9
0832211088
ref: 9
MODEL K
WASHER
0832211088
€ 2.00
10-1
0831921088
ref: 10-1
MODEL K
NUT
0831921088
€ 1.50
10-2
0915908034
ref: 10-2
MODEL L/M/N
NUT
0915908034
€ 2.00
11-1
4199328C00
ref: 11-1
MODEL K/L
PLATE,ENGINE MOUNT UPR
4199328C00
€ 20.00
11-2
4199328C20
ref: 11-2
MODEL M
PLATE,ENGINE MOUNTING
4199328C20
€ 24.50
11-3
4199328C21
ref: 11-3
MODEL N
PLATE,ENGINE MOUNTING
4199328C21
€ 24.50
12-1
0151708508
ref: 12-1
MODEL K
BOLT
0151708508
€ 3.50
12-2
0910308043
ref: 12-2
MODEL L/M/N
BOLT(8X45)
0910308043
€ 4.50
13-1
0831921088
ref: 13-1
MODEL K
NUT
0831921088
€ 1.50
13-2
0915908034
ref: 13-2
MODEL L/M/N
NUT
0915908034
€ 2.00
14
0832211088
ref: 14
MODEL K
WASHER
0832211088
€ 2.00
15
4391101B10
ref: 15
MODEL K
ROLLER,CHAIN CONTROL
4391101B10
€ 14.50
16
4391135B00
ref: 16
MODEL K
ROLLER,CHAIN CONTROL
4391135B00
€ 14.50
17
0918008136
ref: 17
MODEL K
SPACER (8.6X13.8X28)
0918008136
€ 9.00
18
0918008119
ref: 18
MODEL K
SPACER(8.6X12X25.5)
0918008119
€ 6.50
19-1
4391027C10
ref: 19-1
MODEL L/M
ROLLER,CHAIN
€ 36.50
19-2
4391027C11
ref: 19-2
MODEL N
ROLLER,CHAIN
4391027C11
€ 36.50
20-1
0821108221
ref: 20-1
MODEL K
WASHER
0821108221
€ 2.50
20-2
0821108121
ref: 20-2
MODEL L/M/N
WASHER
0821108121
€ 2.00
21
0910308083
ref: 21
BOLT(8X41)
0910308083
€ 3.50
22
0910308043
ref: 22
BOLT(8X45)
0910308043
€ 4.50
23
0831931087
ref: 23
NUT
0831931087
€ 2.50
24
0940408402
ref: 24
MODEL L/M/N
CLAMP
0940408402
€ 3.50
25-1
4510028C004UZ
ref: 25-1
MODEL K/L
SEAT SET
4510028C004UZ
€ 220.50
25-2
4510028C10E83
ref: 25-2
MODEL M
SEAT SET
4510028C10E83
€ 217.00
25-3
4510028C10K33
ref: 25-3
MODEL N
SEAT SET
4510028C10K33
€ 407.00
26
0932108009
ref: 26
CUSHION
0932108009
€ 4.00
