EXHAUST VALVE
RM250 1995 (S) USA (E03)

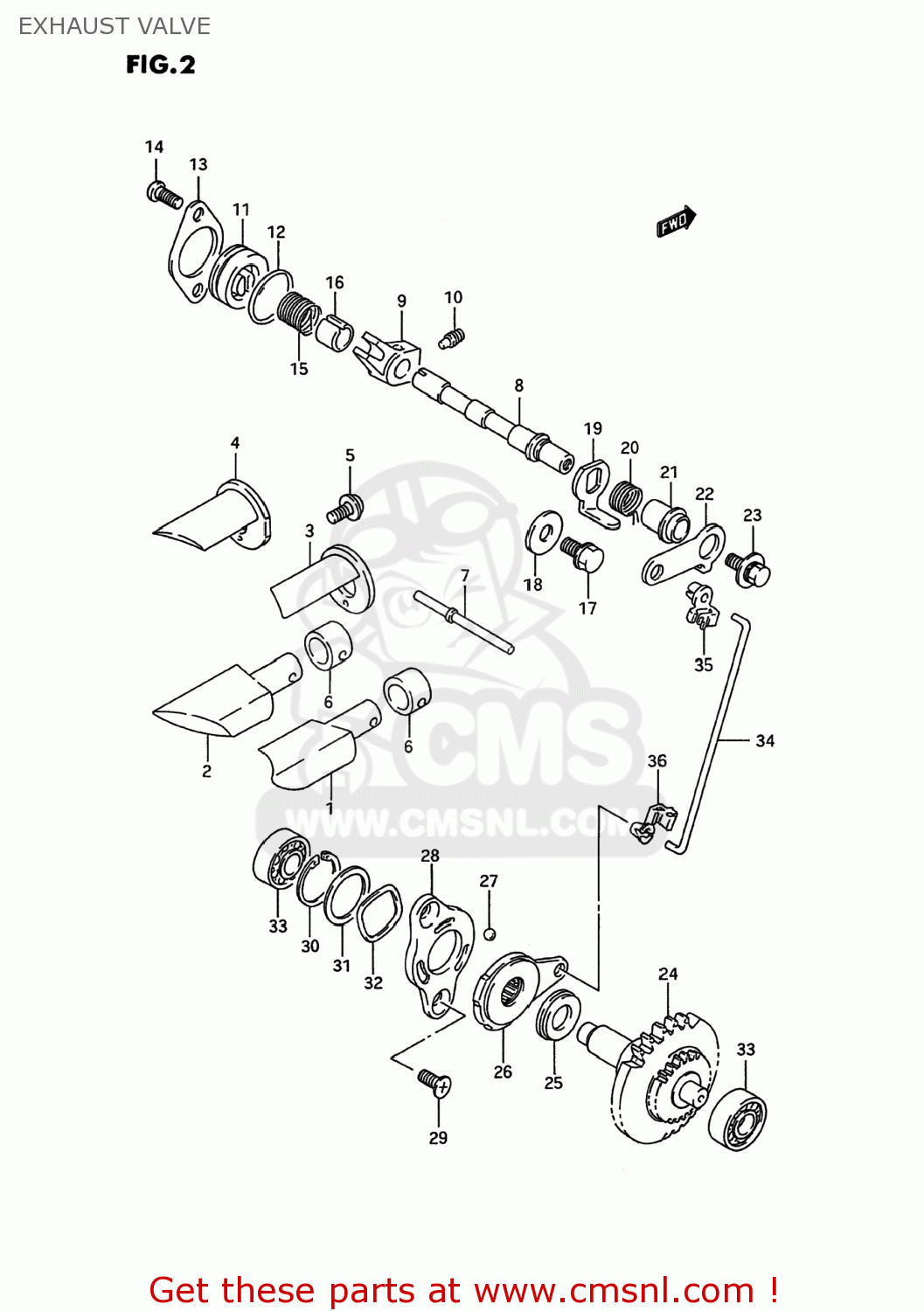

Exhaust valve diagram RM250 1995 (S) USA (E03)
EXHAUST VALVE RM250 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1125428E00
ref: 1-1
VALVE,EXHAUST,R
€ 119.50
1-2
1125428E10
ref: 1-2
VALVE,EXHAUST,R
€ 125.50
1-3
1125428E21
ref: 1-3
VALVE,EXHAUST,RIGHT
€ 204.50
2-1
1125528E00
ref: 2-1
VALVE,EXHAUST,LEFT
€ 142.50
2-2
1125528E10
ref: 2-2
VALVE,EXHAUST,L
€ 119.50
2-3
1125528E21
ref: 2-3
VALVE,EXHAUST,L
€ 135.50
3-1
1126128E00
ref: 3-1
GUIDE,EXHAUST VALVE,R
€ 117.50
3-2
1126128E10
ref: 3-2
GUIDE,EXHAUST VALVE,R
€ 143.50
3-3
1126128E21
ref: 3-3
GUIDE,EXHAUST VALVE,R
€ 149.00
4-1
1126228E00
ref: 4-1
GUIDE,EXHAUST VALVE,LEFT
€ 135.00
4-2
1126228E10
ref: 4-2
GUIDE,EXHAUST VALVE,L
€ 140.00
4-3
1126228E21
ref: 4-3
GUIDE,EXHAUST VALVE,L
€ 151.50
5-1
0211215128
ref: 5-1
02142-05127
SCREW
€ 1.50
5-2
0211215123
ref: 5-2
02142-0512A
SCREW 5X12
€ 1.50
6
1126329E00
ref: 6
SPACER,EXHAUST VALVE
€ 13.50
7-1
1125301B31
ref: 7-1
11253-01B32
PIN,EXHAUST VALVE 48.5MM
€ 20.50
7-2
1125328E20
ref: 7-2
PIN,EXHAUST VALVE
€ 16.50
8
1125928C00
ref: 8
11259-28C01
SHAFT,EXHAUST VALVE
€ 50.50
9
1126400B23
ref: 9
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
10
0913406013
ref: 10
SCREW(6X10)
€ 4.50
11
1125827C00
ref: 11
11258-27C01
CAP,EXHAUST VALVE
€ 52.00
12
0928023002
ref: 12
O RING(D:1.9,ID:22.6)
€ 2.50
13
1126500B21
ref: 13
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
14-1
0211205128
ref: 14-1
02112-05127
SCREW
€ 2.50
14-2
0150005123
ref: 14-2
01500-0512B
BOLT
€ 1.50
15
0944416007
ref: 15
SPRING
€ 6.00
16
1126900B20
ref: 16
SPACER,EXHAUST VALVE SPRING
€ 19.00
17-1
0154706107
ref: 17-1
BOLT
€ 1.50
17-2
0154706103
ref: 17-2
01547-0610B
BOLT
€ 3.00
18
0821206201
ref: 18
WASHER
€ 1.50
19-1
1126700B20
ref: 19-1
11267-00B21
LEVER,EXHAUST VALVE NO
€ 5.50
19-2
1126700B21
ref: 19-2
LEVER,EXHAUST VALVE NO.2
€ 5.50
20-1
0944415008
ref: 20-1
SPRING
€ 6.00
20-2
0944415010
ref: 20-2
SPRING
€ 5.50
21
1126801B00
ref: 21
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
22
1126628C10
ref: 22
LEVER,EXHAUST VALVE NO.1
€ 22.50
23
0911805005
ref: 23
BOLT(5X12)
€ 4.00
24
1267028C10
ref: 24
GOVERNOR ASSY,EXHAUST VALVE
€ 61.00
25
0926310002
ref: 25
BEARING(10X22X2.8)
€ 8.50
26
1268001820
ref: 26
ACTUATOR,EXHAUST VALVE
€ 47.50
27
0611106003
ref: 27
BALL
€ 1.50
28-1
1268200B20
ref: 28-1
STARTER,EXHAUST VALVE ACTUATOR
€ 25.00
28-2
1268200B02
ref: 28-2
STARTER,EXHAUST VALVE ACTUATOR
€ 21.00
29
0912005003
ref: 29
SCREW(5X10)
€ 2.00
30
0938019003
ref: 30
CIRCLIP
€ 2.50
31
0918119004
ref: 31
SHIM(19.1X25X0.3)
€ 4.00
32
0916419001
ref: 32
WASHER
€ 7.00
33
0926208005
ref: 33
BEARING(8X22X7)
€ 12.50
34-1
1268528C10
ref: 34-1
ROD,EXHAUST VALVE
€ 6.00
34-2
1268528E10
ref: 34-2
ROD,EXHAUST VALVE
€ 7.00
35
1268601B00
ref: 35
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
36
1268701B00
ref: 36
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
