MAGNETO
RM250 1995 (S) USA (E03)

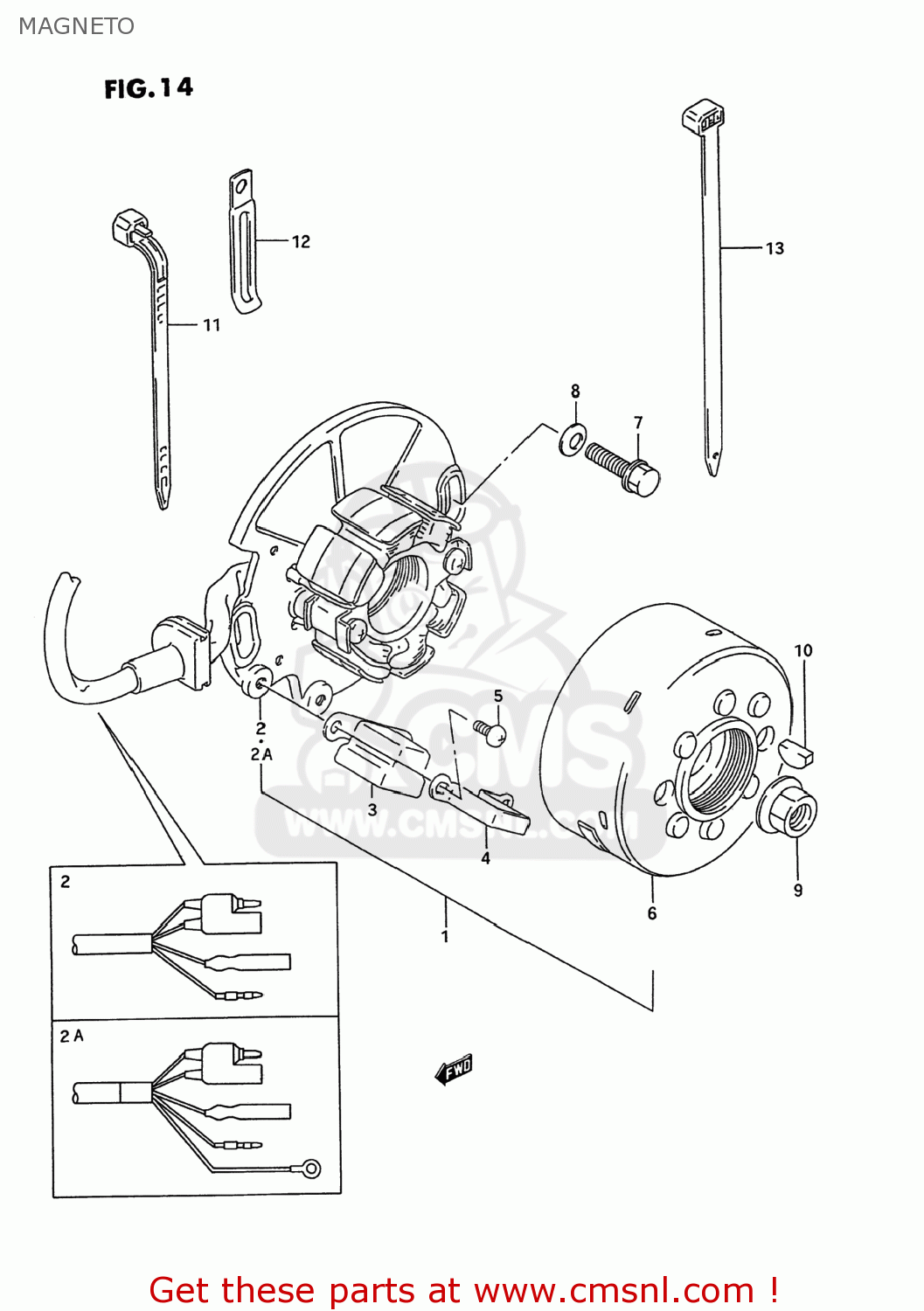

Magneto diagram RM250 1995 (S) USA (E03)
MAGNETO RM250 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210028C03
ref: 1-1
MAGNETO ASSEMBLY
€ 656.00
1-2
3210028E00
ref: 1-2
MAGNETO ASSEMBLY
€ 490.00
1-3
3210043D10
ref: 1-3
32100-43D11
MAGNETO ASSEMBLY
€ 701.50
2
3210128C03
ref: 2
STARTER ASSY
€ 420.00
2A
3210128E00
ref: 2A
STARTER ASSY
€ 336.00
2B
3210143D10
ref: 2B
STARTER ASSY
€ 415.50
3
3216027C00
ref: 3
32150-05D00
COIL ASSEMBLY,PICK-UP
€ 51.50
4
3215727C01
ref: 4
HOLDER,PICK UP COIL
€ 7.50
5
0211275163
ref: 5
02112-7516A
SCREW
€ 2.50
6-1
3210228C00
ref: 6-1
ROTOR
€ 268.50
6-2
3210243D10
ref: 6-2
32102-43D11
ROTOR ASSEMBLY
€ 303.00
7-1
0154706207
ref: 7-1
BOLT
€ 2.50
7-2
0154706203
ref: 7-2
01547-0620B
SCREW
€ 2.50
8
0916406003
ref: 8
WASHER
€ 2.50
9-1
0831616108
ref: 9-1
08316-10107
NUT
€ 2.00
9-2
0831610103
ref: 9-2
08316-1010B
NUT
€ 2.00
10-1
0834131049
ref: 10-1
09420-04008
KEY 4MM
€ 3.50
10-2
0942004008
ref: 10-2
KEY
€ 3.50
11
0940714403
ref: 11
CLAMP(L:125)
€ 2.50
12
0940405404
ref: 12
09404-06432
CLAMP
€ 2.50
13-1
0940730401
ref: 13-1
CLAMP(L:300)
€ 4.50
13-2
0940718403
ref: 13-2
09407-18402
CLAMP L:165
€ 2.50
13-3
0940725401
ref: 13-3
CLAMP(L:235)
€ 4.00
