SHOCK ABSORBER (MODEL R)
RM250 1995 (S) USA (E03)

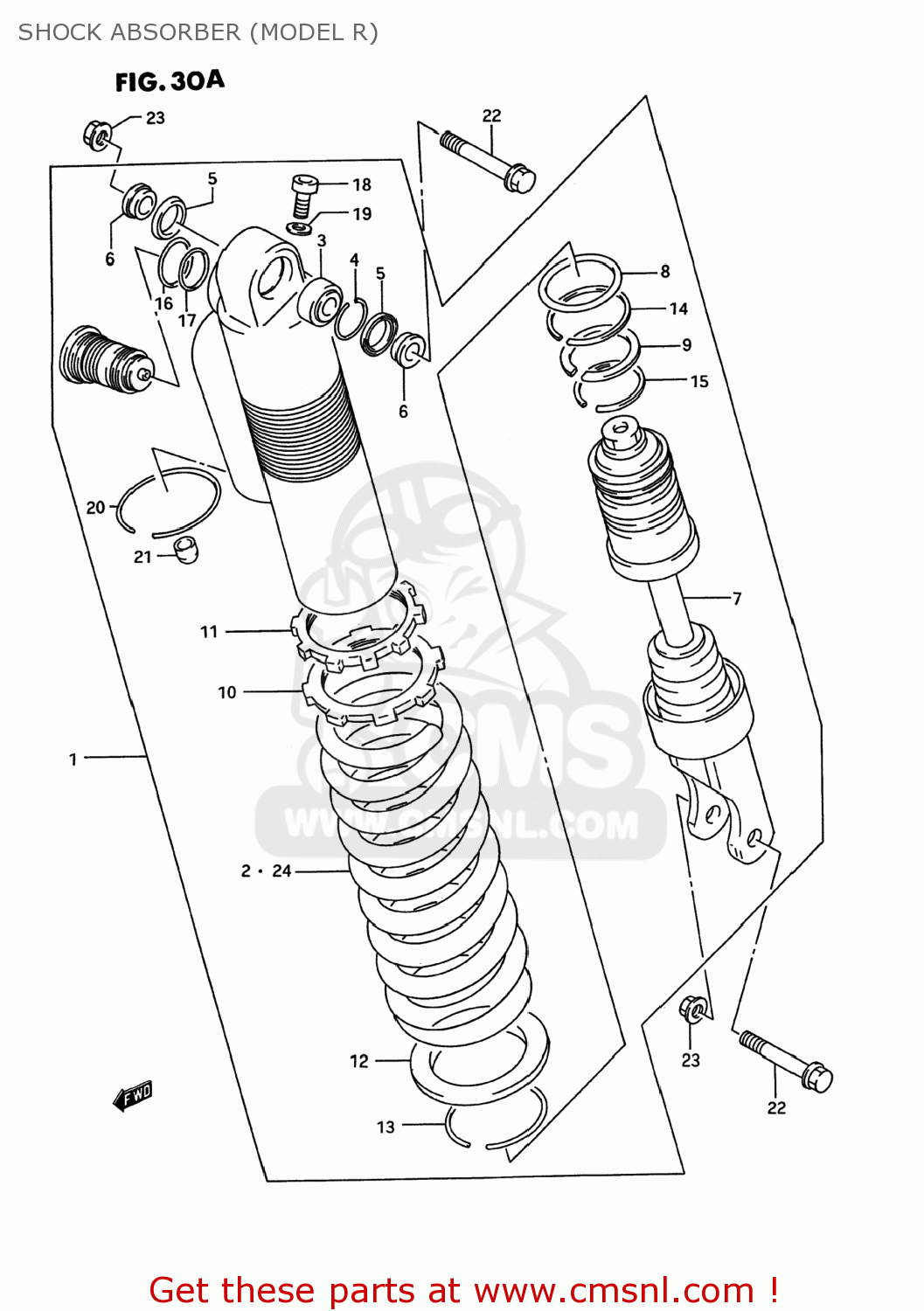

Shock absorber (model r) diagram RM250 1995 (S) USA (E03)
SHOCK ABSORBER (MODEL R) RM250 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6210028E30163
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 1,023.00
1
6210028E30163
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 1,023.00
2
6221127C90
ref: 2
SPRING,REAR (K=5.0)
€ 214.00
3
6217543D00
ref: 3
BEARING,RR CUSHION LEVER RR
€ 54.00
4
6227727C40
ref: 4
RING,STOPPER
€ 2.00
5
6222627C40
ref: 5
SEAL,DUST
€ 7.00
6
6268427C40
ref: 6
COLLAR
€ 12.50
7
6212028E30
ref: 7
ROD,PISTON
€ 463.50
8
6215343D00
ref: 8
O RING
€ 5.00
9
6229143D00
ref: 9
62290-28E00
STOPPER
€ 18.00
10
6219127C40
ref: 10
62190-28E00
GUIDE,SPRING
€ 51.00
11
6219427C40
ref: 11
NUT
€ 16.00
12
6222427C40
ref: 12
62220-28E00
SEAT,SPRING
€ 22.00
13
6222527C40
ref: 13
RING,STOPPER
€ 4.00
14
6227943D00
ref: 14
RING,STOPPER
€ 3.50
15
6229243D00
ref: 15
RING,STOPPER
€ 2.50
16
6213128E00
ref: 16
O RING
€ 3.50
17
5117443D00
ref: 17
O RING,CTR BOLT UPR
€ 3.00
18
6228128E30
ref: 18
62281-27C40
BOLT,REAR SHOCK ABSORBER
€ 4.50
19
5118331030
ref: 19
GASKET,DRAIN,PLUG (NAS)
€ 4.00
20
6227827C40
ref: 20
RING,STOPPER
€ 4.00
21
5129420400
ref: 21
CAP
€ 3.50
22
6231128E00
ref: 22
BOLT,RR SHOCK ABSORBER
€ 4.00
23
0915910058
ref: 23
09159-10115
NUT
€ 4.00
24-1
6221128C70163
ref: 24-1
SPRING(K:5.2)
€ 166.50
24-2
6221128C80
ref: 24-2
62211-28C80-163
SPRING,REAR (K=5.4)
€ 160.50
24-3
6221127C80
ref: 24-3
62211-37E00
SPRING
€ 199.50
