HANDLE SWITCH (MODEL P/R)
RM250 1995 (S) USA (E03)

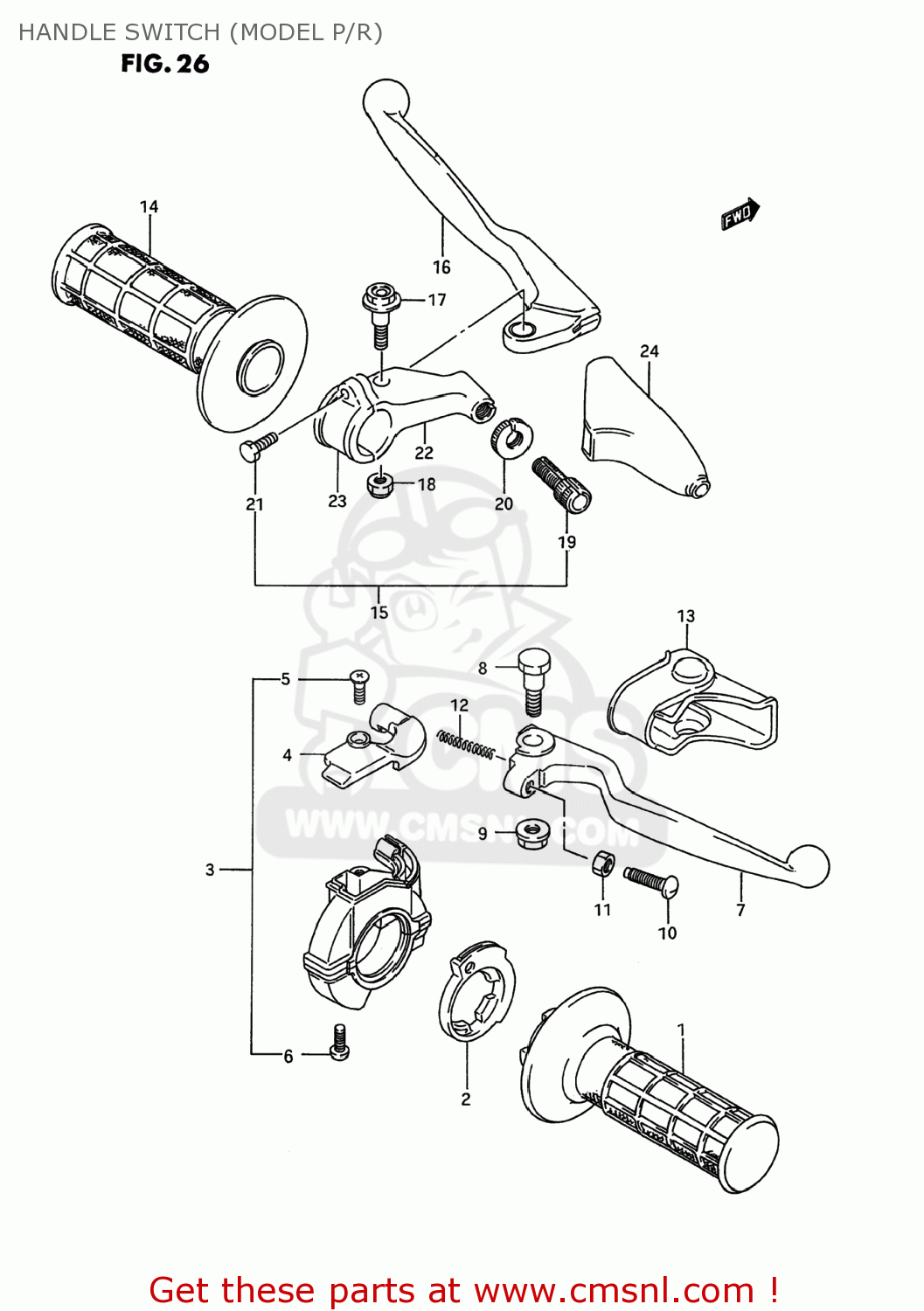

Handle switch (model p/r) diagram RM250 1995 (S) USA (E03)
HANDLE SWITCH (MODEL P/R) RM250 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711027C00
ref: 1
GRIP,THROTTLE
€ 25.00
2
5711414301
ref: 2
ROTOR,THROTTLE GRIP
€ 6.50
3
5710014302
ref: 3
CASE ASSY,THROTTLE
€ 57.50
4
5712914302
ref: 4
COVER,THROTTLE CASE
€ 8.50
5
0213204105
ref: 5
02122-0410A
SCREW 4X10
€ 2.50
6
0211205167
ref: 6
SCREW
€ 2.50
7
5742127C00
ref: 7
LEVER,BRAKE
€ 11.00
8
5743114500
ref: 8
BOLT,BRAKE LEVER
€ 4.00
9
5744214500
ref: 9
08316-1006B
NUT,BRAKE LEVER
€ 2.50
10
5743114511
ref: 10
BOLT,ADJUST
€ 3.50
11
0831012055
ref: 11
08310-0005A
NUT ,5MM
€ 2.50
12
5731814502
ref: 12
SPRING,RETURN
€ 3.00
13
5734114501
ref: 13
COVER,BRAKE LEVER
€ 5.00
14
5721127C00
ref: 14
GRIP,L
€ 11.00
15-1
5750028C00
ref: 15-1
57500-28C12
LEVER ASSEMBLY,CLUTCH
€ 43.00
15-2
5750028C10
ref: 15-2
57500-28C12
LEVER ASSEMBLY
€ 43.00
16
5762128C00
ref: 16
LEVER,CLUTCH
€ 36.00
17
5743128C00
ref: 17
57431-28C01
BOLT,LEVER
€ 4.50
18
0831921068
ref: 18
08319-2106A
NUT 6MM
€ 2.00
19-1
5744128C00
ref: 19-1
ADJUSTER,WIRE
€ 7.50
19-2
5744128C10
ref: 19-2
ADJUSTER,WIRE
€ 9.50
20
5744228C00
ref: 20
NUT,LOCK
€ 11.50
21-1
0110705167
ref: 21-1
01500-0516B
BOLT
€ 1.50
21-2
0150005163
ref: 21-2
01500-0516B
BOLT
€ 1.50
22
5751128C00
ref: 22
HOLDER,CLUTCH LEVER
€ 25.00
23
5751228C00
ref: 23
BRACKET,CLUTCH LEVER HOLDER
€ 13.00
24
5734140001
ref: 24
57341-40002
COVER,CLUTCH LEVER
€ 7.50
