ELECTRICAL (MODEL K1/K2/K3/K4)
RM250 2004 (K4) USA (E03)

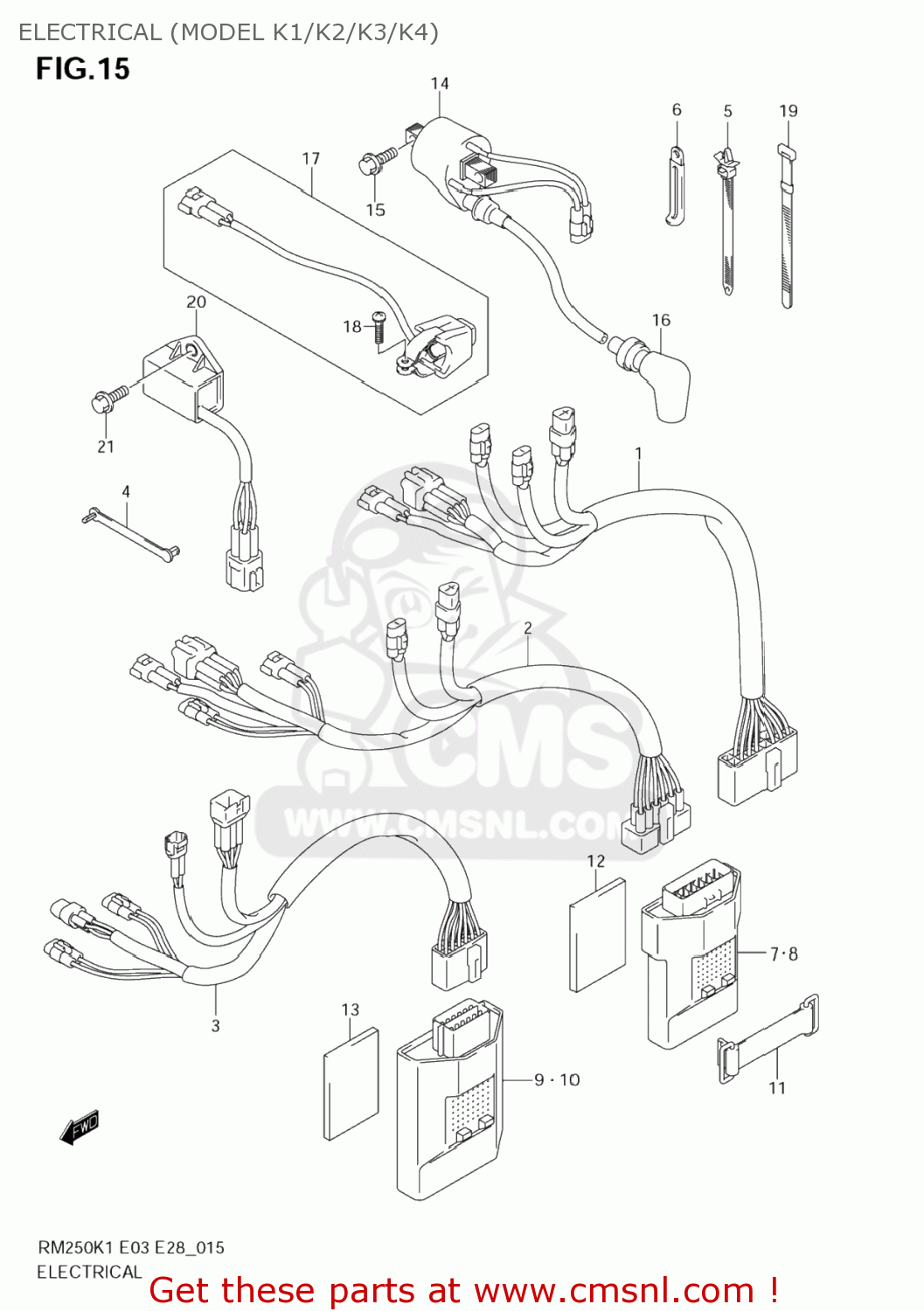

Electrical (model k1/k2/k3/k4) diagram RM250 2004 (K4) USA (E03)
ELECTRICAL (MODEL K1/K2/K3/K4) RM250 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661037F00
ref: 1
HARNESS,WIRING
€ 114.00
2
3661037F10
ref: 2
HARNESS,WIRING
€ 114.50
3
3661037F20
ref: 3
HARNESS,WIRING
€ 116.50
4
3665148E00
ref: 4
CLAMP(L:63)
€ 2.50
5-1
0940711402
ref: 5-1
CLAMP(L:90)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
5-3
0940718402
ref: 5-3
CLAMP(L:165)
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
€ 4.00
6
0940406429
ref: 6
CLAMP(L:45)
€ 2.50
7
3290037F00
ref: 7
CDI UNIT
€ 451.50
8
3290037F10
ref: 8
CDI UNIT
€ 451.50
9
3290037F20
ref: 9
CDI UNIT
€ 451.50
10
3290037F30
ref: 10
CDI UNIT
€ 446.00
11
3294214301
ref: 11
BAND,CDI UNIT(L:80)
€ 10.00
12
3365137000
ref: 12
PROTECTOR(170X95X3.0)
€ 5.00
12
3365137000
ref: 12
PROTECTOR(170X95X3.0)
€ 5.00
12
3365137000
ref: 12
PROTECTOR(170X95X3.0)
€ 5.00
13
3365137000
ref: 13
PROTECTOR(170X95X3.0)
€ 5.00
13
3365137000
ref: 13
PROTECTOR(170X95X3.0)
€ 5.00
13
3365137000
ref: 13
PROTECTOR(170X95X3.0)
€ 5.00
14-1
3341037E00
ref: 14-1
33410-08G00
COIL ASSEMBLY,IGNITION
€ 65.00
14-2
3341037F00
ref: 14-2
COIL ASSY,IGNITION
€ 88.00
15-1
0154706163
ref: 15-1
01547-0616B
BOLT
€ 2.50
15-2
0910306234
ref: 15-2
BOLT(6X16)
€ 2.50
16
3351020A02
ref: 16
CAP,SPARK PLUG
€ 23.00
17
3782036E00
ref: 17
SWITCH ASSY,ENGINE STOP
€ 21.00
18
0211233165
ref: 18
SCREW
€ 1.50
19
0940712402
ref: 19
CLAMP(L:120)
€ 3.00
20
3280037F00
ref: 20
RECTIFIER ASSY
€ 176.50
21
0154706123
ref: 21
01547-0612B
BOLT
€ 2.00
