REAR SHOCK ABSORBER (MODEL K1/K2/K3)
RM250 2004 (K4) USA (E03)

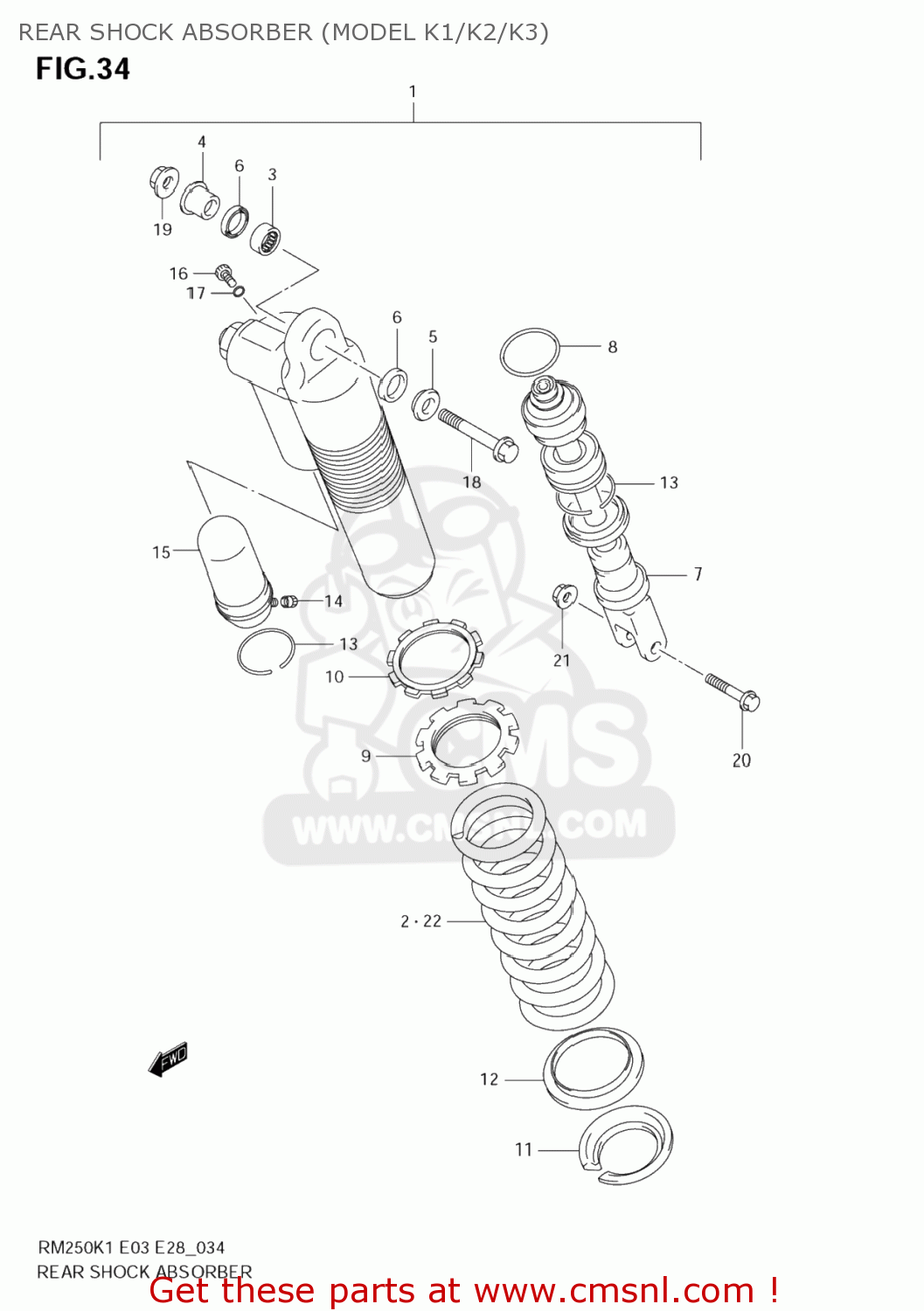

Rear shock absorber (model k1/k2/k3) diagram RM250 2004 (K4) USA (E03)
REAR SHOCK ABSORBER (MODEL K1/K2/K3) RM250 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6210037F2037W
ref: 1-1
ABSORBER ASSY,RR SHOCK
€ 0.00
1-2
6210037F1037W
ref: 1-2
ABSORBER ASSY,RR SHOCK
€ 1,493.50
1-3
6210037F5037W
ref: 1-3
ABSORBER ASSY,RR SHOCK
€ 0.00
1-4
6210037F4037W
ref: 1-4
ABSORBER ASSY,RR SHOCK
€ 1,468.00
1-5
6210037F8037W
ref: 1-5
ABSORBER ASSY,RR SHOCK
€ 0.00
1-6
6210037F7037W
ref: 1-6
ABSORBER ASSY,RR SHOCK
€ 1,468.00
2-1
6221137F00
ref: 2-1
SPRING,REAR
€ 278.50
2-2
6221137F10
ref: 2-2
SPRING (SOFT,K=4.8)
€ 275.50
3
0926316033
ref: 3
BEARING(16X22X12)
€ 19.00
4
6268436F00
ref: 4
SPACER,UPPER BRG,R
€ 12.50
5
6268536F00
ref: 5
SPACER,UPPER BRG,L
€ 9.00
6
0928416005
ref: 6
SEAL,OIL(16X22X2.5)
€ 5.50
7-1
6212037F10
ref: 7-1
ROD,PISTON
€ 638.00
7-2
6212037F00
ref: 7-2
ROD,PISTON
€ 669.00
7-3
6212037F60
ref: 7-3
ROD,PISTON
€ 669.00
8
6215314600
ref: 8
O RING
€ 7.50
9
6219127C20
ref: 9
GUIDE,SPRING
€ 31.00
10
6219427C20
ref: 10
NUT
€ 30.00
11
6222137F00
ref: 11
GUIDE,SPRING
€ 29.00
12
6222237F00
ref: 12
GUIDE,SPRING
€ 9.00
13
6227700B00
ref: 13
RING,STOPPER
€ 5.00
14
5129440400
ref: 14
CAP,VALVE AIR
€ 4.00
15
6227314500
ref: 15
BLADDER
€ 30.50
16
6228101B20
ref: 16
BOLT
€ 6.50
17
6215401B20
ref: 17
O RING
€ 3.00
18
0910310329
ref: 18
BOLT(10X60)
€ 4.00
19
0915910058
ref: 19
09159-10115
NUT
€ 4.00
20
0910310325
ref: 20
BOLT(10X44.5)
€ 4.00
21
0915910067
ref: 21
NUT
€ 4.00
22-1
6221137F10
ref: 22-1
SPRING (SOFT,K=4.8)
€ 275.50
22-2
6221137F20
ref: 22-2
SPRING,RR(HARD K=5.2)
€ 275.00
22-3
6221137F40
ref: 22-3
SPRING,RR(SOFT K=4.6)
€ 275.00
22-4
6221137F30
ref: 22-4
SPRING,RR(STD K=5.0)
€ 278.50
