EXHAUST VALVE (MODEL K1)
RM250 2004 (K4) USA (E03)

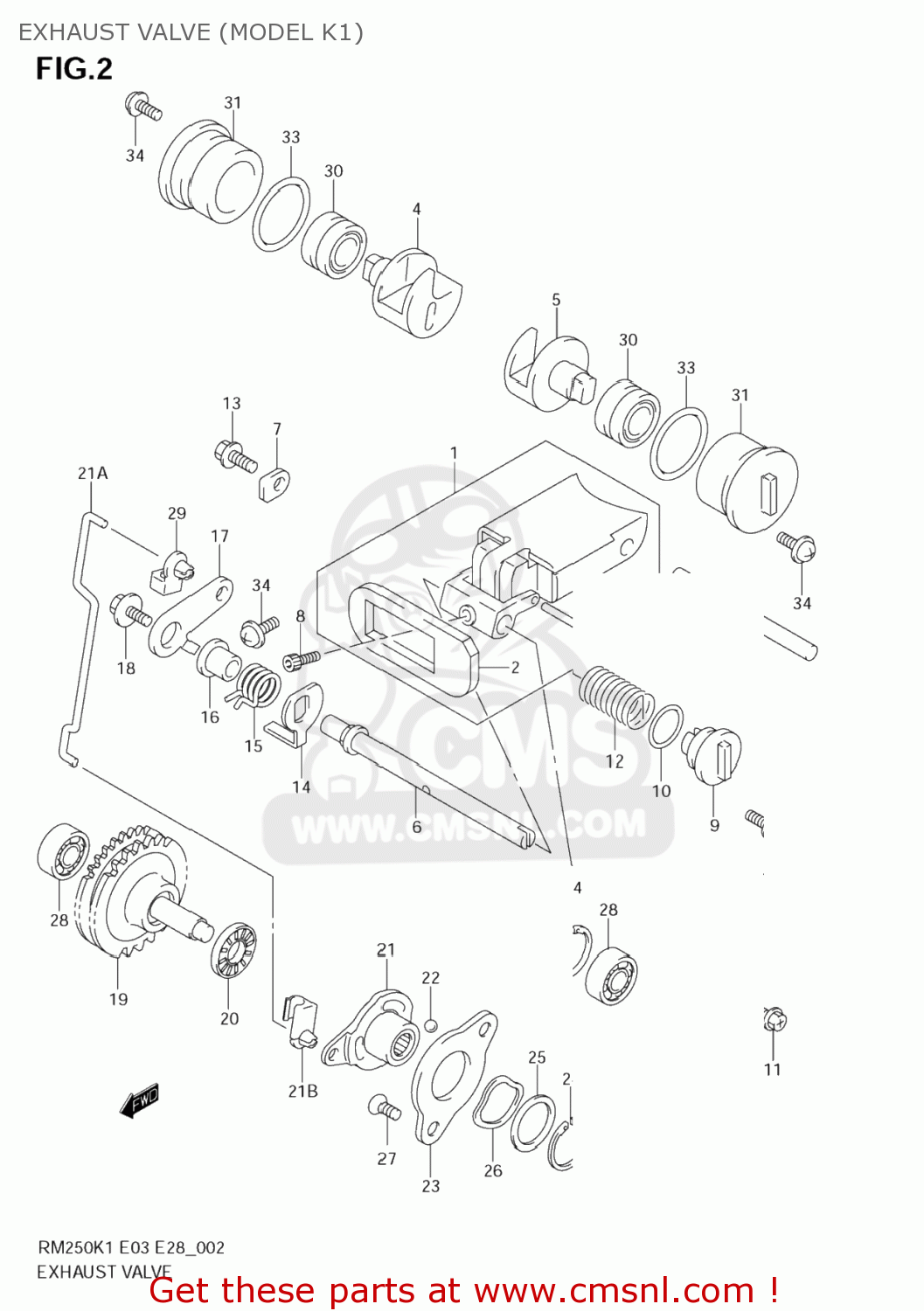

Exhaust valve (model k1) diagram RM250 2004 (K4) USA (E03)
EXHAUST VALVE (MODEL K1) RM250 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1120637F00
ref: 1
VALVE ASSY,EXHAUST MAIN
€ 233.50
2
1126137F00
ref: 2
GUIDE, EXHAUST VALVE
€ 15.00
3
0926104013
ref: 3
PIN(4X29.8)
€ 2.50
4
1125537F00
ref: 4
VALVE, EXHAUST SIDE RH
€ 79.50
5
1125637F00
ref: 5
VALVE,EXHAUST SIDE,L
€ 67.50
6
1125937E00
ref: 6
SHAFT,EXHAUST VALVE
€ 50.50
7
2474121A00
ref: 7
RETAINER
€ 2.00
8
0910604003
ref: 8
BOLT(4X8)
€ 2.00
9
1127437E11
ref: 9
CAP,EXHAUST VALVE SHAFT SPRING
€ 9.50
10
0928015006
ref: 10
O RING(D:1.9,ID:14.5)
€ 3.00
11
0216205123
ref: 11
02162-0512A
BOLT
€ 2.00
12
1125737F00
ref: 12
SPRING,EXHAUST VALVE SHAFT
€ 5.50
13
0154706103
ref: 13
01547-0610B
BOLT
€ 3.00
14
1126700B21
ref: 14
LEVER,EXHAUST VALVE NO.2
€ 5.50
15
0944416010
ref: 15
SPRING
€ 9.00
16
1126801B01
ref: 16
SPACER,EXHAUST VALVE
€ 8.50
17
1126637F00
ref: 17
LEVER,EXHAUST VALVE NO.1
€ 2.00
18
0911805005
ref: 18
BOLT(5X12)
€ 4.00
19
1267037E11
ref: 19
GOVERNOR ASSY,EXHAUST VALVE
€ 123.50
20
0926310002
ref: 20
BEARING(10X22X2.8)
€ 8.50
21
1268001830
ref: 21
ACTUATOR,EXHAUST VALVE
€ 47.00
21A
1268537F00
ref: 21A
ROD,EXHAUST VALVE
€ 3.50
21B
1268636E00
ref: 21B
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
22
0611106003
ref: 22
BALL
€ 1.50
23
1268201B02
ref: 23
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
24
0938019003
ref: 24
CIRCLIP
€ 2.50
25
0918119004
ref: 25
SHIM(19.1X25X0.3)
€ 4.00
26
0916419001
ref: 26
WASHER
€ 7.00
27
0912005003
ref: 27
SCREW(5X10)
€ 2.00
28
0926208005
ref: 28
BEARING(8X22X7)
€ 12.50
29
1268601B00
ref: 29
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
30
0926312026
ref: 30
BEARING(12X24X13)
€ 43.50
31
1126237F00
ref: 31
CAP,EXHAUST SIDE VALVE
€ 21.00
32
0920204020
ref: 32
PIN
€ 10.00
33
0928029005
ref: 33
O RING(D:1.9,ID:28.3)
€ 2.50
34
0211215123
ref: 34
02142-0512A
SCREW 5X12
€ 1.50
