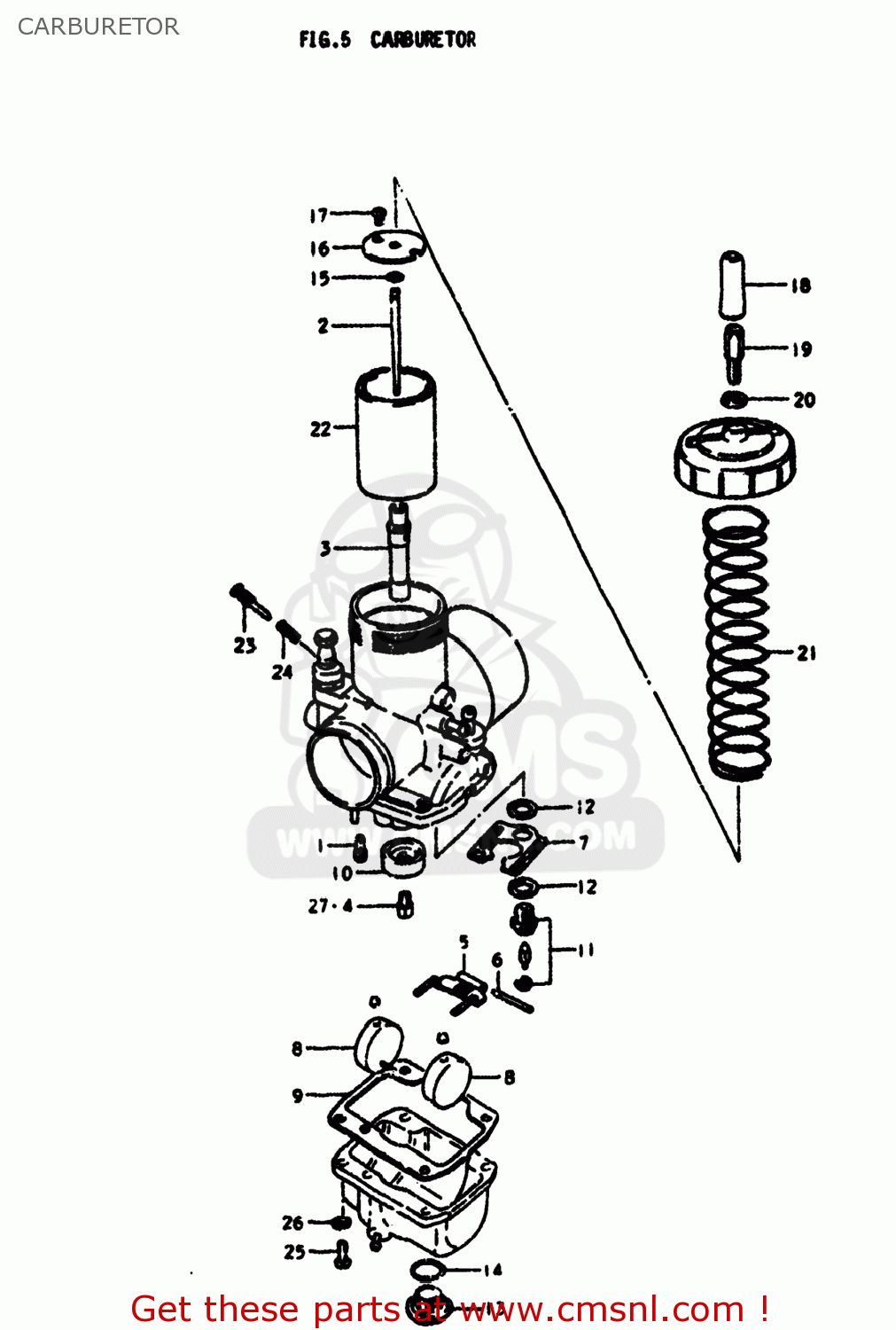

CARBURETOR

ref

part #

description

quantity

0

1320041220
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

0949250010
ref: 1

JET,PILOT(50)

€ 8.00

2

1338316510
ref: 2

JET,NEEDLE(6FJ6-3)

€ 14.50

3

0949400174
ref: 3

JET,NEEDLE

€ 9.50

4

0949154001
ref: 4
09491-54002

JET

€ 11.50

5

1325340010
ref: 5

ARM,FLOAT

€ 8.00

6

1325401010
ref: 6

PIN,FLOAT

€ 3.00

7

1325940011
ref: 7

PLATE

€ 4.00

8

1325218620
ref: 8

FLOAT

€ 27.50

9

1325140600
ref: 9

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

10

1333116510
ref: 10

RING

€ 1.50

11

1337040010
ref: 11
13370-16600

VALVE ASSEMBLY,NEEDLE

€ 45.00

12

1339216600
ref: 12

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

13

1324732210
ref: 13

SCREW,GUIDE

€ 13.00

14

1329440110
ref: 14
09280-20003

O-RING

€ 2.50

15

1339410010
ref: 15

CLIP

€ 4.50

16

1358140010
ref: 16

CLIP

€ 3.50

17

0211104067
ref: 17
02112-0406B

SCREW

€ 2.00

18

1368133010
ref: 18

CAP,CABLE ADJUSTER

€ 8.00

19

1357741612
ref: 19

ADJUSTER,CABLE

€ 8.00

20

1366116600
ref: 20

NUT

€ 5.00

21

1357341610
ref: 21

SPRING,THROTTLE VALVE RETURN

€ 8.50

22

1355141112
ref: 22

VALVE,THROTTLE

€ 52.00

23

1326915010
ref: 23

SCREW,PILOT AIR

€ 10.50

24

1326801010
ref: 24

SPRING

€ 3.50

25

0211205168
ref: 25
02112-05167

SCREW

€ 2.50

26

0832121058
ref: 26
08321-0105A

LOCK WASHER

€ 2.00

27-1

0949150003
ref: 27-1
09491-50008

JET

€ 12.50

27-2

0949152001
ref: 27-2
09491-52006

JET

€ 7.50

27-3

0949156001
ref: 27-3
09491-56003

JET

€ 14.50

27-4

0949158001
ref: 27-4
09491-58002

JET

€ 7.50

27-5

0949160003
ref: 27-5
09491-60007

JET

€ 9.50

all assemblies
