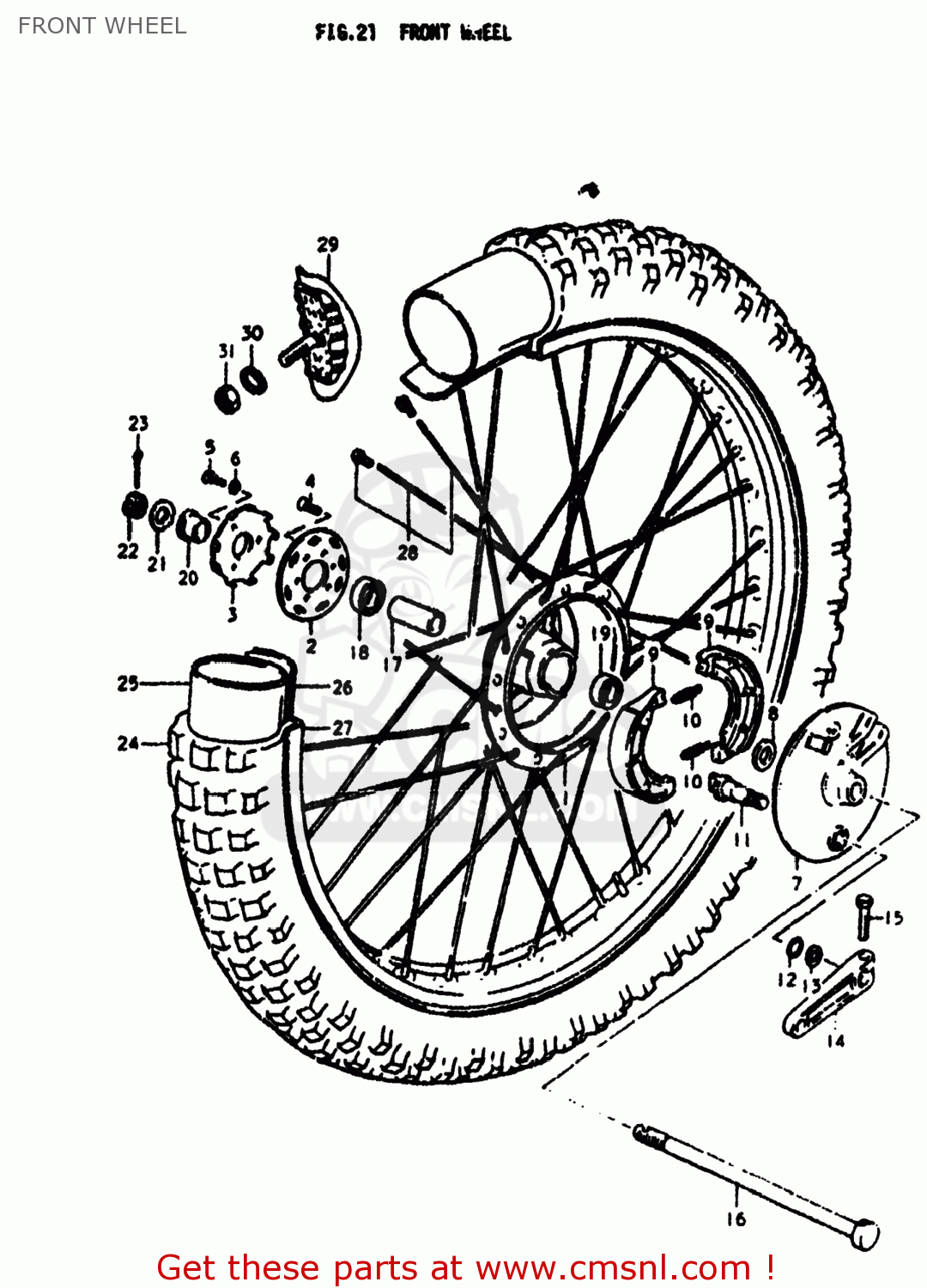

FRONT WHEEL

ref

part #

description

quantity

1

5411041301
ref: 1

HUB,FRONT

€ 85.50

2

5411241301
ref: 2

FLANGE,FRONT HUB,RIGHT

€ 31.00

3

5415130500
ref: 3

RETAINER,FR HUB BEARING,R

€ 7.00

4

0212206168
ref: 4
02122-06167

SCREW

€ 2.00

5

0110706168
ref: 5
01500-06167

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

5421041300
ref: 7
54210-41301

PANEL,FRONT HUB

€ 77.50

8

5422141300
ref: 8

BOSS

€ 0.00

9

5441007002
ref: 9
54401-07810

SHOE,BRAKE

€ 35.00

10

0944307001
ref: 10
09443-07025

SPRING(L:34)

€ 2.50

11

5444141300
ref: 11

CAM,FRONT BRAKE

€ 15.50

12

0928012001
ref: 12

O RING(D:2.5,ID:11.4)

€ 2.50

13

0916012011
ref: 13

WASHER(12.5X20X1)

€ 1.50

14

5445141300
ref: 14
54451-41301

LEVER,FRONT BRAKE CAM

€ 30.50

15

0110706258
ref: 15
01500-06257

BOLT

€ 2.00

16

6471143000
ref: 16
64711-43001

AXLE,REAR

€ 28.50

17

0918012041
ref: 17
09180-12144

SPACER (12.6X19X52)

€ 4.50

18

0812362010
ref: 18
08133-62017

BEARING

€ 15.00

19

0814362010
ref: 19
08143-62017

BEARING, LH

€ 11.50

20

5474141100
ref: 20

SPACER,FR AXLE,R

€ 10.00

21

0832211128
ref: 21
08322-01127

WASHER

€ 2.00

22

0831441128
ref: 22
08314-4012A

NUT, REAR AXLE

€ 2.50

23

0411130308
ref: 23
04111-3030A

COTTER PIN

€ 1.50

24

5510041311
ref: 24

TIRE,FRONT

€ 0.00

25

5520016510
ref: 25

TUBE

€ 32.50

26

5526116510
ref: 26
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

27

5531141320
ref: 27

RIM,FRONT WHEEL

€ 128.00

28

5530041840
ref: 28
55300-41841

SPOKE SET,FRONT

€ 52.00

29

6527030001
ref: 29
65270-43D00

STOPPER,BEAD

€ 30.50

30

0832211088
ref: 30
08322-01087

WASHER

€ 2.00

31

0831012088
ref: 31
08310-00087

NUT

€ 2.00
