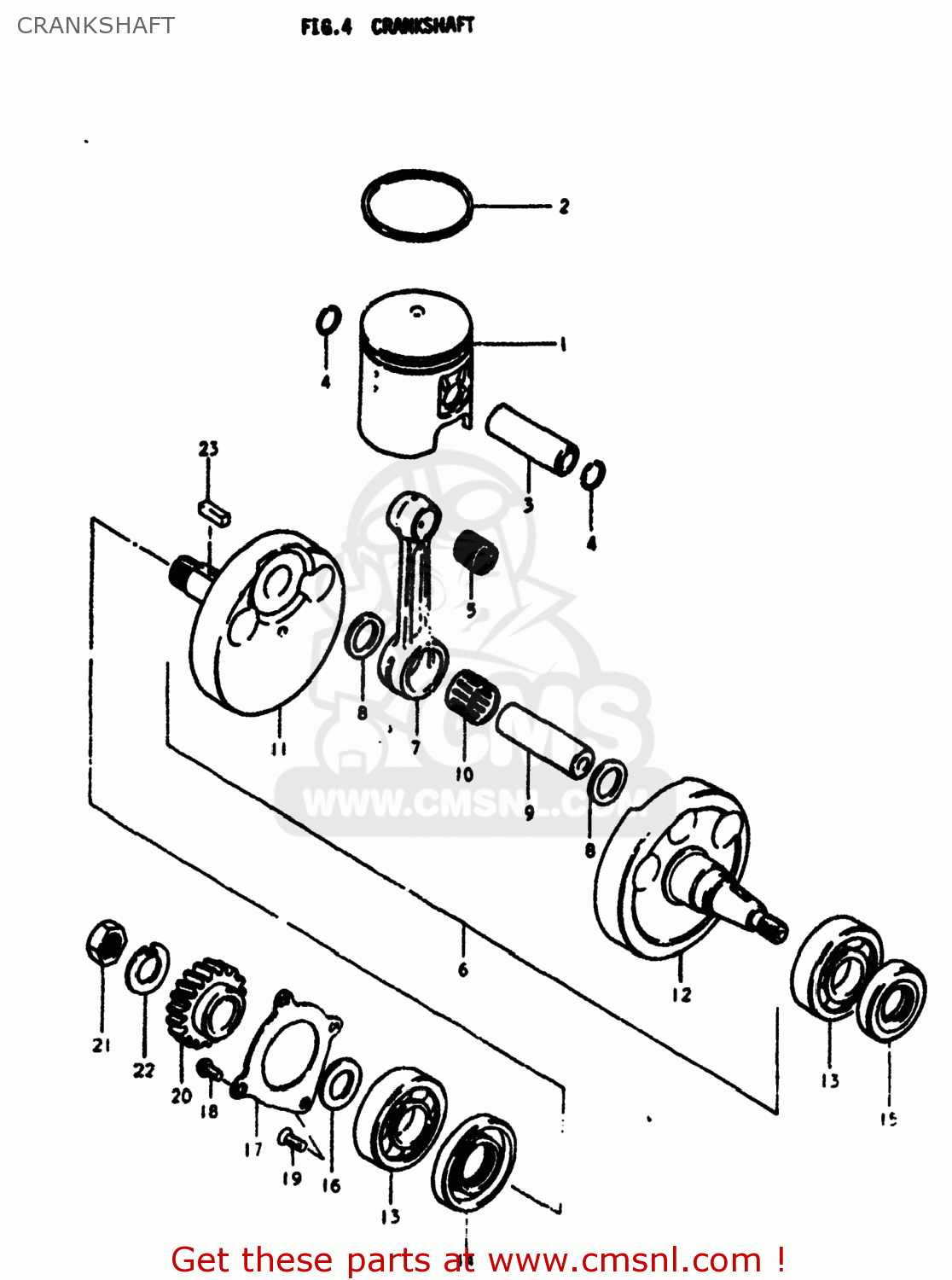

CRANKSHAFT

ref

part #

description

quantity

1-1

1211041210
ref: 1-1
12110-40400

PISTON

€ 118.50

1-2

1211041210025
ref: 1-2
12103-40870-025

PISTON

€ 131.50

1-3

1211041210050
ref: 1-3
12103-40870-050

PISTON

€ 119.00

2-1

1214141220
ref: 2-1

RING,PISTON

€ 32.50

2-2

1214141220025
ref: 2-2

RING,PISTON (OS:0.25)

€ 16.50

2-3

1214141220050
ref: 2-3

RING,PISTON (OS:0.5)

€ 18.50

3

1215115002
ref: 3
12151-13A00-0A0

PIN,PISTON (18MM)

€ 14.50

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318011
ref: 5
09263-18016

BEARING(18X23X22)

€ 14.00

6

1220041200
ref: 6

CRANKSHAFT ASSEMBLY

€ 0.00

7

1216141200
ref: 7

ROD,CONNECTING

€ 81.50

8

0916024015
ref: 8

WASHER(24X29X1.5)

€ 7.50

9

1221141200A
ref: 9
12211-40900

PIN,CRANK

€ 34.50

10

0926324007
ref: 10
09263-24026

BEARING

€ 62.50

11

1222141200
ref: 11

CRANKSHAFT

€ 130.00

12

1226141200
ref: 12

CRANKSHAFT,LEFT

€ 139.00

13

0811363060
ref: 13
09262-30077

BEARING

€ 47.50

14

0928940004
ref: 14

SEAL,OIL(40X72X9)

€ 15.50

15

0928324001
ref: 15

SEAL,OIL(24X50X9)

€ 19.00

16

0916025021
ref: 16

WASHER

€ 4.00

17

1254141200
ref: 17

PLATE

€ 3.00

18

0211206128
ref: 18
02112-06127

SCREW 6X12

€ 2.00

19

0212206128
ref: 19
02122-06127

SCREW

€ 3.00

20

2111141200
ref: 20

GEAR,PRIMARY DRIVE

€ 13.50

21

0914020008
ref: 21
09140-20013

NUT (20MM)

€ 4.00

22

0916620005
ref: 22

WASHER

€ 1.50

23

0942107001
ref: 23

KEY

€ 2.50
