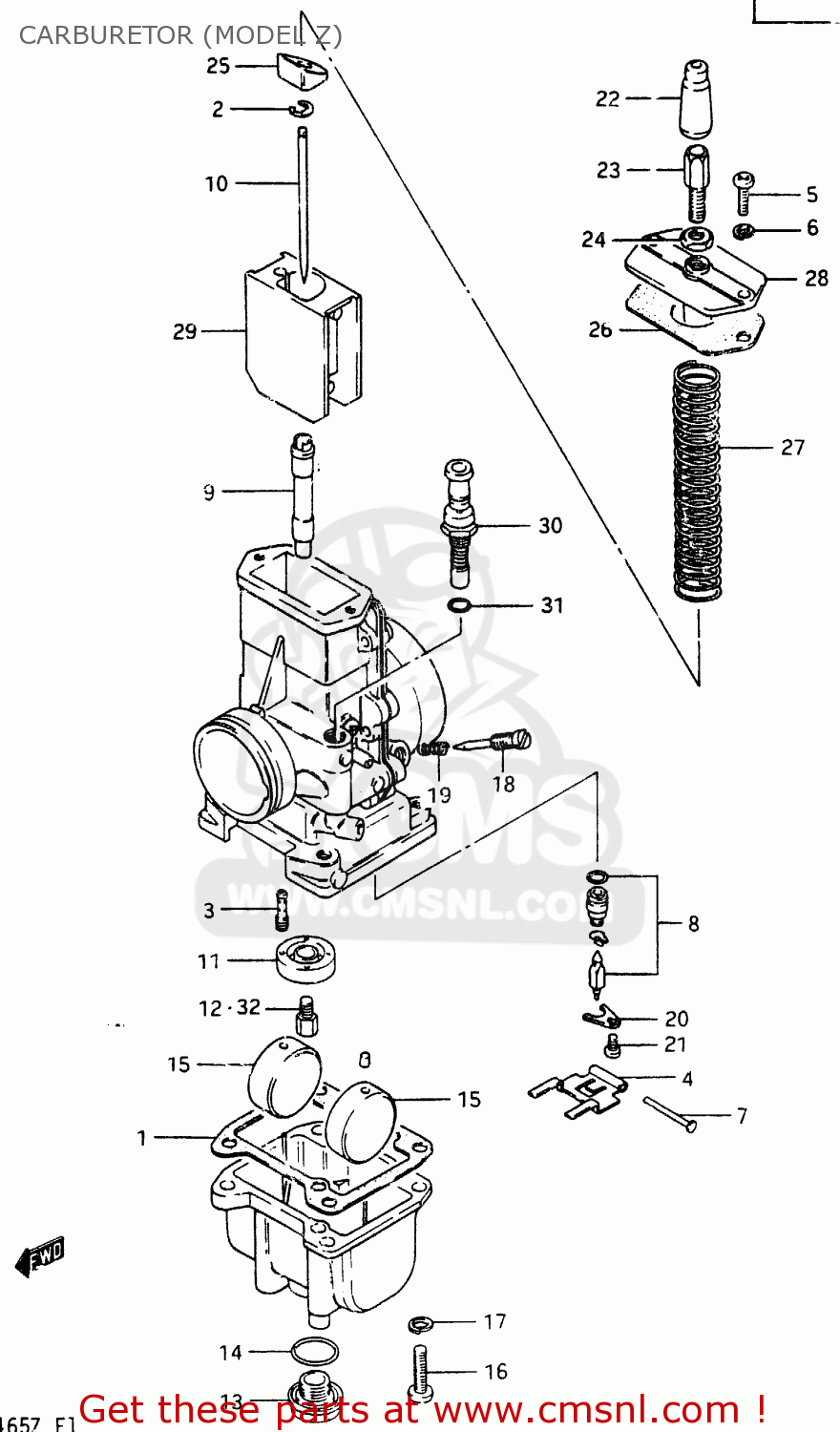

CARBURETOR (MODEL Z)

ref

part #

description

quantity

0

1320014220
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

1325114300
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

2

1339410010
ref: 2

CLIP

€ 4.50

3

0949250010
ref: 3

JET,PILOT(50)

€ 8.00

4

1325340010
ref: 4

ARM,FLOAT

€ 8.00

5

0211204128
ref: 5

SCREW

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

1325492311
ref: 7

PIN,FLOAT

€ 2.00

8

1337014300
ref: 8

VALVE ASSEMBLY,NEEDLE

€ 52.50

9

0949400357
ref: 9

JET,NEEDLE(R-0)

€ 16.50

10

1338314220
ref: 10

NEEDLE JET

€ 8.50

11

1333114300
ref: 11

RING,MAIN JET FIXING

€ 0.00

12

0949162001
ref: 12

JET

€ 10.50

13

1324732210
ref: 13

SCREW,GUIDE

€ 13.00

14

1324941310
ref: 14

O RING,DRAIN PLUG

€ 5.00

15

1325218620
ref: 15

FLOAT

€ 27.50

16

0211205208
ref: 16

SCREW 5X20

€ 3.00

17

0832121058
ref: 17

LOCK WASHER

€ 2.00

18

1326946010
ref: 18

SCREW,PILOT AIR

€ 8.50

19

1326801010
ref: 19

SPRING

€ 3.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204068
ref: 21

SCREW 4X6

€ 2.00

22

1368133010
ref: 22

CAP,CABLE ADJUSTER

€ 8.00

23

1357741612
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1325914300
ref: 25

PLATE

€ 0.00

26

1338714300
ref: 26

SEAT,RETURN SPRING

€ 5.50

27

1326614300
ref: 27

GASKET,MIXING CHAMBER (NAS)

€ 4.00

28

1357314300
ref: 28

SPRING,THROTTLE VALVE

€ 7.50

29

1326114300
ref: 29

CAP,CARBURETOR,TOP

€ 14.50

30

1355114220
ref: 30

VALVE,THROTTLE

€ 90.00

31

1341143200
ref: 31

VALVE,STARTER

€ 39.00

32

1329515010
ref: 32

O-RING

€ 3.00

33

0949158001
ref: 33
OPT

JET

€ 7.50

33

0949160003
ref: 33
OPT

JET

€ 9.50

33

0949164001
ref: 33
OPT

JET

€ 8.50

33

0949166001
ref: 33
OPT

JET

€ 10.50

33

0949168001
ref: 33
OPT

JET

€ 8.50

all assemblies
