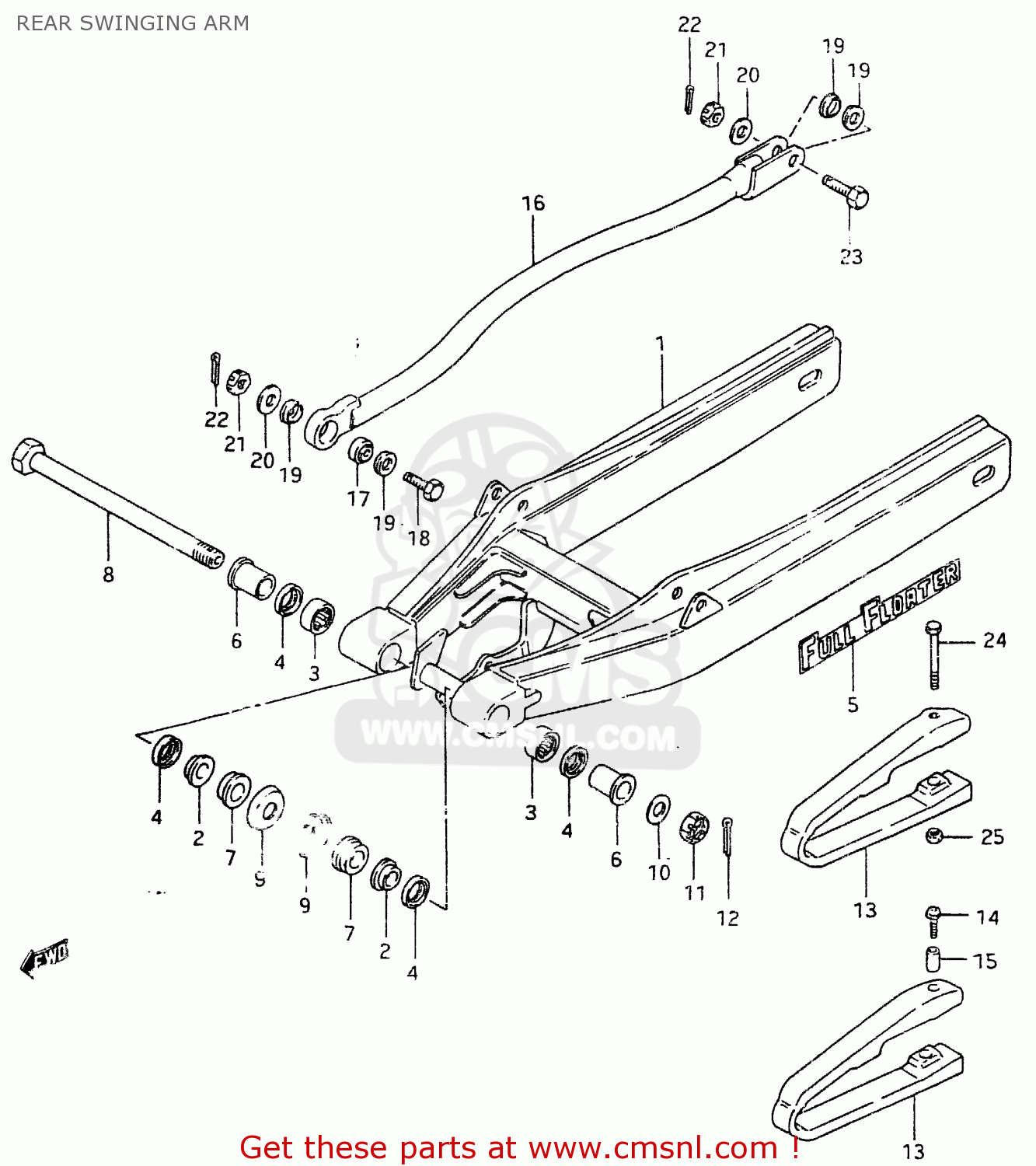

REAR SWINGING ARM

ref

part #

description

quantity

1

6110014832
ref: 1
MODEL X

SWING ARM ASSEMBLY,REAR

€ 0.00

1

6100014310
ref: 1
MODEL Z

SWING ARM ASSEMBLY,REAR

€ 0.00

2

6126114110
ref: 2

BUSH,RR SWINGINGARM PIVOT

€ 10.00

3

0926320041
ref: 3

BEARING(20X27X20)

€ 15.00

4

0928520005
ref: 4

OIL SEAL

€ 5.00

5

6838114100
ref: 5

EMBLEM,SWING ARM

€ 3.50

6

6125114100
ref: 6

SPACER,RR SWGARM PIVOT

€ 16.00

7

6125214100
ref: 7

SPACER,RR SWGARM PIVOT INNER

€ 12.50

8

6121114102
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 47.50

9

6126240400
ref: 9

COVER,RR SWGARM DUST SEAL

€ 4.00

10

0832211148
ref: 10

WASHER

€ 2.00

11

0831441148
ref: 11

NUT 14MM

€ 3.00

12

0411130308
ref: 12

COTTER PIN

€ 1.50

13

6127314202
ref: 13
MODEL X

BUFFER,CHAIN TOUCH DEFLECTOR

€ 37.50

13

6127314210
ref: 13
MODEL Z

BUFFER,CHAIN TOUCH DEFLECTOR

€ 25.00

14

6127540200
ref: 14
MODEL X

SCREW,CHAIN TOUCH DEFEND

€ 1.50

15

0918005015
ref: 15
MODEL X

SPACER (5.5X8X4)

€ 3.00

16

6430014812
ref: 16

LINK,REAR TORQUE

€ 133.50

17

6435240401
ref: 17

SPHERICAL BRNG,TORQUE LINK

€ 69.50

18

0910108003
ref: 18

BOLT 8X28

€ 2.00

19

6433940410
ref: 19

6433940410

20

0832211088
ref: 20

WASHER

€ 2.00

21

0831441088
ref: 21

NUT 8MM

€ 2.50

22

0411120208
ref: 22

PIN 20X20

€ 1.50

23

0910108014
ref: 23

BOLT 8X29.5

€ 1.50

24

0110706708
ref: 24
MODEL Z

BOLT

€ 3.50

25

0831931068
ref: 25
MODEL Z

NUT

€ 2.50
