REAR WHEEL
RM465 1981 (X)

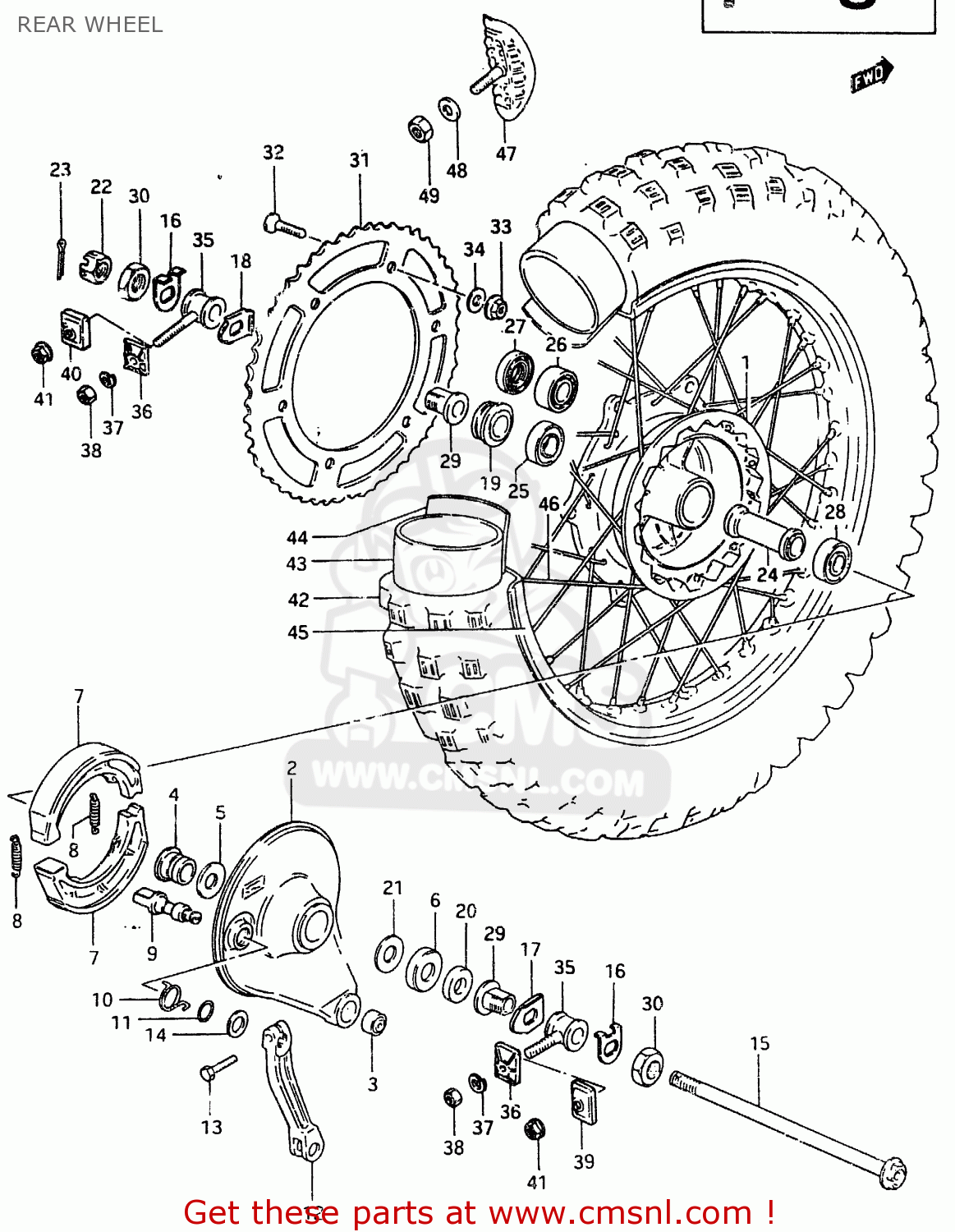

Rear wheel diagram RM465 1981 (X)
REAR WHEEL RM465 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
1
6411014202
ref: 1
DRUM,REAR HUB
€ 316.50
1
6411014203
ref: 1
DRUM,REAR HUB
€ 316.50
2
6420014821
ref: 2
PANEL SET,REAR HUB
€ 171.00
3
6435240401
ref: 3
SPHERICAL BRNG,TORQUE LINK
€ 69.50
4
6421314100
ref: 4
SPACER,RR BRAKE ANCHOR PANEL
€ 17.00
5
0928320031
ref: 5
SEAL,OIL(20X27X5)
€ 5.00
6
6484514100
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
€ 10.00
7
5441014100
ref: 7
SHOE,BRAKE
€ 21.50
8
0944308021
ref: 8
SPRING
€ 9.00
9
5444114100
ref: 9
MODEL X
CAM,FRONT BRAKE
€ 16.00
9
5444114101
ref: 9
MODEL Z
CAM,FR BRAKE
€ 16.00
10
0944830007
ref: 10
SPRING
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
6445114100
ref: 12
LEVER,RR BRAKE CAM
€ 62.50
13
0110706258
ref: 13
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
€ 1.50
15
6471114201
ref: 15
AXLE,REAR
€ 150.50
16
6471214201
ref: 16
MODEL X
WASHER,CHAIN ADJUST GUIDE
€ 3.50
16
6471214300
ref: 16
MODEL Z
WASHER,CHAIN ADJUSTER
€ 7.50
17
6478214200
ref: 17
PLATE,CHAIN ADJUSTER,RIGHT
€ 0.00
18
6479214200
ref: 18
PLATE,CHAIN ADJUSTER,LEFT
€ 10.50
19
6475014200
ref: 19
MODEL X
SPACER,RR AXLE,L
€ 16.00
19
6475114220
ref: 19
MODEL Z
SPACER,REAR AXLE,LEFT
€ 7.50
20
6474114200
ref: 20
MODEL X
SPACER,REAR AXLE,RIGHT
€ 9.50
20
6574114210
ref: 20
MODEL Z
SPACER, AXLE RH
€ 0.00
21
0821115281
ref: 21
WASHER,THRUST
€ 2.50
22
0914114004
ref: 22
NUT
€ 5.00
23
0411130308
ref: 23
COTTER PIN
€ 1.50
24
6473014200
ref: 24
SPACER,REAR HUB BEARING
€ 27.50
25
0812362027
ref: 25
MODEL X
BEARING
€ 14.50
25
0811362027
ref: 25
MODEL X
BEARING
€ 14.50
26
0926715001
ref: 26
MODEL Z
BALL BEARING 15X35X16
€ 75.50
27
0928522003
ref: 27
MODEL Z
OIL SEAL
€ 6.50
28
0814362027
ref: 28
BEARING
€ 12.50
29
6478114201
ref: 29
SPACER,CHAIN ADJUSTER
€ 27.00
30
0914022006
ref: 30
NUT
€ 6.00
31
6451114200
ref: 31
MODEL X
SPROCKET,REAR (NT:49)(AL)
€ 188.00
31
6451114210
ref: 31
MODEL Z
SPROCKET,REAR
€ 165.00
32
0912008004
ref: 32
MODEL X
SCREW(8X33.5)
€ 3.00
32
0912008008
ref: 32
MODEL Z
SCREW
€ 3.00
33
0831931088
ref: 33
NUT
€ 2.50
34
0832211088
ref: 34
WASHER
€ 2.00
35
6141014220
ref: 35
MODEL X
ADJUSTER,CHAIN
€ 18.50
35
6141014300
ref: 35
MODEL Z
ADJUSTER,CHAIN
€ 15.50
36
6142114220
ref: 36
MODEL X
PLATE,CHAIN ADJUSTER GEAR
€ 5.00
37
0832121108
ref: 37
MODEL X
LOCK WASHER
€ 2.00
38
0831011108
ref: 38
MODEL X
NUT
€ 2.50
39
6142114220
ref: 39
MODEL Z
PLATE,CHAIN ADJUSTER GEAR
€ 5.00
40
6143114200
ref: 40
MODEL Z
PLATE,CHAIN ADJUSTER GEAR
€ 9.00
41
0831931108
ref: 41
MODEL Z
NUT
€ 3.00
42
6510014230
ref: 42
BS MODEL X
TIRE
€ 0.00
42
6510014120
ref: 42
BS MODEL Z
TIRE
€ 0.00
42
6510014250
ref: 42
DUNLOP MODEL X
TIRE
€ 0.00
42
6510014240
ref: 42
DUNLOP MODEL Z
TIRE
€ 0.00
42
6510014210
ref: 42
IRC MODEL E
TIRE
€ 0.00
43
6520040430
ref: 43
TUBE,INNER
€ 0.00
44
6526115030
ref: 44
PROTECTOR,WHEEL,INNER
€ 3.50
45
6531114201
ref: 45
RIM,REAR WHEEL
€ 276.00
46
6532014202
ref: 46
SPOKE SET,REAR WHEEL
€ 0.00
47
6527040420
ref: 47
STOPPER,BEAD
€ 70.50
48
0832211088
ref: 48
WASHER
€ 2.00
49
0831012088
ref: 49
NUT
€ 2.00
