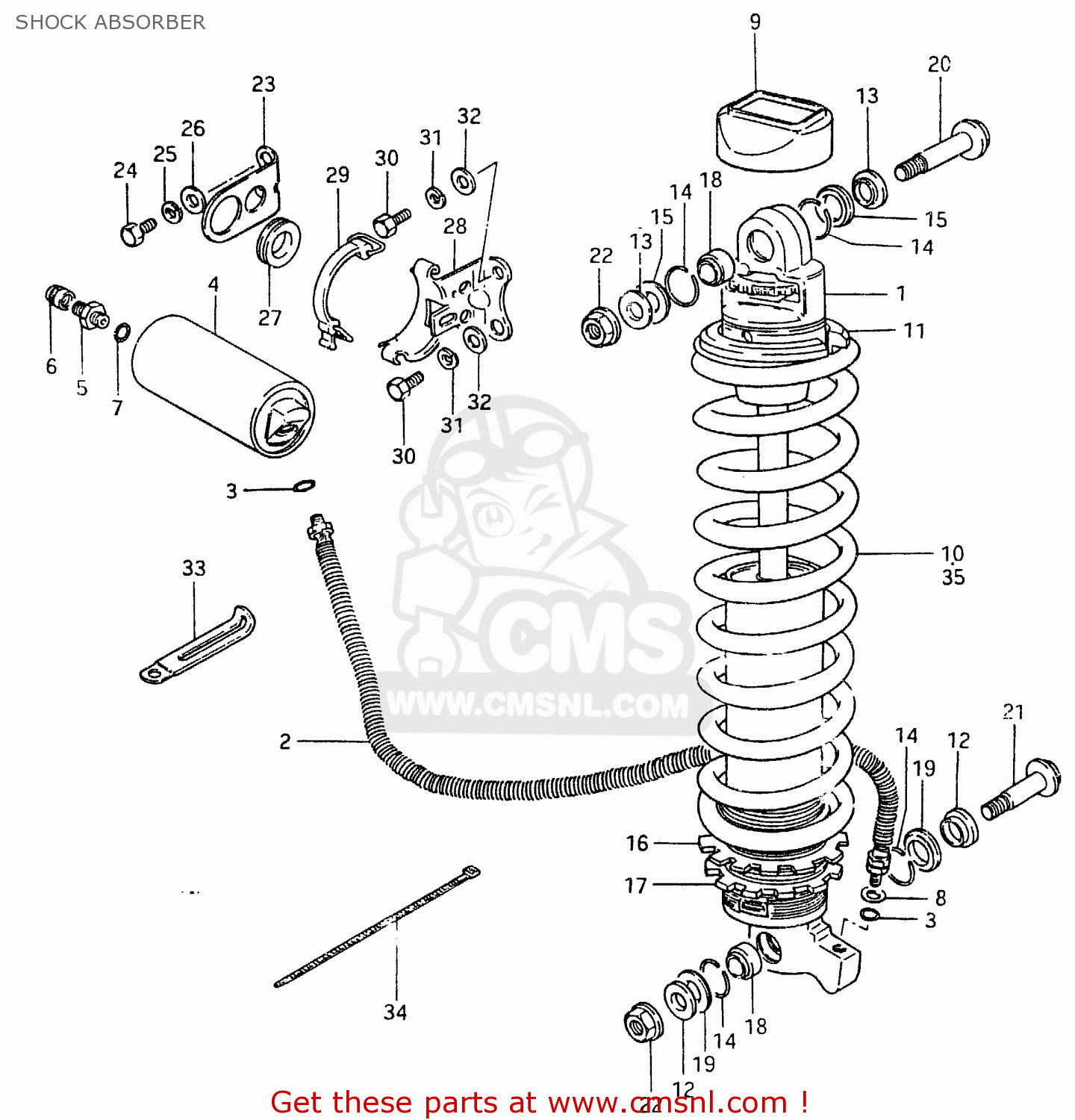

SHOCK ABSORBER

ref

part #

description

quantity

1

6210014200
ref: 1
MODEL X

ABSORBER ASSEMBLY,REAR SHOCK

€ 399.00

1

6210014240
ref: 1
MODEL Z

ABSORBER ASSEMBLY,REAR SHOCK

€ 761.50

2

6228014200
ref: 2
MODEL X

HOSE,REAR SHOCK ABSORBER

€ 0.00

2

6228014240
ref: 2
MODEL Z

HOSE,REAR SHOCK ABSORBER

€ 0.00

3

6215440200
ref: 3

O-RING,RESERVE TANK

€ 1.50

4

6227014100
ref: 4
MODEL X

RESERVE TANK,REAR SHOCK

€ 64.50

4

6227014120
ref: 4
MODEL Z

RESERVE TANK,REAR SHOCK

€ 0.00

5

6227414100
ref: 5

VALVE ASSEMBLY,REAR CUSHION

€ 15.00

6

5129440400
ref: 6

CAP,VALVE AIR

€ 4.00

7

5111741211
ref: 7

O RING

€ 6.50

8

6228514100
ref: 8

WASHER,REAR SHOCK HOSE

€ 3.00

9

6217914100
ref: 9

CAP REAR SHOCK

€ 5.50

10

6221114100
ref: 10

SPRING

€ 82.50

11

6222514100
ref: 11

SPRING, GUIDE

€ 0.00

12

6217714100
ref: 12

COLLAR

€ 16.00

13

6217714200
ref: 13

SPACER,REAR SHOCK,UPPER

€ 11.50

14

6227714200
ref: 14

RING

€ 1.50

15

6222614200
ref: 15

DUST SEAL,UPR

€ 7.50

16

6219114100
ref: 16

GUIDE,SPRING

€ 20.50

17

6219414100
ref: 17

GUIDE,REAR SHOCK ABSORBER SPRING

€ 18.50

18

0926910001
ref: 18

BEARING

€ 66.00

19

6222614100
ref: 19

DUST SEAL,LWR

€ 8.00

20

0910310039
ref: 20

BOLT

€ 6.50

21

0910310040
ref: 21

BOLT(10X54)

€ 5.50

22

0831931108
ref: 22

NUT

€ 3.00

23

6241114110
ref: 23
MODEL X

BRACKET,RESERVOIR TANK

€ 6.00

23

6241114111
ref: 23
MODEL Z

BRACKET,RESERVOIR TANK

€ 6.00

24

0110706128
ref: 24

BOLT

€ 2.00

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0832221068
ref: 26

WASHER

€ 2.00

27

6242314210
ref: 27

CUSHION,RESERVOIR TANK

€ 2.50

28

6242014210
ref: 28
MODEL X

BRACKET,RESERVOIR TANK

€ 25.50

28

6242014211
ref: 28
MODEL Z

BRACKET,RESERVOIR TANK

€ 25.50

29

0946200075
ref: 29

BAND

€ 8.50

30

0110706128
ref: 30
MODEL X

BOLT

€ 2.00

30

0110706168
ref: 30
MODEL Z

BOLT, UPPER

€ 3.00

31

0832121068
ref: 31

LOCK WASHER

€ 2.50

32

0832221068
ref: 32
MODEL X

WASHER

€ 2.00

32

0916006007
ref: 32
MODEL Z

WASHER

€ 2.00

33

0940406415
ref: 33

CLAMP

€ 3.00

34

0940720401
ref: 34
MODEL X

CLAMP

€ 4.50

34

0940716401
ref: 34
MODEL Z

CLAMP

€ 4.50

35

6221114110
ref: 35
OPT MODEL X

SPRING

€ 82.50

35

6221114310
ref: 35
OPT MODEL Z

SPRING

€ 82.50

35

6221114120
ref: 35
OPT MODEL X

SPRING

€ 82.50

35

6221114320
ref: 35
OPT MODEL Z

SPRING

€ 0.00

all assemblies
